Aluminum Extrusion Heat Sink vs Bonded Fin Heat Sink for High Power Cooling

As electronic equipment rapidly advances toward high-power, high-density, and miniaturized architectures, selecting the correct thermal management technology is critical to preventing component failure. For high power cooling, choose an aluminum extrusion heat sink for the best balance of mass production cost efficiency and structural durability, but select a bonded fin heat sink when extreme space constraints demand the highest possible fin density and surface area. Choosing the right passive cooling solution requires a comprehensive evaluation of your total system requirements, rather than focusing solely on theoretical maximum thermal performance. Let us explore the engineering trade-offs to help you finalize your thermal design.

1. Why Heat Sink Selection Matters for High Power Applications

The correct heat sink selection prevents thermal throttling and extends product lifespan by matching the cooling technology to the specific heat load, available installation space, and manufacturing volume of the application.

In high power electronic applications, heat management dictates system reliability. Semiconductors, power converters, and automotive electronics operate under massive electrical loads, generating concentrated thermal energy. If this heat is not rapidly dissipated into the surrounding environment, the component's internal junction temperature will exceed safe operating limits, leading to immediate performance degradation and eventual permanent failure.

Engineers are often faced with a critical choice: specify an aluminum extrusion heat sink or a bonded fin heat sink. Both are classified as high performance heat sinks designed to increase the surface area available for heat dissipation. However, their structural differences dictate completely different operational profiles. While thermal performance is the primary metric, a truly robust thermal management solution must also factor in the physical weight limitations of the final product, the mechanical stress the unit will endure, and the commercial viability of producing the heat sink at scale. Ignoring these factors leads to over-engineered designs that are too heavy, too fragile, or too expensive to manufacture.

• Decision Rule: If your application requires reliable passive cooling within a strict weight limit for mobile, aerospace, or automotive deployment, then an aluminum extrusion heat sink must be selected to minimize overall system weight while providing highly durable thermal dissipation.

2. Manufacturing Differences: Extrusion vs Bonded Assembly

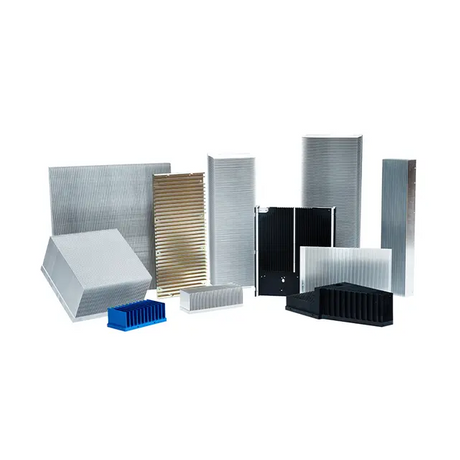

Aluminum extrusion uses immense hydraulic pressure to push AL6063 alloy through custom dies to create a continuous, unibody profile, whereas bonded fin heat sinks are assembled by individually attaching separate metal fins to a grooved base plate using thermal epoxy or brazing.

The Physics of Heat Sink Fabrication

The fundamental difference between these two technologies lies in their structural integrity. Kingka primarily utilizes AL6063 aluminum alloy for custom extrusion heat sinks. This specific material provides excellent thermal conductivity, exceptional extrusion performance, and highly predictable machining characteristics. Because the fins and the base are formed from a single, continuous piece of aluminum, there is zero thermal resistance between the heat source contact area and the cooling fins. The heat flows unimpeded.

Conversely, a bonded fin heat sink is an assembly-based manufacturing process. The base plate is typically CNC machined with precise grooves. Individual fins (which can be aluminum or copper) are slotted into these grooves and bonded using a high-strength thermal epoxy or metallurgical brazing. While this allows manufacturers to mix materials—such as combining a highly conductive copper base with lightweight aluminum fins—it introduces a microscopic thermal interface layer at the joint. If the bonding process is not perfectly executed, this joint can create a thermal bottleneck or become a point of mechanical failure under heavy vibration.

• Decision Rule: If the high power cooling solution will be subjected to high mechanical shock and continuous vibration (such as in railway transit or heavy industrial machinery), then a unibody aluminum extrusion heat sink must be selected to eliminate the catastrophic risk of individual fins vibrating loose from the base plate.

Table 1: Manufacturing Process and Structural Comparison

3. Thermal Performance Comparison: Surface Area and Airflow

Bonded fin heat sinks offer superior maximum thermal performance in highly restricted spaces due to their ultra-high fin density, while aluminum extrusions provide highly efficient, optimized airflow for standard industrial applications where space allows for wider fin spacing.

Fin Density and Airflow Dynamics

The ultimate cooling capacity of any passive cooling solution relies on the total wetted surface area exposed to the air. In an aluminum extrusion heat sink, the surface area is dictated by the extrusion ratio—the physical limit of how tall and how closely packed the fins can be before the steel extrusion die breaks under the hydraulic pressure. Standard extrusion limits prevent ultra-dense fin spacing, which naturally results in wider channels. These wider channels are highly beneficial for natural convection (passive cooling) because they allow buoyant hot air to escape without being trapped by boundary layer friction.

Bonded fin heat sinks completely bypass the mechanical limits of extrusion. Because the fins are stamped individually and inserted into a base, engineers can design extremely tall, ultra-thin fins packed tightly together. This provides a massive increase in heat dissipation area within a severely limited physical footprint, making it ideal for high heat flux applications. However, this high fin density creates immense flow resistance. A bonded fin heat sink almost always requires high-velocity forced air from a powerful fan to push air through the narrow gaps, adding noise, power consumption, and mechanical complexity to the system.

• Decision Rule: If the installation space has severely restricted airflow requiring a dedicated high static pressure fan to force air through a very tight envelope, then a bonded fin heat sink is the optimal choice to maximize the cooling surface area.

4. Cost and Production Considerations: Scaling for OEM Volumes

Aluminum extrusion heat sinks deliver vastly superior cost efficiency for high volume OEM production due to automated continuous profiling, whereas bonded fin heat sinks incur much higher labor and assembly costs, making them better suited for low volume, highly specialized projects.

Tooling Amortization and Production Efficiency

For B2B purchasing managers, the decision often comes down to the total cost of ownership at scale. Aluminum extrusion requires an upfront investment in a custom extrusion die. However, once that tooling is fabricated, the manufacturing efficiency is unmatched. Long, continuous profiles of the heat sink are extruded rapidly and then simply cross-cut to the required lengths. This highly automated process drastically reduces the per-unit cost, making extruded aluminum heat sinks the undisputed choice for medium to high volume production.

Bonded fin manufacturing is labor and machine intensive. Every single base plate must be individually CNC milled to create the fin grooves. Every single fin must be stamped, aligned, and chemically or thermally bonded to the base. This assembly complexity means that the per-unit cost remains high, regardless of the order volume. While tooling costs for bonded fins are generally lower since no custom extrusion die is needed, the slow production speed and high labor input make it cost-prohibitive for large-scale commercial deployments.

• Decision Rule: If your project demands a long-term commercial production run exceeding 5000 units per year with strict unit cost control targets, then investing in a custom die for an aluminum extrusion heat sink is financially mandatory to achieve scalable profitability.

Table 2: Cost and Production Viability Comparison

5. Application-Based Selection: Power Electronics to Automotive

Extrusion heat sinks dominate LED lighting, telecommunications, and industrial automation due to their rugged durability and large surface areas, while highly dense power electronics often require the designer to evaluate both technologies based on specific semiconductor packaging constraints.

Mapping Technology to Industry Requirements

B2B clients do not just buy aluminum; they buy an application-specific thermal management solution. Understanding how these technologies map to real-world industries is critical:

• Power Electronics and Inverters: Power converters, industrial controllers, and semiconductor modules generate high, concentrated heat. Aluminum extrusion heat sinks are universally applied here because they provide highly reliable passive cooling and robust structural support for heavy electrical components.

• Automotive Electronics and EVs: Vehicle control units and EV power management systems demand lightweight components that will survive decades of vibration. The unibody strength and low density of AL6063 aluminum extrusions make them the definitive choice over fragile bonded assemblies.

• LED Lighting: Industrial LED high-bays and commercial lighting systems require massive heat dissipation areas to protect the diodes. Extruded aluminum provides an attractive production cost and the ability to design aesthetic, radial fin profiles that maximize natural air cooling.

• Telecommunications and Data Processing: Outdoor 5G network equipment and remote computing systems operate continuously in harsh weather. Custom extrusion heat sinks act as both the weatherproof enclosure and the passive cooling engine, ensuring zero-maintenance reliability.

• Decision Rule: If the thermal management solution is designed for a high power industrial LED lighting array where natural passive convection is the only cooling method allowed, then an extruded aluminum heat sink with widely spaced fins is required to allow buoyant hot air to naturally rise and escape without restriction.

6. Complete Manufacturing Capability: From Profile Design to Finished Product

A professional aluminum heat sink manufacturer provides a complete end-to-end solution, integrating custom profile extrusion, CNC secondary machining, drilling, tapping, and surface finishing under one roof to guarantee strict batch consistency.

Beyond the Raw Profile

When OEM customers search for a custom heat sink supplier, they are looking to solve a complex supply chain problem. Purchasing raw extruded profiles from one vendor and shipping them to another for CNC machining and anodizing introduces massive risks regarding dimensional tolerances and quality control.

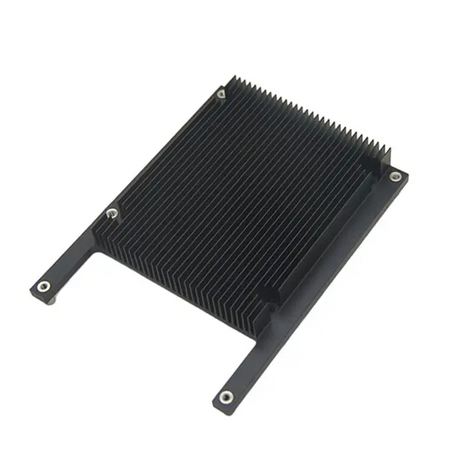

Kingka offers comprehensive manufacturing capabilities that span the entire product lifecycle. We provide deep engineering support to optimize fin structures for superior airflow, followed by precision extrusion. Once extruded, our in-house CNC centers handle all complex cutting, drilling, and tapping for mounting hardware. Finally, we apply industrial surface treatments, such as clear anodizing or black anodizing, which not only protect the heat sink from environmental corrosion but also slightly increase the thermal radiation emissivity of the aluminum.

• Decision Rule: If your OEM supply chain requires strict quality control and zero tolerance for dimensional variations in mounting holes, then you must partner with an aluminum heat sink manufacturer that performs all secondary CNC machining and surface finishing entirely in-house rather than outsourcing to third parties.

Conclusion

Choosing between an aluminum extrusion heat sink and a bonded fin heat sink dictates the thermal performance, structural durability, and commercial viability of high power electronic equipment. By evaluating the specific heat load alongside mechanical and budget constraints, engineers can deploy the most effective thermal management solution.

Key Technical Insights:

• Aluminum extrusions provide a continuous unibody structure, eliminating the thermal interface resistance and mechanical fragility found in bonded fin joints.

• Bonded fin heat sinks bypass extrusion limits to offer extreme fin densities, making them ideal for highly confined spaces, provided adequate forced airflow is available.

• The AL6063 alloy used in extrusion provides the optimal balance of high thermal conductivity, low weight, and excellent machinability.

Core Decision Logic:

• Evaluate Space and Airflow: Select bonded fins only if space is severely restricted and high static pressure fans are utilized; otherwise, rely on extrusion for superior natural convection.

• Assess Mechanical Stress: For automotive, railway, or heavy industrial applications subject to vibration, the unibody strength of an extrusion heat sink is absolutely mandatory.

• Optimize for OEM Production: For long-term projects exceeding medium volumes, the tooling investment in a custom extrusion die vastly outperforms the labor-intensive assembly costs of bonded fins.

Looking for a reliable aluminum extrusion heat sink manufacturer for your high-power cooling application? Kingka provides customized heat sink solutions, from extrusion profile design and CNC machining to surface finishing and mass production. Contact our engineering team today to optimize your thermal design.

Frequently Asked Questions (FAQs)

1. What is an aluminum extrusion heat sink?

An aluminum extrusion heat sink is a thermal management device created by pushing heated, pliable aluminum alloy through a precisely shaped steel die. This process forms a continuous, solid piece of metal with complex cooling fins, which is then cut to the required length and machined for electronic mounting.

2. What is a bonded fin heat sink?

A bonded fin heat sink is constructed by machining deep grooves into a metal base plate (usually aluminum or copper) and individually inserting separate metal fins into those grooves. The fins are then permanently secured using a high-strength thermal epoxy or a metallurgical brazing process.

3. Why is AL6063 the standard alloy for extrusion heat sinks?

AL6063 is widely used because it strikes the perfect balance between excellent thermal conductivity, structural strength, and malleability. Its physical properties allow it to flow smoothly through complex extrusion dies without breaking the tooling, while still providing highly efficient heat dissipation for electronics.

4. When should I choose a bonded fin heat sink over an extrusion?

You should specify a bonded fin heat sink when your electronic enclosure is extremely compact, the heat load is very high, and you have powerful fans to force air through tight spaces. Bonded fins allow for taller, thinner, and more densely packed fins than the extrusion process can physically produce.

5. Are aluminum extrusion heat sinks cheaper to manufacture?

Yes, for medium to high volume production. While there is an initial cost to fabricate the custom steel extrusion die, the automated process of extruding and cutting continuous aluminum profiles makes the per-unit cost drastically lower than the labor-intensive assembly required for bonded fin heat sinks.

6. Can extrusion heat sinks be used for passive cooling without fans?

Absolutely. Aluminum extrusion heat sinks are the premier choice for passive cooling (natural convection). Because their fins cannot be packed as densely as bonded fins, the wider fin spacing allows buoyant hot air to naturally rise and escape from the heat sink without requiring a mechanical fan.

7. Does the bonding agent in a bonded fin heat sink affect thermal performance?

Yes. Even high-quality thermal epoxies introduce a microscopic layer of thermal resistance between the fin and the base plate. While advanced brazing techniques minimize this issue, an extruded heat sink will always have superior structural thermal transfer because the base and fins are a single, continuous piece of metal.
