As heat densities in AI computing, electric vehicles, and power electronics surge, traditional air cooling is failing. The consequence of poor thermal management is severe system throttling, reduced component lifespan, or catastrophic hardware failure. The key to solving high-power dissipation challenges lies in selecting a custom assembled liquid cold plate optimized for your specific heat flux, flow rate, and mechanical constraints.
Transitioning to liquid cooling requires more than just buying a standard component; it demands a strategic partnership with an experienced manufacturer capable of integrating complex thermal technologies into a cohesive, reliable system. To ensure your procurement decision aligns with your engineering needs, we must break down the core variables of cold plate design and manufacturing.
Table of Contents
Evaluating the raw cooling capability is the foundational step in any liquid cooling project. Engineers must move beyond generic wattage ratings and analyze the specific thermal dynamics of their exact application environment.
To ensure stable operation, a custom assembled liquid cold plate must be engineered with a thermal resistance low enough to dissipate the system's maximum heat flux without exceeding the component's maximum allowable junction temperature.
In high-performance computing and semiconductor modules, heat is rarely distributed evenly across a surface. Hot spots dictate the performance bottleneck of the entire system. When designing a liquid cold plate for electronics cooling, we must calculate the required thermal resistance based on three plain-text variables: the maximum heat load, the maximum allowed component temperature (often referred to as T max), and the inlet coolant temperature (T in).
If the cold plate cannot transfer the heat rapidly enough into the working fluid, the boundary layer temperature spikes, leading to immediate thermal throttling. We mitigate this by engineering custom micro-channels directly beneath the highest heat flux zones to increase the wetted surface area and accelerate thermal transfer.
Decision Rule: If the localized heat flux of your electronic component exceeds 150 W/cm2, then an assembled cold plate with skived internal fins directly under the heat source is required to minimize thermal resistance and prevent localized overheating.
The base metal of your cold plate dictates its thermal conductivity, overall system weight, galvanic compatibility with the coolant loop, and ultimately, the unit cost. Making the wrong material choice can lead to structural failure or galvanic corrosion.
Aluminum is the standard choice for lightweight, cost-effective cold plates, while copper is mandatory for applications requiring maximum thermal conductivity and rapid heat spreading under concentrated thermal loads.
Selecting the correct material requires a deep understanding of the operating environment. When finalizing your design, determining whether a copper vs aluminum assembled liquid cold plate is better suited for your application requires balancing thermal conductivity against weight and budget constraints. Copper offers nearly double the thermal conductivity of aluminum, making it ideal for high-density AI accelerators, whereas aluminum is preferred in EV battery cooling where weight reduction is paramount. To better understand this trade-off, we advise engineers to map out their exact thermal budget and weight limits before choosing a material.
Furthermore, stainless steel is frequently utilized in medical devices and industrial automation where extreme corrosion resistance and compatibility with deionized water are non-negotiable, despite its lower thermal conductivity.
Decision Rule: If the application is an electric vehicle battery pack where overall vehicle weight directly impacts driving range, then aluminum is recommended, provided the internal channel geometry can be optimized to compensate for aluminum's lower thermal conductivity compared to copper.
Material | Thermal Conductivity (W/m·K) | Cost Impact | Production Complexity | Recommended Scenarios |
Aluminum (6061/6063) | 167 to 200 | Low to Medium | Low (Highly machinable) | Weight-sensitive EV systems, standard electronics cooling, aerospace applications. |
Copper (C11000) | 385 to 400 | High | Medium (Heavier, tool wear) | High heat flux AI servers, high-power semiconductor modules, compact thermal envelopes. |
Stainless Steel (304/316) | 15 to 16 | Medium | High (Hard to machine) | Medical devices, corrosive fluid environments, systems utilizing pure deionized water. |
The routing of the internal fluid channel determines how effectively heat is absorbed and removed from the system. A poorly designed fluid path will lead to stagnant fluid zones, excessive pressure drop, and highly uneven cooling across the electronic components.
Optimized internal channel designs must balance heat transfer surface area with acceptable pressure drop, ensuring the system pump can maintain the required coolant flow rate without cavitating.
The internal geometry—whether it utilizes copper tubes embedded in an aluminum plate, deep-drilled channels, or precision CNC-milled micro-channels—dictates the fluid flow regime. While turbulent flow significantly increases heat transfer efficiency by constantly mixing the coolant, it simultaneously increases the pressure drop across the entire system. Engineers must design the flow distribution using series or parallel fluid paths to ensure the coolant reaches all critical hot spots without overtaxing the system's pumping infrastructure.
Decision Rule: If the total calculated pressure drop across the liquid cold plate exceeds 0.5 bar at the required system flow rate, then the internal channel design must be reconfigured from a series path to a parallel flow distribution to reduce overall flow resistance.
The complexity of a modern assembled cold plate requires advanced manufacturing techniques. Choosing a supplier simply for their basic milling capabilities is insufficient; they must possess specialized joining, sealing, and structural technologies.
High-performance assembled liquid cold plates require specialized manufacturing processes, such as friction stir welding or vacuum brazing, to join complex internal structures without introducing thermal barriers or potential leak paths.

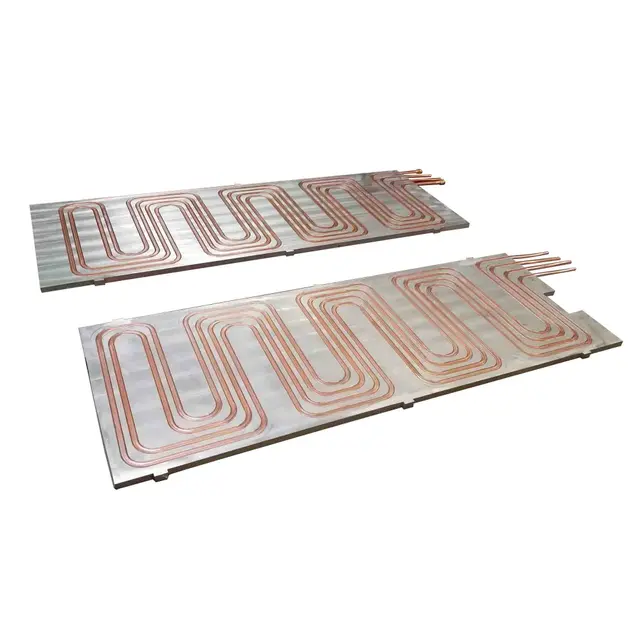

At KINGKA, we utilize various assembly processes depending on the specific thermal and mechanical requirements of the OEM project. For embedded tube liquid cold plates, precise CNC milling combined with hydraulic pressing and thermally conductive epoxy filling ensures secure tube-to-plate contact.
For hollow, high-performance designs, Friction Stir Welding (FSW) offers a solid-state joining process that eliminates porosity, prevents warping, and maintains the base material's thermal properties. Vacuum brazing is reserved for highly intricate, multi-layered cold plates with internal fin structures where FSW tools physically cannot reach.
Decision Rule: If the internal channels contain high-density, thin-walled micro-fins that cannot withstand the heavy mechanical stress of friction stir welding, then vacuum brazing is the recommended manufacturing process to ensure a homogeneous, leak-free seal without crushing the internal geometries.
Assembly Process | Primary Use Cases | Cost Impact | Sealing Reliability | Recommended Scenarios |
Embedded Tube (Copper/Stainless) | Large surface cooling, distributed heat | Low | High (Continuous tube) | Power electronics, large EV battery packs, cost-sensitive industrial motor drives. |
Friction Stir Welding (FSW) | High-pressure, hollow structural plates | Medium | Very High | Large AI servers, data center racks, electric vehicle motor controllers. |
Vacuum Brazing | Complex, multi-layer internal fin structures | High | Very High | Aerospace components, ultra-compact high-density semiconductor cooling. |
Epoxy Assembled Plates | Low pressure, rapid thermal prototyping | Low | Medium | R&D testing, low-pressure cooling loops, budget-restricted telecom equipment. |
Leakage in a liquid-cooled electronics system is a catastrophic failure mode that can destroy hundreds of thousands of dollars in hardware. The perceived risk of fluid leaks is often the primary barrier preventing enterprise organizations from adopting liquid thermal management.
Preventing leaks requires a combination of robust mechanical joining, structurally appropriate material selection, and stringent helium leak testing to ensure absolute fluid containment under continuous thermal cycling.
In industrial and data center environments, cold plates are subjected to continuous thermal cycling, which causes the expansion and contraction of the metals. If a cold plate relies solely on mechanical elastomer O-rings, these rubber seals can dry out or degrade over time, leading to micro-leaks.
For mission-critical infrastructure, metallurgical bonds formed by welding or brazing are infinitely superior to mechanical seals because they turn the cold plate into a single, unified piece of metal. Furthermore, the design must account for the operating fluid chemistry; utilizing standard aluminum in a high-pH coolant loop without proper internal passivation will lead to galvanic corrosion and an eventual fluid breach.
Decision Rule: If the assembled liquid cold plate is to be deployed in an enterprise data center where downtime costs thousands of dollars per minute, then all internal fluid joints must be metallurgically bonded via friction stir welding or vacuum brazing rather than relying on elastomer gaskets.
Standard, off-the-shelf cooling plates rarely fit the stringent spatial and mechanical constraints of modern OEM devices. True thermal management requires tailoring the physical footprint directly to the electronic architecture.
A professional manufacturer must provide full customization flexibility, including exact dimensional matching, specific fluid connection types, and the integration of secondary thermal technologies to create a complete, drop-in thermal solution.
B2B buyers are rarely looking for just a block of metal; they need a functioning system that integrates perfectly with their existing hardware. Customization involves specifying exact surface treatments, such as clear anodizing for wear resistance or electroless nickel plating for corrosion defense. It also includes integrating precision-machined mounting features and selecting appropriate fluid fittings (such as NPT, BSPP, or drip-free Quick Disconnects).
Complex applications often require combining liquid cooling with phase-change cooling. For example, embedding heat pipes into the cold plate can rapidly spread heat away from ultra-dense components before the heat transfers to the main liquid channel, preventing localized boiling.
Decision Rule: If the component layout features highly uneven heat distribution with multiple, widely spaced hot spots, then an assembled cold plate integrating embedded heat pipes is recommended to spread the heat laterally before it reaches the main liquid channels.
Quality control is the absolute bridge between a theoretical thermal design and a reliable physical product. A prototype that works perfectly in a laboratory means nothing if the manufacturer cannot guarantee that same consistency across a 10,000-unit mass production run.
A comprehensive quality control process must include rigorous dimensional inspection, 100 percent pressure decay testing, and thermal performance validation to ensure mass production consistency and field reliability.
The physical interface between the liquid cold plate and the electronic component is critical. Even a perfectly designed internal fluid channel will fail if the surface flatness of the cold plate is poor. Poor flatness forces assembly technicians to use excessively thick Thermal Interface Materials (TIM) to fill the macroscopic air gaps. Because TIM acts as a slight thermal insulator compared to direct metal contact, too much of it will bottleneck the system.
Professional manufacturers utilize Coordinate Measuring Machines (CMM) to verify surface flatness to the micron level. Additionally, every single production unit must undergo pressure decay testing and, for high-criticality applications, helium mass spectrometry leak testing to detect microscopic porosities in the welds.
Decision Rule: If the contact area surface flatness exceeds 0.05 millimeters per 100 millimeters of length, then the part must be re-machined or rejected, as the required increase in thermal paste thickness will negate the thermal performance benefits of the liquid cooling loop.
The technical maturity of your manufacturing partner directly impacts your project timeline, product safety, and overall commercial success. A supplier that only understands basic machining cannot properly guide an OEM through complex thermal fluid challenges.
Choosing a supplier with deep industry-specific experience ensures that your custom assembled liquid cold plate is engineered to meet the unique regulatory, environmental, and thermal standards of your specific sector.
Different industries have vastly different thermal priorities and regulatory standards that must be accounted for during the design phase:
Data Centers and High-Performance Computing: Require massive heat flux removal for AI accelerators and computing modules, demanding ultra-low thermal resistance and absolutely leak-proof reliability.
Electric Vehicles and New Energy: EV battery systems and motor controllers require lightweight, high-volume production capabilities where cost-efficiency, crash safety, and severe vibration resistance are paramount.
Power Electronics and Telecom: Semiconductor modules and outdoor network systems demand ruggedized designs that can withstand harsh environmental extremes, humidity, and highly variable thermal loads without maintenance.
Partnering with an OEM manufacturer like KINGKA, who has 15+ years of cross-industry manufacturing experience, means potential design flaws are caught early during the Design for Manufacturing (DFM) phase, preventing costly tooling revisions and delayed product launches.
Decision Rule: If your OEM project requires a rapid transition from prototyping to mass production under tight market deadlines, then selecting a supplier with fully integrated in-house CNC machining, welding, and thermal testing capabilities is essential to avoid third-party supply chain bottlenecks.
Procuring a custom assembled liquid cold plate is a critical engineering decision that dictates the performance, lifespan, and safety of high-power electronic systems. By evaluating suppliers based on engineering depth, manufacturing capability, and quality control processes rather than just unit price, organizations can mitigate operational risks and achieve superior thermal stability.
Key Technical Insights:
Thermal resistance must be calculated against specific localized heat fluxes, not just total system wattage.
Metallurgically bonded structures (such as FSW and Vacuum Brazing) offer vastly superior long-term reliability compared to mechanically sealed plates.
Surface flatness dictates thermal interface material thickness; poor machining will nullify the benefits of advanced fluid channel designs.
Core Decision Logic:
Evaluate Material First: Base your choice on the balance of thermal conductivity versus weight constraints and environmental compatibility.
Define Flow Parameters: Ensure the internal channel geometry supports the required fluid flow rate without exceeding the pumping system's maximum pressure drop.
Demand Absolute Verification: Insist on 100 percent leak testing and tight dimensional CMM reporting for any mass production run.
Need a custom assembled liquid cold plate for your thermal management project? Contact KINGKA for engineering support, prototype development, and customized cooling solutions. Our technical team is ready to review your thermal requirements and provide a comprehensive manufacturability analysis.
1. What exactly is an assembled liquid cold plate?
An assembled liquid cold plate is a custom thermal management device created by mechanically joining multiple components (such as a machined aluminum base, copper routing tubes, or milled top and bottom plates) using processes like friction stir welding, vacuum brazing, or high-strength epoxy. It is specifically designed to circulate cooling fluid and safely remove intense heat from high-power electronics.
2. How do I determine the correct coolant flow rate for my cold plate?
Flow rate is determined by calculating the total heat load of your electronics and the specific heat capacity of your chosen coolant fluid. Your thermal engineer must balance a flow rate that is high enough to absorb and carry away the heat without creating a pressure drop that exceeds your cooling system's pump capacity.
3. What is Friction Stir Welding (FSW) and why is it used in liquid cold plates?
Friction Stir Welding is an advanced, solid-state joining process that uses a rapidly rotating tool to generate intense friction, plasticizing the metal and fusing two halves of a cold plate together. It creates a highly reliable, incredibly strong, and completely leak-proof joint without actually melting the base material, preventing the warping associated with traditional welding.
4. Why is surface flatness so critical for the performance of a liquid cold plate?
The top surface of the cold plate must make intimate, flush contact with the heat-generating electronic component. Poor surface flatness creates microscopic air gaps and requires a thicker layer of Thermal Interface Material (TIM) to bridge those gaps. Because TIM has a much lower thermal conductivity than solid metal, a thick layer severely restricts heat transfer and causes the electronics to run hotter.
5. Can I use standard tap water as a coolant in my custom liquid cold plate?
No. Standard tap water contains minerals, chlorides, and biological impurities that will quickly cause scaling, galvanic corrosion, and biological growth. This will eventually clog the internal micro-channels and destroy the cold plate from the inside out. Always use a properly formulated industrial coolant, such as a water and glycol mixture with specific anti-corrosion inhibitors.
6. What is the difference between pressure decay testing and helium leak testing?
Pressure decay testing involves pressurizing the internal channels of the cold plate with compressed air and monitoring it for pressure drops over a set period, which indicates a standard leak. Helium leak testing is much more sensitive; it uses helium gas and a specialized mass spectrometer in a vacuum chamber to detect microscopic, atomic-level leaks that air testing might miss, offering the highest possible level of reliability assurance for mission-critical applications.
