Uncontrolled heat destroys electronic components and severely degrades system reliability across all modern industrial applications. Aluminum extrusion heat sinks provide the optimal passive cooling solution for these industries by delivering a critical balance of lightweight structural integrity, high thermal conductivity, and cost-effective mass production capabilities. Selecting the right custom extruded profile ensures component longevity across multiple sectors without the complexity, maintenance, and expense of active liquid cooling loops.
For engineers and purchasing managers navigating thermal constraints, standard off-the-shelf heat sinks rarely fit the tight spatial and performance requirements of modern industrial designs. Evaluating custom extrusion capabilities—from fin geometry optimization to CNC secondary machining—is essential to secure a reliable, long-term thermal management supply chain.
Table of Contents

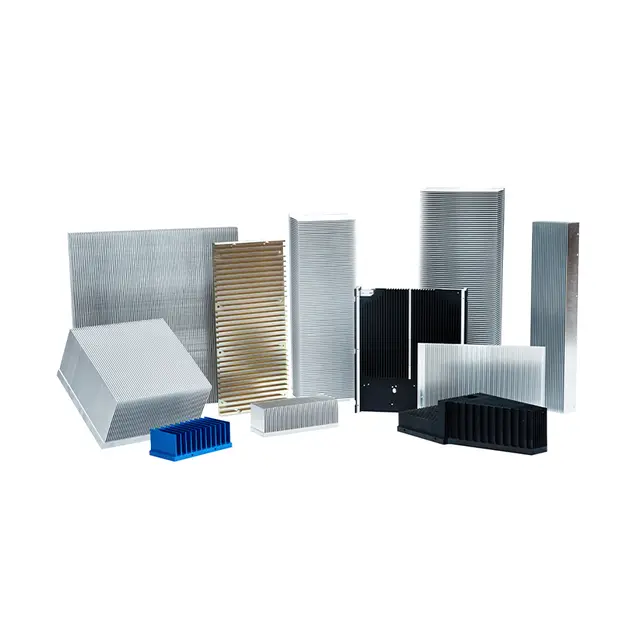

AL6063 aluminum alloy is the industry standard for custom extrusion heat sinks because it perfectly balances a high thermal conductivity with excellent malleability, allowing manufacturers to press complex, high-density fin structures without rapidly destroying the extrusion tooling.
The manufacturing process begins by heating an aluminum billet to a pliable state and forcing it through a custom-machined steel die under immense hydraulic pressure. This creates a continuous profile with precise fin structures that drastically increase the heat dissipation surface area. After extrusion, the profiles are cut to length and subjected to secondary CNC machining (drilling, tapping, face-milling) and surface treatments like anodizing. This combination of primary forming and secondary machining reduces overall production waste compared to milling a heat sink from a solid block.
Decision Rule: If the thermal load requires passive cooling with intricate, densely packed fin geometries, then AL6063 aluminum must be selected over stronger 7000-series structural alloys to prevent excessive extrusion die wear and maintain high production yields.
While extrusion is highly efficient for passive and forced-air cooling, extreme localized thermal loads sometimes necessitate a shift to liquid cooling architectures. To better understand when to transition from air to liquid, engineers must evaluate base metal dynamics. Deciding between a copper vs aluminum assembled liquid cold plate: which material should you choose depends entirely on balancing maximum thermal conductivity against strict weight limits and system budgets for high heat flux applications.
Power conversion and storage infrastructure require massive surface areas for natural convection to dissipate concentrated heat spikes continuously, often without relying on failure-prone mechanical fans.
Extruded aluminum provides the necessary thermal mass and large external surface area to absorb rapid thermal transients and radiate heat passively in harsh outdoor environments.
Decision Rule: If the power inverter operates in a remote, dusty outdoor environment, then a wide-spaced fin extrusion profile is strictly recommended to prevent debris accumulation and maintain natural convection airflow over time.
Power electronics components, such as insulated-gate bipolar transistors (IGBTs) and thyristors, generate immense localized heat. Extrusions with exceptionally thick solid bases are required here to provide essential lateral heat spreading before the thermal energy moves up into the cooling fins.
Solar inverters require heavy-duty, weather-resistant extruded profiles. Because these units operate in direct sunlight and harsh weather, they rely purely on natural convection. The aluminum extrusion is typically thick-finned and heavily anodized to survive decades outdoors without degrading.
Commercial and grid-scale battery banks utilize wide extruded aluminum plates to maintain uniform cell temperatures during rapid charging and discharging cycles. The extruded plates often serve a dual purpose as both the thermal management system and the structural mounting frame for the battery modules.
DC to AC conversion creates substantial thermal waste. Custom extruded heat sinks are often designed to form the actual exterior structural chassis of the inverter, turning the entire housing into a giant passive heat sink that dissipates heat directly into the ambient air.
High-current switching in industrial motor controllers causes severe thermal transients. Thick-finned extrusions prevent the sensitive controller logic from thermal throttling, ensuring that factory conveyor belts and heavy machinery do not unexpectedly shut down due to overheating.
Enclosed industrial control cabinets trap heat generated by internal electronics. Engineers use extruded heat exchangers mounted flush on the exterior panels to transfer internal cabinet heat to the outside air passively, maintaining the IP65 waterproof rating of the enclosure.
Consumer electronics and commercial hardware require precision, low-profile extrusion heat sinks to manage semiconductor heat within strictly confined mechanical enclosures.
Custom aluminum extrusions can be CNC cross-cut into dense pin-fin arrays to maximize the wetted surface area for tiny internal micro-blowers, ensuring processors maintain peak clock speeds in ultra-thin devices.
Decision Rule: If the electronic device enclosure thickness is under 15 millimeters, then the extrusion heat sink must feature a solid base thickness of at least 2 millimeters to ensure adequate lateral heat spreading before forced airflow is applied.
Audio amplifiers, home theater systems, and gaming consoles use custom extrusions to cool audio processing chips and internal power supplies silently, preventing fan noise from ruining the consumer acoustic experience.
Desktop motherboards utilize small, customized extruded blocks on Voltage Regulator Modules (VRMs) and chipsets. These prevent power delivery components from overheating during heavy CPU or GPU loads, ensuring system stability during gaming or rendering.
Wafer testing and fabrication machines use highly polished, custom-machined extruded plates to maintain exact ambient thermal baselines. The extrusions must be perfectly flat to ensure uniform temperature distribution across the silicon wafers during manufacturing.
High-brightness commercial digital signage and outdoor displays use large extrusions on the rear panel to dissipate backlight LED heat. This prevents the liquid crystal displays from developing black thermal spots due to prolonged exposure to intense internal temperatures.
Smart home hubs and IoT gateways often utilize their own structural aluminum housing as a passive extruded heat sink. This eliminates the need for internal fans, allowing the devices to remain completely silent and maintenance-free in residential settings.
Point-of-sale systems and commercial ticketing kiosks use fanless extruded designs. This passive cooling approach is vital to prevent the intake of dust, lint, and debris found in retail environments, thereby maintaining long-term operational uptime.
As computing density scales into the realm of enterprise AI accelerators, traditional extruded aluminum eventually reaches its physical thermal limit. In these extreme heat flux scenarios, organizations must evaluate the 8 key factors to consider before buying a custom assembled liquid cold plate, focusing specifically on internal fluid channel optimization, absolute leakage prevention, and advanced manufacturing processes to manage thermal densities that passive air cooling simply cannot resolve.
E-mobility applications demand custom aluminum extrusions because they deliver high thermal performance while resisting intense mechanical vibration, reducing vehicle weight, and surviving corrosive road environments.
Aluminum extrusion provides the highest strength-to-weight ratio for thermal components, which is absolutely crucial for extending electric vehicle driving ranges and ensuring transportation electronics survive continuous shock loads.
Decision Rule: If the extruded heat sink is utilized in an under-carriage electric vehicle component, then a hard-anodized surface treatment of at least 15 microns must be applied to prevent severe galvanic corrosion from road salt and moisture.
Engine Control Units (ECUs) are often potted inside ruggedized, extruded aluminum housings. The extrusion dissipates heat from the internal processors while simultaneously acting as an impenetrable barrier against engine bay moisture, oil, and extreme vibrations.
EV motor housings frequently utilize large, circular extruded aluminum profiles with external cooling fins. This geometry manages stator heat effectively while shedding excess weight that would otherwise reduce the vehicle's maximum driving range.
The critical electronic boards that balance EV battery cells are bolted directly to lightweight extruded rails. These extrusions provide continuous cooling to the BMS components while maintaining strict dielectric isolation requirements within the high-voltage pack.
DC fast chargers utilize massive internal extruded fin arrays to cool the high-voltage rectifiers during 350kW rapid charging sessions. These extrusions are often paired with high-velocity industrial fans to remove heat instantly during peak power delivery.
Avionics bays require highly customized, exceptionally lightweight extrusions to cool flight computers in low-density, high-altitude atmospheric conditions. Every gram of weight is scrutinized, making aluminum the only viable material choice over heavier metals.
Train traction converters and braking systems use heavy, shock-resistant extrusions mounted on the exterior of the train cars. These heat sinks rely entirely on the train's rapid forward motion to drive cooling air violently through the fin channels.
Continuous-operation automation systems and modern 5G networks rely on massive extruded fin arrays to ensure passive, zero-maintenance thermal stability across wildly fluctuating ambient outdoor temperatures.
Telecom equipment is installed high on cellular towers where fan maintenance is impossible; therefore, the thermal design relies entirely on highly optimized custom extrusions that leverage natural wind and thermodynamics.
Decision Rule: If a 5G base station is deployed in a high-solar-load outdoor environment, then the extrusion profile must incorporate serrated or wavy fin structures to artificially maximize the radiation surface area alongside natural convection.
Remote Radio Heads (RRH) use deep, heavy extruded chassis to passively cool high-power radio frequency amplifiers. The aluminum extrusions are designed to survive ice, rain, and direct summer sunlight without ever failing.
5G base stations process massive data loads, generating intense heat. Their exterior enclosures are entirely composed of custom extruded fins optimized for multidirectional air currents, ensuring thermal stability regardless of wind direction.
Programmable Logic Controller (PLC) modules and robotic control systems use DIN-rail mounted extruded heat sinks for reliable, fanless operation on the factory floor, preventing the ingestion of conductive metallic dust into the electronics.
Servo motor drivers housed within articulating robotic arm joints rely on highly compact, custom-machined extrusions to dissipate heat rapidly. This prevents the thermal expansion of precision gears, which would ruin the robot's positional accuracy.
Variable Frequency Drives (VFDs) generate significant heat during power modulation. They use forced-air extruded heat sinks with tightly packed fins to keep the power electronics within safe limits during continuous heavy-duty manufacturing operations.
Remote sensor hubs and weather stations utilize weather-proof extruded enclosures that double as passive thermal dissipators. This allows sensitive environmental sensors to operate without internal temperature drift ruining the data.
Bespoke manufacturing machinery relies on cut-to-length extrusion profiles for cost-effective, adaptable thermal management. Machine builders can buy long lengths of extruded heat sinks and cut them to the exact size needed for custom electronic panels.
Precision lighting and medical diagnostics utilize extruded aluminum because it offers highly stable, predictable thermal resistance that prevents sensitive optical or sensing component degradation.
In medical and optical fields, even minor thermal fluctuations can shift laser frequencies, alter LED color temperatures, or introduce visual noise into diagnostic imaging, making reliable extruded heat sinks a critical design requirement.
Decision Rule: If the application is a high-power industrial LED lighting array mounted horizontally on a ceiling, then a radial (circular) extrusion profile is recommended over a linear profile to allow multi-directional airflow and prevent heat pooling above the diode.
High-bay industrial lighting and stadium floodlights utilize massive radial extrusions to pull heat away from the LED diode junction. Keeping the junction temperature low is the only way to ensure the bulb achieves its rated lifespan of 50,000+ hours.
MRI power supplies and ultrasound processing units require non-magnetic AL6063 extrusions to dissipate heat. Because aluminum is non-ferrous, it provides excellent thermal management without interfering with the highly sensitive magnetic imaging fields of the hospital equipment.
Industrial metal-cutting lasers and aesthetic medical lasers use precision-milled extrusions to stabilize the optics chamber temperature. Thermal expansion in the laser housing would misalign the mirrors, so rapid, passive heat dissipation is mandatory.
Laboratory power supplies, oscilloscopes, and spectrum analyzers use side-panel extrusions to maintain strict internal thermal baselines. Stable temperatures are required to ensure the testing equipment remains in accurate calibration during continuous use.
Outdoor PTZ (Pan-Tilt-Zoom) security cameras use their extruded aluminum bodies to wick away heat from high-definition imaging sensors and infrared illuminators. This prevents sensor thermal noise, ensuring clear surveillance footage even on hot summer days.
The true cooling capacity of an aluminum extrusion is not just about its overall size; it is entirely dictated by the precise engineering ratio between fin height, fin thickness, and fin spacing relative to the available airflow.
A common design mistake is packing too many fins into a small space. While this increases the theoretical surface area, it can restrict airflow so severely that the heat sink acts as an insulating block. Engineers must calculate the pressure drop across the fins based on whether the system uses natural convection (buoyancy-driven air) or forced convection (fan-driven air).
Decision Rule: If the cooling system relies entirely on natural convection without a cooling fan, then the internal fin spacing must be strictly greater than 6 millimeters to prevent boundary layer interference and air stagnation between the fins.
Design Parameter | Impact on Natural Convection (No Fan) | Impact on Forced Convection (With Fan) | Manufacturing Constraint (Extrusion Die) |
Fin Spacing (Gap) | Needs wide spacing (> 6mm) for air to rise. | Can be narrow (< 3mm) to maximize surface area. | Extremely tight spacing increases die breakage risk. |
Fin Thickness | Can be thinner at the tips. | Needs structural rigidity against high-speed airflow. | Too thin (< 1mm) prevents proper aluminum flow in the die. |
Fin Height | Taller fins heavily improve cooling efficiency. | Taller fins increase backpressure on the fan. | High extrusion ratio (Height-to-Gap) significantly increases tooling costs. |
Base Thickness | Crucial for lateral heat spreading. | Crucial for lateral heat spreading. | Must be proportional to fin height to prevent profile warping during cooling. |
High-volume B2B thermal projects require an OEM manufacturer capable of integrating custom die extrusion, precision CNC machining, and automated surface treatment under one roof to control costs and eliminate supply chain fragmentation.
Industrial buyers do not purchase raw aluminum profiles; they purchase finished thermal solutions. The primary financial advantage of an extruded heat sink is realized in mass production. While a custom extrusion die requires an initial upfront tooling investment, the subsequent per-unit cost drops dramatically compared to CNC machining a heat sink out of a solid block of metal.
Decision Rule: If the projected production volume exceeds 1,000 units per year, then investing in a custom extrusion die is financially recommended over CNC machining a solid aluminum block, as the tooling amortization will rapidly reduce the per-part cost within the first production run.
Manufacturing Process | Upfront Tooling Cost | Per-Unit Cost (High Volume) | Production Speed | Ideal Application Scenario |
Custom Aluminum Extrusion | Medium (Die creation required) | Very Low | Extremely Fast | OEM mass production, continuous supply chains, telecommunications, EV components. |
Full CNC Machining (Solid Block) | None (Standard fixtures) | Very High (Material waste, machine time) | Slow | Low-volume rapid prototyping, extreme precision aerospace parts. |
Aluminum extrusion heat sinks are the backbone of modern industrial thermal management, offering unmatched versatility across 30 different high-growth industries. By understanding the intricate balance between material properties, fin geometry, and manufacturing capabilities, engineers can specify highly reliable, cost-effective passive cooling solutions.
Key Technical Insights:
AL6063 aluminum provides the optimal balance of high thermal conductivity (200 W/m K) and required malleability for complex extrusion dies.
Fin spacing is the most critical thermal variable; tight fins require high-pressure forced air, while wide fins are mandatory for natural convection outdoor environments.
Extrusion drastically reduces material waste and per-unit costs compared to pure CNC machining, making it the only logical choice for OEM mass production.
Core Decision Logic:
Analyze the Airflow First: Base your fin pitch and height entirely on whether the system uses a cooling fan or relies on passive buoyancy.
Match Surface Treatment to Environment: Always specify thick anodizing for outdoor telecom, solar, or automotive applications to prevent galvanic and environmental corrosion.
Leverage OEM Capabilities: Partner with a manufacturer who handles the raw extrusion, secondary CNC tapping, and surface finishing entirely in-house to guarantee batch-to-batch quality control.
Need a custom aluminum extrusion heat sink for your industry? KINGKA provides customized thermal solutions from initial extrusion profile design to precision-machined finished components. Contact our engineering team today to optimize your passive cooling project for mass production.
1. What is an aluminum extrusion heat sink?
It is a passive thermal management device created by pushing heated aluminum alloy through a shaped steel die (like toothpaste through a tube) to create a continuous profile with complex cooling fins. This profile is then cut to size and CNC machined for specific electronic applications.
2. Why is AL6063 the most common alloy for extruded heat sinks?
AL6063 is universally favored because it offers excellent thermal conductivity (approximately 200 W/m K), predictable mechanical strength, and superb malleability. This allows manufacturers to extrude very thin, complex fin structures without breaking the expensive steel extrusion dies under pressure.
3. What is the extrusion ratio in heat sink design?
The extrusion ratio refers to the proportion between the fin's height and the gap spacing between two fins. A high extrusion ratio (such as very tall fins packed closely together) provides massive surface area for cooling but is significantly harder and more expensive to manufacture, requiring specialized tooling.
4. Can an extruded heat sink be used without a cooling fan?
Yes, they are highly effective for passive cooling via natural convection. However, for a fanless design to work, the fins must be spaced far enough apart (typically wider than 6 millimeters) so that the naturally rising hot air does not get trapped in a boundary layer between the fins.
5. How do I transition from a prototype to mass production for my heat sink?
For initial prototypes, heat sinks are often CNC machined from a solid block of aluminum. Once the thermal design is validated in the lab, you pay a one-time fee to cut a custom extrusion die. From that point on, the manufacturer extrudes the profile in long lengths, drastically reducing the cost per unit for mass production.
6. Do custom extruded heat sinks require surface treatments?
While raw aluminum naturally resists basic rust, industrial heat sinks should always be clear or black anodized. Anodizing hardens the surface against scratches, prevents galvanic corrosion in harsh environments (like automotive or marine applications), and slightly improves the thermal radiation emissivity of the metal.
