In high-power electronics, thermal management is rarely a "one-size-fits-all" problem. A manufacturing process that works for an LED driver will fail catastrophically in a high-density AI server. As power densities rise, the challenge for product designers is not just calculating thermal resistance, but selecting a manufacturing method that balances performance, weight, and production cost.
Should you use extrusion for cost savings? Skiving for density? Or heat pipes for rapid spreading?
As a leading custom heat sink manufacturer in China, Kingka Tech has spent over 13 years answering these questions. With 300+ custom designs completed and over 4000+ thermal management components manufactured, we understand that the "best" heat sink is one that meets your thermal goals without breaking your manufacturing budget.
Below, we provide a detailed engineering guide to selecting the right heat sink architecture for your application.
The Foundation: Why Thermal Analysis Comes Before Manufacturing
Extrusion Heat Sinks: The Cost-Effective Standard for Volume
Bonded Fin Heat Sinks: Solving the High-Power Industrial Challenge
From CNC Precision to Mass Production: Ensuring Manufacturability
Before we cut metal, we must simulate the airflow.
Many procurement managers approach us with a specific drawing, but without a thermal validation. In high-power applications (such as servers or new energy vehicles), skipping the analysis phase is a risk. Kingka Tech provides a one-stop service that begins with thermal analysis and simulation.
Our engineering team evaluates:
Heat Load: Total TDP (Thermal Design Power) of the component.
Airflow: CFM and static pressure available in the chassis.
Space Constraints: The XYZ volume available.
By running CFD (Computational Fluid Dynamics) simulations early, we can determine if a simple aluminum heat sink is sufficient or if a more complex copper-hybrid solution is required. This prevents costly tooling changes later in the development cycle.
Copper is not always the answer.
While material selection seems binary—Aluminum vs. Copper—the engineering reality is nuanced.
Aluminum Alloys (e.g., AL6063): The industry workhorse. It is lightweight, cost-effective, and easy to machine or extrude. It is ideal for automotive and LED applications where weight reduction is critical.
Copper (e.g., C1100): Offers superior thermal conductivity (~398 W/m·K vs ~200 W/m·K for Aluminum) and excellent corrosion resistance. However, it is heavier and more expensive.
Kingka Tech’s Approach: We often recommend hybrid designs. For example, using a copper base to handle the immediate heat flux from the chip, integrated with lightweight aluminum fins for dissipation. This leverages the best properties of both materials.
Unsure which alloy suits your environment? Send us your specs for a material recommendation.
When is extrusion the right choice?

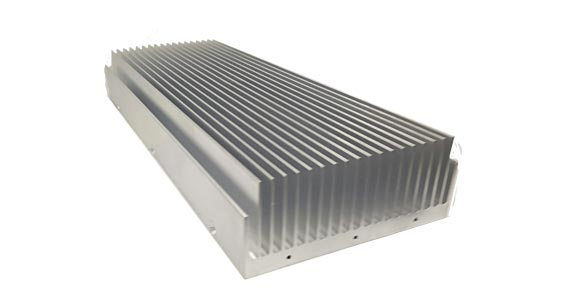

Extrusion Heat Sinks are created by pushing hot metal through a die. This is the most common process for mid-range power applications because it offers the lowest cost per unit in high volumes.
Best For: LED lighting, standard power supplies, and auxiliary automotive cooling.
Limitation: The "Fin Aspect Ratio" (height-to-gap) is limited. You cannot achieve extremely dense fins with extrusion.
Our Capability: Kingka Tech utilizes precision extrusion followed by CNC machining to add mounting holes and interface features, delivering a finished component ready for assembly.
How do you cool a server blade when you only have 1U of height?
In server and telecom applications, space is the enemy. Extrusion fins are often too thick and spaced too far apart to provide enough surface area. The solution is the Skived Fin Heat Sink.
The Process: A precision blade slices thin layers of metal from a solid block and bends them up to form fins.
The Advantage:
High Density: We can achieve very thin fins (down to 0.2mm) with tight spacing.
Monolithic Structure: Since the fins are part of the base, there is zero thermal resistance at the interface.
Result: Maximum heat dissipation per cubic inch. This is the preferred method for high-performance computing cooling.
What if you need fins that are 100mm tall?
For high-power inverters, renewable energy systems, or large industrial drives, you need massive surface area. Neither extrusion (limited size) nor skiving (limited height) works well here.
Bonded Fin Heat Sinks involve manufacturing the base and fins separately, then attaching them using thermal epoxy or swaging (mechanical locking).
Flexibility: This allows for mixing materials (e.g., Copper base + Aluminum fins) and creating fins with very high aspect ratios suitable for forced convection cooling.
Kingka Experience: We have successfully deployed bonded fin solutions for new energy clients requiring heat dissipation for kW-level loads.
How do you move heat away from a concentrated hotspot?
Sometimes, the heat source is small, but the heat sink is large. The challenge is "Spreading Resistance"—getting the heat to the edges of the fins.
Heat Pipe Thermal Modules are the solution.
Mechanism: Heat pipes use phase-change physics to transfer heat hundreds of times faster than solid copper.
Integration: Kingka Tech integrates heat pipes into aluminum or copper bases, distributing the heat evenly across the entire fin stack. This is critical for laptop, projector, and high-end LED cooling where the heat source is highly localized.
Do you have a concentrated hotspot issue? Let our engineers simulate a heat pipe layout for you.
A great design is useless if it cannot be manufactured consistently.
At Kingka Tech, our 13 years of experience translates into Design for Manufacturability (DFM). We employ a range of processes—CNC precision machining, forging, casting, and stamping—to ensure that your heat sink is not just thermally efficient, but also structurally sound and cost-effective to produce.
Whether it is a complex prototype requiring 5-axis CNC machining or a mass-produced stamped part, our engineering team optimizes the design to reduce cycle time and waste.
Selecting the right heat sink is a balance of physics, geometry, and economics.
Need low cost and high volume? Choose Extrusion.
Need maximum performance in a small space? Choose Skived Fins.
Need to cool a massive industrial load? Choose Bonded Fins.
Need to eliminate hotspots? Integrate Heat Pipes.
Kingka Tech is more than a manufacturer; we are your thermal engineering partner. With a track record of serving the automotive, server, and new energy sectors, we provide the one-stop service you need—from initial thermal simulation to final testing.
