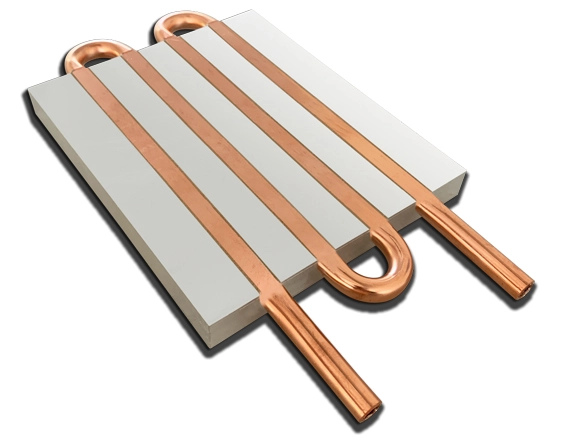

As the power density of modern electronics continues to surge, industries relying on insulated-gate bipolar transistors (IGBTs), power converters, and industrial power supplies are facing a critical engineering challenge. The massive amount of heat generated during high-frequency, high-current operations can no longer be managed by traditional heat sinks and fans. In these demanding environments, excess heat does not just reduce efficiency; it leads to rapid component degradation and catastrophic system failure.
To maintain continuous, stable operation, engineering teams are transitioning to advanced liquid cooling. However, for power modules, simply running liquid through a metal block is not enough. The system requires a highly engineered component capable of managing concentrated thermal loads, preventing leaks over years of operation, and fitting into increasingly compact spaces. This is where a vacuum brazed liquid cold plate for power electronics cooling becomes an essential structural investment.
This comprehensive guide explores the unique thermal behavior of high-power modules, why vacuum brazing is the preferred manufacturing technology to protect them, and how customized engineering ensures the long-term reliability of your entire electronic system.
Table of Contents
For decades, air cooling was the standard for industrial power systems. Extruded aluminum heat sinks and high-RPM fans were sufficient to keep components within their operational temperature limits. However, the landscape of high power electronics thermal management has fundamentally shifted.
Today’s power conversion equipment, electric vehicle (EV) inverters, and energy storage systems are designed to process massive amounts of electrical current within a very small physical footprint. This high-density architecture creates a thermal bottleneck. Traditional air cooling relies on the ambient air's low heat capacity, meaning it requires massive surface areas and high airflow volumes to be effective. As equipment becomes more compact, there simply is not enough physical space inside the chassis to accommodate the giant aluminum fins required to dissipate kilowatts of heat.
When an air-cooled system cannot keep up, the electronic components experience a rapid temperature rise. This reduces the switching efficiency of the power modules and significantly shortens their lifespan. To break through this physical limitation, engineers must adopt a medium with a much higher volumetric heat capacity: liquid. By utilizing a power module liquid cooling approach, heat is absorbed directly at the source and transported away efficiently, allowing the equipment to maintain a compact footprint while safely processing higher electrical loads.
Transitioning to liquid cooling solves the volume problem, but cooling an IGBT module requires a specific approach. When designing a thermal management solution for power electronics, engineers must understand that heat is not generated evenly across the device.
IGBT modules and high-power semiconductors have distinct internal architectures. During operation, specific chips within the module carry the brunt of the electrical load. This results in severe, highly localized hotspots. If you place a generic cooling plate beneath an IGBT, the liquid might flow efficiently through the center, but the peripheral hotspots could remain dangerously uncooled.
Therefore, an IGBT liquid cooling solution must be highly targeted. The cooling system must be designed in direct response to the thermal map of the specific power module. The cooling fluid needs to be routed precisely under the highest heat-generating areas to ensure rapid thermal transfer. A generic, off-the-shelf cold plate cannot provide this level of precision, which leads engineers to seek highly customizable manufacturing technologies that can support complex internal geometries.
To achieve the precise fluid routing required for localized hotspots, manufacturers utilize vacuum brazing. A vacuum brazed cold plate is constructed by taking multiple layers of precision-machined metal (usually aluminum or copper) and bonding them together in a high-temperature, oxygen-free vacuum furnace.
This process offers a distinct advantage over standard extrusion or mechanical drilling. Because the internal channels are machined into flat plates before they are bonded, engineers have almost total freedom over the internal geometry. They can design intricate, winding micro-channels, dense fin structures, and specific fluid distribution paths that directly mirror the hotspot layout of the IGBT module above it.
When the assembly is heated in the vacuum furnace, a filler metal melts and flows via capillary action, bonding the layers together seamlessly. This creates a highly integrated structure. By allowing the coolant to flow closer to the heat source and expanding the internal surface area for heat exchange, a liquid cooling plate for IGBT modules manufactured via vacuum brazing drastically reduces thermal resistance, ensuring the components remain within their safe operating temperature range.
While thermal performance is the primary goal, safety and reliability are the primary concerns for procurement and engineering teams. In a high-voltage industrial environment, a coolant leak is not just an inconvenience; it is a critical safety hazard that can destroy expensive equipment and cause severe operational downtime.
Power electronics operate under continuous stress. A liquid cooling system faces relentless temperature cycling (heating up under load and cooling down when idle), fluid pressure fluctuations, and material thermal expansion. If a cold plate is assembled using traditional mechanical fasteners, rubber O-rings, or localized perimeter welding, these continuous stresses will eventually cause the joints to fatigue, creating a pathway for leakage.
This is the hidden value of vacuum brazing. Because the bonding occurs in a vacuum, there is no oxidation, which means the process does not require chemical fluxes. This "flux-free" bonding ensures the internal channels remain clean, preventing internal corrosion. More importantly, the metallurgical bond covers the entire contact surface of the plates, not just the edges. This creates a solid, unified structure that effectively eliminates weak points, drastically reducing the risk of long-term leakage. For B2B clients, this reliable sealing performance translates directly into lower maintenance costs and higher system uptime.
Understanding the benefits of vacuum brazing is only half the equation; applying it correctly requires deep engineering expertise. A high performance liquid cooling system must balance excellent heat extraction with efficient fluid dynamics.
If an engineer designs highly complex, narrow internal channels to target an IGBT hotspot, they might successfully lower the temperature. However, narrow channels create significant fluid resistance, known as pressure drop. A high pressure drop forces the system's external pump to work harder, consuming more energy and potentially reducing the overall flow rate.
Therefore, optimal cold plate design is a balancing act between thermal resistance and pressure drop. A professional custom liquid cold plate manufacturer like Kingka supports this process by utilizing Computational Fluid Dynamics (CFD) simulations. Before any metal is cut, CFD analysis allows engineers to visualize the fluid flow, adjust channel widths, optimize inlet and outlet positions, and ensure the coolant distributes evenly across the plate. This custom engineering ensures the final product provides maximum thermal relief without overwhelming the system's pumping infrastructure.
Engineering Parameter | Vacuum Brazed Liquid Cold Plate | Standard Extruded Cold Plate | Tube-in-Plate Assembly |
Hotspot Targeting Capability | Excellent (Custom 3D routing) | Poor (Linear flow only) | Moderate (Dependent on tube bending) |
Sealing Reliability | Very High (Integrated molecular bond) | High (Solid block) | Moderate (Mechanical joints can degrade) |
Internal Flow Complexity | High (Supports micro-fins & split flows) | Low (Straight channels only) | Low (Limited by tube diameter) |
Overall Thermal Resistance | Very Low | Moderate | Moderate to High |
Suitability for High Power Density | Optimal | Limited | Limited |
To understand how these engineering principles translate into business value, we can examine how vacuum brazed solutions are applied in demanding industrial sectors.
Case 1: Industrial Power Supply Optimization
A manufacturer of industrial control equipment utilized high-power IGBT modules that were experiencing thermal throttling during continuous operation. The existing air-cooled heat sinks were too large and failed to keep the core temperature stable. By partnering with a thermal expert to develop a custom vacuum brazed cold plate, the manufacturer completely redesigned the thermal interface. The new plate featured specific flow paths that matched the IGBT layout, significantly improving heat exchange efficiency. This upgrade not only reduced the localized hotspots but also allowed the manufacturer to shrink the overall size of the power conversion equipment.
Case 2: EV Power Electronics Upgrade
In the renewable energy sector, electric vehicle (EV) inverters and energy storage systems must endure high currents, high-frequency operation, and severe temperature cycling. A generic cooling solution could not handle the dynamic loads of an EV charging system. By implementing a vacuum brazed cold plate, the engineering team secured a leak-resistant structure that provided stable cooling capacity despite the harsh operating environment. This enhanced the reliability of the inverter, supporting the high power density design required for modern EV infrastructure.
For B2B buyers, selecting a supplier is about minimizing risk. It is not enough for a supplier to promise a high-quality product; they must prove that the design works and that it can be manufactured consistently.
The transition from a theoretical design to a reliable mass-produced component requires rigorous engineering validation. A reputable manufacturer will support the development process with prototyping and comprehensive testing. This includes:
Thermal Performance Validation: Testing the prototype under simulated heat loads to ensure it matches the CFD predictions.
Pressure and Leak Testing: Subjecting the cold plate to pressures well beyond standard operating conditions to guarantee the structural integrity of the brazed joints.
Production Consistency: Ensuring that the precise parameters of the vacuum furnace can be replicated across thousands of units without deviation.
By collaborating with an experienced engineering team, you ensure that your thermal management solution is not just a concept, but a proven, repeatable component that protects your power electronics for the long term.
Ready to secure the reliability of your power electronics?
Share your IGBT cooling requirements with Kingka, and our engineers can help design a vacuum brazed liquid cold plate solution optimized for your power electronics application. Contact us today to discuss CFD simulation, custom channel design, and prototype development.
Q1: Why is vacuum brazing preferred over traditional welding for IGBT cold plates?
A: Traditional welding only joins the outer edges of a metal assembly, which can leave internal structures weak and susceptible to pressure. Vacuum brazing bonds the entire surface area of the internal plates simultaneously, creating a unified, highly robust block that can withstand the intense pressure and thermal cycling of power electronics.
Q2: What is the ideal material for a power electronics cold plate?
A: Aluminum is the most common choice due to its excellent balance of thermal conductivity, lightweight properties, and cost-effectiveness. For applications with extremely high heat flux where absolute maximum conductivity is required, copper can be used, though it is heavier and more expensive.
Q3: How does CFD analysis prevent system failures?
A: Computational Fluid Dynamics (CFD) simulates how the liquid will flow through the cold plate before it is manufactured. It helps engineers identify "dead zones" where fluid stops moving and pressure bottlenecks, allowing them to optimize the internal channels to ensure smooth, efficient cooling without overworking the pump.
Q4: Can a vacuum brazed cold plate leak?
A: While no component is entirely immune to failure, vacuum brazed cold plates offer one of the lowest leakage risks in the industry. The flux-free, full-surface metallurgical bond eliminates the weak points found in mechanical seals (like O-rings) and edge welds.
Q5: Are these cold plates suitable for renewable energy systems?
A: Yes. Vacuum brazed liquid cold plates are highly suited for wind turbine converters, solar inverters, and energy storage systems. These applications require high reliability, the ability to handle high power densities, and resistance to environmental thermal cycling, all of which are strengths of vacuum brazed structures.
Q6: What details are needed to start a custom cold plate design?
A: To begin the design process, engineers typically need the physical dimensions of the available space, the layout and wattage of the heat sources (e.g., an IGBT datasheet), the maximum allowable component temperature, the type of coolant being used, and any specific flow rate or pressure drop limitations.
