Confused by wattage ratings on CPUs and GPUs, or wondering how much cooling your PC needs? TDP, or Thermal Design Power, represents the maximum amount of heat, in watts, that a computer component (like a CPU or GPU) is expected to generate under its typical maximum workload. It is a crucial specification that indicates the minimum cooling capacity required by a cooling solution (e.g., heatsink, liquid cooler) to keep the component operating within its safe temperature limits. This article will thoroughly explain TDP, its implications for PC performance and cooling, and how it guides component selection.
TDP, or Thermal Design Power, is a specification that defines the maximum amount of heat a component, such as a CPU or GPU, can generate under typical high-load conditions. It serves as a guideline for cooler manufacturers, indicating the minimum heat dissipation capacity required for an effective cooling solution.
Expressed in watts (W), TDP is not a direct measure of a component's actual power consumption, though it is closely related. Instead, it represents the thermal output that the cooling system must be able to handle to maintain the component at or below its maximum safe operating temperature (Tjunction Max). A CPU with a 65W TDP needs a cooler capable of dissipating at least 65W of heat to function optimally without throttling. This metric is fundamental for ensuring system stability and performance in various computing devices.
TDP is primarily used as a critical metric for selecting an appropriate cooling solution for a CPU or GPU. Matching a cooler's rated heat dissipation capacity (often also expressed in watts) to the component's TDP ensures stable thermal management and prevents performance issues.
When building or upgrading a PC, TDP guides several key decisions:
CPU Cooler Selection: The most common use of TDP is for CPU coolers. If a CPU has a 125W TDP, you generally need a CPU cooler rated for at least 125W, or ideally, a cooler with a higher capacity to provide thermal headroom.
Air Coolers: These often have a listed TDP rating.
All-in-One (AIO) Liquid Coolers: Their radiator size directly correlates to their heat dissipation capabilities. Larger radiators (e.g., 240mm, 360mm) are for higher TDP CPUs.

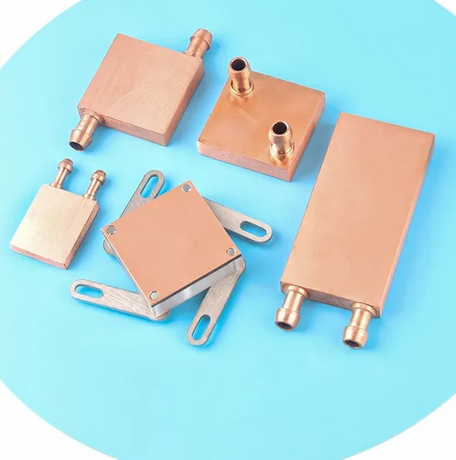

GPU Cooling: While dedicated GPU coolers are less common for end-users (as GPUs come with integrated cooling), custom liquid cooling loops require GPU water blocks and radiators sized according to the GPU's TDP.
Case Airflow: A system with high-TDP components needs a PC case with adequate airflow and fan mounts to exhaust the heat generated by the cooler.
Power Supply Unit (PSU) Selection (Indirectly): Although TDP is not power consumption, components with higher TDPs typically consume more power. This indirectly influences PSU selection, as a system with a higher total TDP for its components will generally require a higher wattage PSU.
Laptop Design: In laptops, a lower TDP CPU/GPU is often chosen to allow for thinner, lighter designs with less robust cooling solutions. TDP helps manufacturers balance performance with form factor and battery life.
By understanding a component's TDP, users can make informed decisions to prevent overheating, which can lead to thermal throttling and reduced system performance.
No, TDP is not the same as power consumption, although they are closely related and often numerically similar. TDP specifies the maximum heat output a cooler must dissipate, while power consumption refers to the actual electrical power drawn by the component from the power supply.
Here's a breakdown of their differences:
TDP (Thermal Design Power):
What it measures: The maximum amount of heat (in watts) that a component releases under typical heavy loads that a cooling system is designed to handle.
Purpose: A cooling requirement guideline. It tells you how powerful your cooler needs to be.
Behavior: It's a specified value, a target for cooler performance.
Power Consumption (Electrical Power Input):
What it measures: The actual electrical energy (in watts) a component draws from the power supply to operate.
Purpose: An electrical demand guideline. It tells you how much power your PSU needs to supply.
Behavior: Varies dynamically depending on the workload. A CPU might consume 10W at idle, 60W during light gaming, and 150W during a heavy render.
Why they're different but related: Most of the electrical power consumed by a CPU or GPU is converted into heat due to inefficiencies in the silicon. Therefore, power consumption is a strong indicator of heat generation. However, TDP is often set slightly below the theoretical maximum power consumption a chip could draw, or it represents a sustained power limit, while a chip might briefly exceed its TDP with a "boost" power draw (e.g., Intel's PL2/Tau settings, AMD's PBO). For example, a CPU rated at 65W TDP might actually draw 80W under peak load for a short burst. The TDP represents the sustained thermal limit for cooling.
While an ideal cooler ensures the component never reaches its thermal limits, choosing a cooler rated above the TDP provides valuable thermal headroom, which is especially important for sustained heavy workloads and overclocking.
TDP has become more complex with modern processors due to the introduction of dynamic boosting algorithms, multiple power limits, and transient power spikes that allow components to temporarily exceed their stated TDP ratings. This complexity reflects a shift from static power envelopes to more adaptive performance targets.
In the past, TDP was a relatively straightforward number. If a CPU had a 95W TDP, it rarely exceeded that power draw under normal conditions. However, modern processors from both Intel (e.g., PL1, PL2, Tau) and AMD (e.g., PPT, TDC, EDC, PBO) utilize sophisticated power management schemes:
Boost Frequencies and Transient Spikes: CPUs and GPUs now aggressively boost clock speeds beyond their base frequency when thermal and power headroom allow. During these boost periods, components can draw significantly more power (and thus generate more heat) than their nominal TDP for short durations.
Intel's Power Limits:
PL1 (Processor Power Limit 1): Often equates to the base TDP. This is the sustained power limit.
PL2 (Processor Power Limit 2): A higher power limit that the CPU can reach for a short duration (defined by Tau, time constant, typically 28-56 seconds).
PL4 (Processor Power Limit 4): An even higher, very brief limit for extreme spikes.
AMD's Power Limits:
PPT (Package Power Tracking): The total power socket limit.
TDC (Thermal Design Current): The maximum current allowed to flow through the CPU.
EDC (Electrical Design Current): The peak current allowed for short bursts.
Adaptive Performance: This dynamic behavior allows processors to extract maximum performance when cooling is available, but it also means the "TDP" number on the box is often just a baseline for sustained performance, not the absolute peak heat output you might see.
Cooler Requirements: This complexity means that simply matching a cooler to the base TDP might not be sufficient for users who want to sustain peak boost performance. For example, a CPU listed with a 65W TDP might briefly draw 150W. A cooler needs to handle these transient spikes and sustained higher loads if the user enables features like "Enhanced Turbo" or "Precision Boost Overdrive" in their BIOS.
This evolving definition of TDP requires PC builders to consider not just the stated TDP, but also the component's peak power draw and their desired performance goals when selecting a cooler.
TDP directly relates to performance and overclocking by defining the thermal ceiling that limits how much power a component can draw, and thus how fast it can operate without overheating. Lower TDPs generally indicate more power-efficient designs, while higher TDPs often signify greater performance potential.
Performance:
Sustained Performance: A CPU or GPU can only maintain its maximum clock speeds as long as it stays within its thermal limits. If the cooling solution cannot dissipate the heat effectively (i.e., its capacity is below the component's actual heat output), the component will thermal throttle. This means a higher TDP component can offer more performance, but only if paired with a sufficiently powerful cooler.
Real-world vs. Rated: While a 65W TDP CPU might offer good general performance, a 125W TDP CPU (with adequate cooling) will typically deliver significantly better sustained performance in demanding applications because it's designed to draw and dissipate more power.
Overclocking:
Pushing Past Limits: Overclocking involves increasing a component's clock speed and often its voltage, which directly leads to increased power consumption and, consequently, higher heat generation.
TDP as a Barrier: The component's original TDP serves as a baseline. When overclocking, you are intentionally pushing the heat output beyond this rated TDP.
Cooling is Key: Successful overclocking fundamentally relies on having a cooling solution (heatsink, liquid cooler) with a heat dissipation capacity far exceeding the component's original TDP. The more thermal headroom you have (i.e., the higher the cooler's capacity relative to the component's heat output), the more aggressively you can overclock and the more stable your overclock will be. Enthusiasts often choose coolers rated for 2-3 times the stock TDP of their component for serious overclocking endeavors.
In essence, TDP acts as a thermal budget. To unlock higher performance or achieve stable overclocks, you must ensure your cooling system's budget (dissipation capacity) is greater than or equal to the component's actual thermal output.
Ignoring TDP when selecting PC components, particularly cooling solutions, carries significant implications for system performance, stability, and longevity. It can lead to thermal throttling, system instability, reduced lifespan of components, and a poor user experience.
Failing to adequately match a cooler's capacity to a component's TDP can result in several detrimental outcomes:
Thermal Throttling: This is the most immediate and common consequence. If the cooler cannot dissipate heat fast enough, the CPU or GPU will automatically reduce its clock speeds and voltage to lower its temperature. This leads to a noticeable and consistent drop in performance, making demanding tasks slow and frustrating. Your high-end gaming CPU might perform like a mid-range one because it's constantly being throttled.
System Instability and Crashes: If thermal throttling isn't enough, or if the system hits critical temperatures too quickly, the component's protective mechanisms might trigger a shutdown to prevent permanent damage. This can manifest as unexpected reboots, Blue Screens of Death (BSODs), or system freezes, severely impacting reliability.
Reduced Component Lifespan: Prolonged operation at elevated temperatures (even if below the absolute maximum) accelerates the degradation of semiconductor materials. This means your CPU or GPU might fail prematurely, leading to costly replacements or system rebuilds.
Uncomfortable Noise Levels: To try and compensate for inadequate cooling, fans (on the cooler, case, or even PSU) will spin at maximum RPMs, generating significant noise. This creates a loud and unpleasant computing environment, especially during gaming or heavy workloads.
No Overclocking Headroom: If you buy a K-series Intel CPU or an X-series AMD CPU (designed for overclocking) but pair it with an insufficient cooler, you'll have no ability to safely increase its performance beyond stock settings. You'll have paid for potential you can't unlock.
Therefore, understanding and respecting TDP is fundamental for any PC builder. It's not just about raw power; it's about ensuring your system can sustain that power efficiently and reliably for years to come. Investing in a cooler appropriate for your components' TDP is a wise decision that pays dividends in performance and longevity.
TDP, or Thermal Design Power, is a critical specification representing the maximum heat output a component like a CPU or GPU is expected to generate under typical maximum load, serving as a vital guideline for cooler selection. It is distinct from actual power consumption but intrinsically linked, as most electrical power drawn is converted to heat. While historically a fixed value, modern processors have introduced complexities with dynamic boosting and multiple power limits, meaning components can temporarily exceed their nominal TDP. Understanding TDP is paramount for PC builders to ensure adequate cooling, prevent thermal throttling, unlock overclocking potential, and maintain system stability and component longevity. Ignoring this crucial metric can lead to significant performance degradation and reliability issues.
