High-power LED and laser equipment demand advanced thermal management to prevent immediate performance degradation and permanent hardware failure. Skived fin heat sinks provide the ultimate solution for these applications by slicing ultra-thin, high-density fins directly from a single metal block, eliminating interfacial thermal resistance and maximizing heat dissipation surface area within the compact footprints typical of optical systems. By maintaining a seamless unibody structure, these heat sinks prevent the localized thermal bottlenecks that cause laser wavelength shifting and LED lumen depreciation.
As optical electronics advance toward higher output wattages, thermal densities have rapidly outpaced the cooling capabilities of standard aluminum extrusions. Specifying the correct thermal foundation is now a primary requirement for ensuring beam accuracy and long-term product reliability. Understanding the mechanical and structural advantages of the skiving manufacturing process allows engineering and procurement teams to select cooling foundations that meet the rigorous operational standards of modern mission-critical optical gear.
Table of Contents
Optical components are uniquely sensitive to thermal fluctuations. Unlike traditional silicon CPUs that adjust clock speeds when overheating, optical components experience instantaneous drops in output quality and structural integrity when temperatures exceed specific thresholds.
Localized Heat Flux: Both high-power LEDs and industrial laser diodes dissipate the vast majority of their electrical energy as heat within a microscopic semiconductor junction. This creates a concentrated thermal load that requires immediate removal.
Wavelength and Color Stability: For laser equipment, temperature changes cause the physical semiconductor cavity to expand or contract. This shifting changes the output wavelength and degrades beam focus. Similarly, LED arrays suffer from "thermal droop," where forward voltage drops and lumen output plummets as the junction gets hotter.
Operating Lifespan: Prolonged exposure to high heat causes phosphor degradation in LEDs, leading to permanent color shifts. Ensuring these components operate at low, steady-state temperatures is the only way to meet or exceed 50,000-hour design lifecycles.
To maintain optical output consistency, engineers often establish a strict thermal budget. For many precision laser modules, it is common engineering practice to ensure junction temperature fluctuations do not exceed two degrees Celsius during continuous operation. Failing to adhere to these limits results in immediate, irreversible optical misalignment.
Engineering teams often reach for standard aluminum extrusions or bonded fin assemblies, but these legacy methods frequently encounter physical limits when applied to high-density optical hardware.
Standard extruded heat sinks are created by pushing hot metal through a steel die. Because the fins are part of the die geometry, they cannot be made arbitrarily thin or packed too closely together. If an engineer designs fins with too high an aspect ratio, the hydraulic pressure required during extrusion will shatter the steel die. This limitation significantly restricts the total cooling surface area possible in a small enclosure.
To bypass the density limits of extrusion, many designers use bonded fin assemblies, where individual fins are glued or soldered into a base plate. While this yields a higher fin density, it creates a serious thermal bottleneck.
Thermal Barrier: The bonding agent (epoxy or solder) acts as a microscopic thermal insulator between the base and the fins.
Heat Flow Obstruction: When a high-flux heat source pushes energy into the base, that heat must travel across this insulating layer to reach the fins. This interface resistance causes a thermal spike directly beneath the LED or laser diode.
If an optical source covers less than 20 percent of the total heat sink base, engineers should avoid bonded fin solutions, as the high thermal resistance at the fin joints forces the base temperature to skyrocket before the fins can even begin to contribute to the cooling process.
Heat Sink Type | Thermal Interface Resistance | Fin Density Potential | Structural Integrity | Best Application Profile |
Standard Extrusion | Zero (Solid piece) | Low to Medium | Very High | Large, low-density power electronics. |
Bonded Fin | High (Due to epoxy/solder) | Very High | Medium | Large cooling surfaces with distributed heat. |
Skived Fin | Zero (Solid piece) | Very High | High (Unibody) | Compact, ultra-high heat flux LEDs and lasers. |

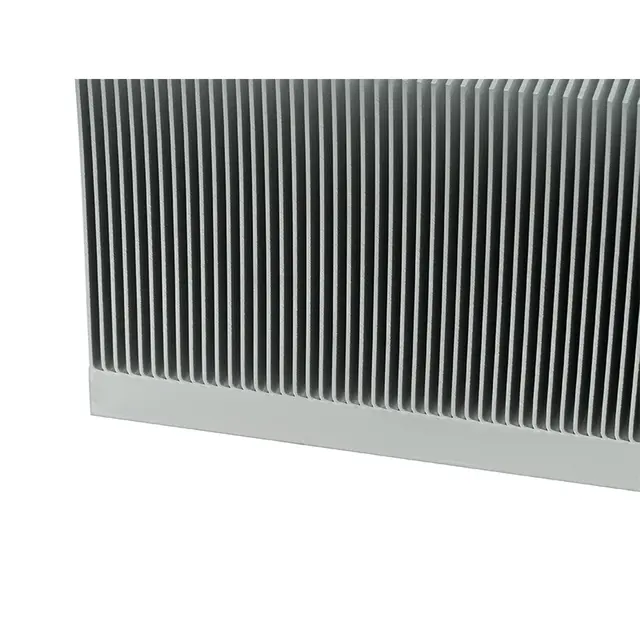

Skiving provides a superior alternative by utilizing a precision cutting tool that peels and bends fins directly from a solid metal block. This process is the gold standard for high-performance optical cooling.
Because the fin is physically part of the base, there is no joint, no epoxy, and no solder to obstruct heat flow. The thermal path is 100 percent solid, continuous metal. This allows heat to move from the base into the fins with zero interfacial thermal resistance, significantly lowering the total thermal resistance of the cooling system.
Skiving enables aggressive geometries that extrusion simply cannot replicate. Engineers can design fins that are extremely thin—often as small as 0.1 millimeters—and packed very closely together. This allows for a massive increase in cooling surface area within the exact same volumetric footprint, making it ideal for devices where space is at a premium.
By utilizing these ultra-thin, high-density fin arrays, designers can achieve the heat dissipation capacity of much larger cooling units, allowing optical systems to remain compact and portable without sacrificing thermal performance.
Selecting the right base material is as important as the manufacturing process itself. The choice between aluminum and copper should be dictated by the specific power density and weight constraints of the application.
Aluminum (AL6063) is the primary material for large-scale industrial LED arrays, such as stadium lighting or industrial high-bay fixtures. Aluminum provides a solid thermal conductivity of roughly 200 W/m K. It is lightweight, cost-effective, and easy to machine, making it the perfect choice for fixtures that must be mounted overhead or installed in high-volume commercial quantities.
Copper (C1100) is the mandatory choice for precision laser diode modules. With a thermal conductivity near 385 W/m K, copper absorbs and spreads heat laterally far better than aluminum. This makes it essential for cooling the ultra-concentrated heat flux generated by industrial or medical laser diodes.
Material | Conductivity (W/m K) | Density (g/cm3) | Recommended Usage |
AL6063 Aluminum | ~200 | ~2.7 | Commercial LED arrays, stadium lighting. |
C1100 Copper | ~385 | ~8.9 | Precision laser diodes, TEC hot sides. |
When dealing with heat flux densities exceeding 50 Watts per square centimeter, engineering teams should specify C1100 copper. The superior lateral heat spreading capability prevents localized hot spots that would otherwise compromise the structural integrity of the diode junction.
High-power LED fixtures, particularly those used in industrial environments, require long-term reliability and zero maintenance. These systems rely on passive cooling architectures to manage heat without the help of mechanical fans.
LED modules utilized in street lighting or floodlights often feature IP67-rated sealed enclosures. Because mechanical fans cannot survive in such environments, engineers rely entirely on the aluminum skived fin heat sink's surface area. By ensuring the fins are optimized for natural convection, the heat sink draws heat away from the chip-on-board module and radiates it into the ambient air efficiently.
For these passive systems, specifying an aluminum heat sink with an optimized fin pitch allows buoyant hot air to escape without trapping it in a boundary layer. This reliable cooling ensures the light fixture achieves its projected 50,000+ hour lifespan without dimming or color shifting.
Laser diodes require far tighter thermal control than LEDs. In many surgical or industrial cutting applications, these diodes are mounted onto Thermoelectric Cooling (TEC) modules to drive the laser temperature below ambient levels.
A TEC module is essentially a heat pump; it creates a cold side for the laser, but it generates significant waste heat on its hot side. This hot side must be cooled aggressively to prevent the TEC from becoming overwhelmed. A copper skived fin heat sink is the standard solution in this configuration.
Because the copper heat sink can be engineered with ultra-high fin density, it can reject the combined heat load of the laser and the TEC while remaining small enough to fit inside a handheld device. When utilizing TEC cooling for sub-ambient laser temperatures, engineers should ensure the copper skived heat sink is mounted directly to the hot side of the TEC, as this placement is critical to ensuring the module can reject heat as fast as it is produced.
Securing a high-quality skived heat sink requires a manufacturing partner capable of managing the entire production flow, from thermal design to precision secondary machining.
Optical equipment typically requires contact surfaces to be perfectly flush. Even the best skived fin design will fail if the heat sink base is not perfectly flat. For applications where the thermal interface gap must be under 0.05 millimeters, manufacturers must perform post-skiving CNC face-milling. This ensures the heat sink makes intimate contact with the semiconductor surface.
Kingka provides end-to-end support for custom skived fin heat sinks:
Thermal Design: Optimizing fin pitch and height for your specific airflow environment.
Precision Machining: CNC face-milling the base and tapping mounting holes for secure assembly.
Surface Treatments: Applying anodizing or anti-oxidation coatings to protect against environmental degradation.
By selecting an OEM partner that integrates these processes under one roof, purchasing managers can ensure batch-to-batch consistency and dimensional accuracy, ultimately protecting the long-term reliability of their LED and laser systems. Contact us today to discuss your custom skived fin heat sink requirements and find the right thermal solution for your application.
1. What exactly is a skived fin heat sink?
A skived fin heat sink is a highly efficient cooling device made by using a precision cutting tool to slice thin layers of metal from a solid block of aluminum or copper, bending them upright to form cooling fins. Because the fins are peeled directly from the base, the entire unit is a single, continuous piece of metal.
2. Why is eliminating thermal interface resistance so important for lasers?
Laser diodes generate massive amounts of heat in a very small area. If a heat sink uses bonded or glued fins, that glue layer acts as a microscopic thermal blanket, trapping the heat at the base. Skived fins are one solid piece, allowing the intense heat to travel instantly into the fins without restriction, keeping the laser completely stable.
3. Why can't I just use standard extruded aluminum for high-power LEDs?
Standard aluminum extrusion is limited by the physical strength of the steel die used to make it. If you try to extrude fins that are too tall and too closely packed together, the pressure will break the die. Skiving bypasses this limitation, allowing for much denser, thinner fins that provide vastly more cooling surface area in the same physical footprint.
4. When should I choose copper over aluminum for a skived heat sink?
Copper has nearly double the thermal conductivity of aluminum, making it exceptional at rapidly absorbing and spreading intense, concentrated heat. You should choose copper for high-power laser diodes or Thermoelectric Coolers (TECs) where rapid heat spreading is critical. Aluminum is better for large LED arrays where overall fixture weight and cost are the primary concerns.
5. Do skived fin heat sinks require a cooling fan?
Not necessarily. While high-density skived fins are often paired with fans for maximum cooling in compact laser equipment, they can also be engineered with wider fin spacing to act as highly efficient passive coolers (no fans) for industrial LED streetlights or stadium lighting.
6. Does a copper skived fin heat sink require surface treatment?
Yes. Bare copper will rapidly oxidize and tarnish when exposed to moisture and air, which can slightly degrade its thermal radiation properties over time. Professional manufacturers apply anti-oxidation treatments or specialized plating to copper skived heat sinks to ensure long-term environmental durability.
