Light Emitting Diodes (LEDs) have revolutionized lighting technology with their energy efficiency, longevity, and versatility. As LED applications expand across various industries—from consumer electronics to automotive lighting—the importance of effective thermal management cannot be overstated. Proper heat dissipation ensures that LEDs operate efficiently, maintain brightness, and extend their lifespan. Central to this thermal management is the heatsink, a component designed to absorb and disperse heat away from the LED. Among the materials available for heatsink construction, aluminum stands out as a popular and effective choice. This article explores the suitability of aluminum for LED heatsinks, delving into its properties, advantages, challenges, and the latest technological advancements that make it a preferred material in the industry.
A heatsink is a passive component that facilitates the transfer of heat from the LED to the surrounding environment. By increasing the surface area exposed to air, heatsinks enhance convective heat transfer, thereby preventing overheating. Overheating can lead to decreased LED performance, color shifting, and reduced lifespan. Therefore, selecting an appropriate material and design for the heatsink is crucial for maintaining optimal LED functionality.
Several factors influence heatsink performance, including thermal conductivity, surface area, airflow, and material properties. The choice of material directly impacts the heatsink's ability to dissipate heat efficiently. Common materials include metals like aluminum, copper, and sometimes even composite materials, each with its unique set of characteristics.
Aluminum is widely regarded as a suitable material for LED heatsinks due to its favorable properties:
1. High Thermal Conductivity: Aluminum possesses excellent thermal conductivity, typically around 205 W/m·K. While it is not as high as copper, which stands at approximately 385 W/m·K, aluminum offers a good balance between thermal performance and other practical considerations.
2. Lightweight: Aluminum is significantly lighter than many other metals, including copper. This makes it ideal for applications where weight is a critical factor, such as in portable devices or automotive lighting.
3. Corrosion Resistance: Aluminum naturally forms a protective oxide layer when exposed to air, enhancing its resistance to corrosion and oxidation. This property ensures durability and longevity, even in harsh environments.
4. Cost-Effectiveness: Aluminum is more affordable than copper, making it a cost-effective choice for large-scale production. Its widespread availability further contributes to its economic advantage.
5. Ease of Manufacturing: Aluminum is malleable and easy to machine, allowing for intricate and customized heatsink designs. This versatility is essential for meeting the specific thermal management needs of various LED applications.
When compared to other materials like copper or steel, aluminum strikes a balance between thermal performance, weight, cost, and manufacturability, making it a versatile choice for LED heatsinks.
1. High Thermal Conductivity: Aluminum's high thermal conductivity enables effective heat transfer from the LED to the heatsink and subsequently to the surrounding environment.
2. Temperature Maintenance: This efficiency helps maintain optimal operating temperatures, ensuring consistent LED performance and preventing thermal-related failures.

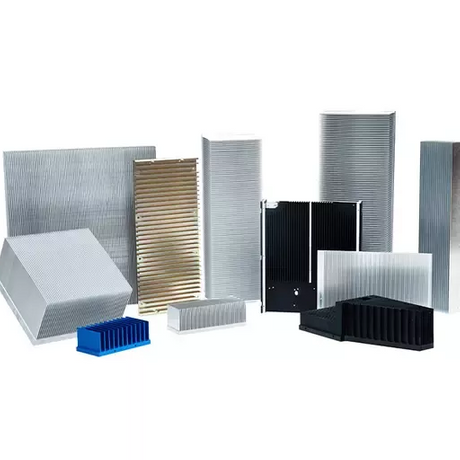

1. Manufacturing Flexibility: Aluminum is easy to extrude, die-cast, and machine, allowing for a wide range of heatsink geometries and sizes.
2. Custom Designs: Custom designs can be tailored to specific LED configurations, optimizing thermal management for various applications.
1. Affordability: The affordability of aluminum makes it suitable for mass production, helping manufacturers keep costs low without compromising on thermal performance.
2. Economic Advantage: This cost-effectiveness is particularly beneficial for consumer electronics and lighting industries, where large volumes are produced.
1. Recyclability: Aluminum is highly recyclable, contributing to sustainable manufacturing practices.
2. Lower Carbon Footprint: Its lower carbon footprint compared to materials like copper makes it an environmentally friendly choice for heatsink production.
1. Heat Transfer Efficiency: Although aluminum has good thermal conductivity, copper outperforms it in heat transfer efficiency.
2. Application Needs: In applications where maximum thermal performance is critical, copper might be preferred despite its higher cost and weight.
1. Design Optimization: In intricate LED assemblies with multiple heat sources, aluminum heatsinks might require optimized designs to ensure uniform heat distribution.
2. Enhanced Designs: Strategies such as incorporating fins, pins, or hybrid materials can enhance heat spreading and overall thermal performance.
1. Advanced Design Techniques: Optimizing fin density and surface area can compensate for aluminum's lower thermal conductivity compared to copper.
2. Alloying: Alloying aluminum with other elements can also enhance its thermal properties without significantly increasing costs.
1. Improved Thermal Conductivity: New aluminum alloys with enhanced thermal conductivity and mechanical properties are being developed.
2. Performance Enhancement: These alloys offer better performance while maintaining the lightweight and cost-effective nature of aluminum.
1. Enhanced Emissivity: Applying specialized coatings can enhance the emissivity of aluminum heatsinks, improving radiative heat transfer.
2. Durability: Anodizing aluminum can also increase surface durability and corrosion resistance.
1. Material Combination: Combining aluminum with other materials, such as copper, in a hybrid heatsink can leverage the strengths of both metals.
2. Balanced Performance: This approach allows for higher thermal performance while maintaining manageable costs and weights.
1. Complex Geometries: Techniques like CNC machining, extrusion, and 3D printing enable the production of complex heatsink geometries that optimize airflow and heat dissipation.
2. Customization and Efficiency: These methods allow for greater customization and efficiency in heatsink design.
1. Increased Surface Area: Fins increase the surface area available for heat dissipation.
2. Optimized Airflow: The spacing, thickness, and arrangement of fins are optimized to maximize airflow and heat transfer.
1. Directional Heat Dissipation: Pin fins provide directional heat dissipation and are effective in confined spaces where airflow is limited.
2. High-Density Applications: This design is suitable for high-density LED arrays.
1. Enhanced Heat Spreading: Incorporating vapor chambers can enhance heat spreading across the heatsink.
2. Uneven Heat Distribution: This design is particularly effective in applications with uneven heat distribution.
1. Tailored Solutions: Custom heatsink shapes can address specific thermal challenges in unique LED applications.
2. Integrated Features: Customization allows for the integration of additional features, such as mounting points or aesthetic elements.
In automotive LED lighting, aluminum heatsinks are designed with intricate fin geometries to handle high thermal loads while maintaining lightweight structures. The combination of high surface area and optimized airflow ensures that the LEDs remain cool, contributing to reliable performance and longevity.
Material | Thermal Conductivity (W/m·K) | Weight (kg/m³) | Cost | Corrosion Resistance | Ease of Manufacturing |
Aluminum | 205 | 2,700 | Low | High | High |
Copper | 385 | 8,960 | High | Moderate | Moderate |
Steel | 50 | 7,850 | Low | Low | Moderate |
1. Automotive: Aluminum's lightweight and corrosion resistance make it ideal for automotive lighting systems.
2. Consumer Electronics: Cost-effectiveness and ease of manufacturing are crucial for mass-produced electronic devices.
3. Industrial Lighting: Durability and efficient heat dissipation are essential for harsh industrial environments.
Aluminum heatsinks offer excellent long-term reliability due to their resistance to corrosion and ability to maintain structural integrity under thermal cycling.
1. Infinite Recycling: Aluminum can be recycled indefinitely without loss of properties, reducing the need for virgin material extraction.
2. Energy Efficiency: Recycling aluminum requires significantly less energy compared to primary production, lowering overall environmental impact.
1. Production Advancements: Although primary aluminum production is energy-intensive, advancements in production technologies have reduced energy consumption.
2. Hybrid Solutions: Hybrid and recycled aluminum heatsinks contribute to lower carbon footprints.
1. Long Lifespan: The long lifespan of aluminum heatsinks in LED systems minimizes waste and the need for frequent replacements.
2. Sustainable Practices: Sustainable manufacturing practices further enhance the environmental benefits of using aluminum.
Aluminum emerges as a highly suitable material for LED heatsinks, balancing thermal performance, weight, cost, and manufacturability. Its inherent properties, such as high thermal conductivity and corrosion resistance, make it an excellent choice for a wide range of LED applications. While it may not match copper in pure thermal conductivity, aluminum's advantages in other areas make it a preferred material for many manufacturers. Technological advancements continue to enhance aluminum heatsink performance, ensuring its relevance in the evolving landscape of LED technology.
For manufacturers seeking reliable and innovative thermal management solutions, aluminum heatsinks offer a versatile and effective option. By carefully considering design and material properties, optimal thermal performance can be achieved, ensuring that LEDs operate efficiently and last longer.
