Failing to properly specify a servo drive die cast heat sink leads directly to IGBT thermal throttling, reduced drive lifespan, and costly warranty claims. To specify a die-cast heat sink for a servo drive, calculate the IGBT's peak thermal load, size the base for transient heat absorption, and integrate the fins with the enclosure for IP sealing and EMI shielding. Modern servo drivers pack higher power densities into smaller footprints, so the heat sink must work as an integrated structural enclosure, EMI shield, and environmental barrier—not a passive fin. Our recommendation: model the peak junction-temperature margin first, then lock fin geometry only after the base and sealing surfaces are defined. This guide explains how engineers can specify a die casting heat sink for servo drives, covering thermal loads, fin geometries, and integral housing design.
Table of Contents
The first step in designing a servo drive heat sink is calculating the exact thermal load. Servo drivers experience rapid load fluctuations during acceleration and deceleration phases, creating transient thermal spikes that the heat sink must absorb and dissipate.
A custom heat sink must handle the maximum continuous power dissipation without exceeding the junction temperature limits of the internal components. This requires calculating both conduction losses (steady state) and switching losses (dynamic state) from the Insulated Gate Bipolar Transistors (IGBTs) and diodes. While general guidelines exist for die-cast aluminum heat sinks for servo, LED and automotive applications, servo drives require precise transient thermal impedance modeling.
High thermal mass in the base of the die-cast heat sink is required to absorb transient load spikes. Thick bases absorb burst energy during heavy motor starting torques, preventing immediate thermal throttling before the fins can transfer the heat to the ambient air.
Fin design directly dictates the convective heat transfer efficiency of the servo drive. Because industrial control cabinets often have restricted airflow, fin geometry must be optimized for the specific environmental conditions of the installation.
Die casting allows for complex, near-net shapes, but it operates under strict mechanical limits. Ejecting a solid aluminum part from a steel mold requires draft angles on every fin. Following standard die cast heat sink design rules is critical to balance thermal performance with manufacturability.
Typically, fins require a minimum draft angle of 1 to 2 degrees to prevent sticking and tooling damage. The maximum fin aspect ratio (fin height to gap width) in standard die casting is usually 10:1 or 12:1. Pushing beyond these ratios increases the risk of incomplete fills (cold shuts) during the injection process.
Fin orientation must align with the expected airflow path.
· Natural Convection: Requires wider fin spacing (typically >6mm) to allow air expansion and boundary layer development without choking the flow. Fins must be oriented vertically.
· Forced Convection (Fan Cooled): Permits tighter fin spacing to maximize surface area.
When high-density fins are required beyond the limits of casting, engineers must evaluate whether an alternative process is required. Comparing die cast vs skived fin heat sinks is necessary for high-power, space-constrained servo models, though skived fins cannot integrate complex enclosure features.

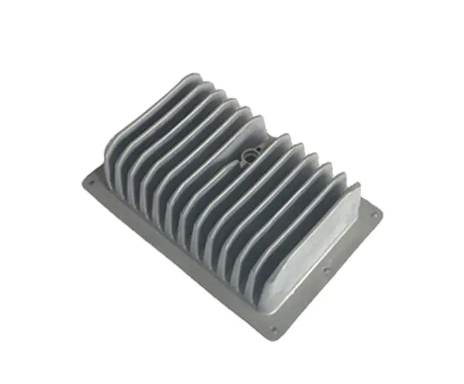

A servo driver custom die-cast aluminum heat sink provides a massive advantage over extruded alternatives: it can serve as the entire rear housing of the servo drive. This integration reduces the Bill of Materials (BOM) and streamlines assembly.
Die-cast aluminum inherently provides excellent electromagnetic interference (EMI) shielding, which is critical for blocking the high-frequency switching noise generated by the servo's inverter. To maintain a complete Faraday cage, the mating surfaces between the heat sink and the front housing must be perfectly flat.
Furthermore, industrial servo drives require strict Ingress Protection (IP54 to IP67) against dust and cutting fluids. Die casting allows engineers to mold O-ring grooves directly into the heat sink perimeter. However, as-cast surfaces may not be smooth enough for a high-pressure seal. Evaluating die casting vs CNC machining heat sinks helps engineers understand where secondary CNC passes are mandatory to achieve the Ra 1.6 to Ra 3.2 surface finish required for gasket sealing.
The thermal path from the IGBT chip to the ambient air involves multiple interfaces. The highest thermal resistance often occurs right at the mating surface between the IGBT module baseplate and the heat sink.
Die-cast heat sinks must provide a highly machined pedestal to interface with the IGBT. The flatness requirement for this mounting zone is typically tighter than 0.05 mm per 100 mm. Any bowing or warpage will increase the thickness of the Thermal Interface Material (TIM), drastically raising the thermal resistance. The principles used here are heavily borrowed from heavy-duty industrial electronics, similar to specifying die cast heat sinks for solar inverters, where high-voltage switching creates localized hotspots.
Requirement | Specification | Reason |
Base Flatness | < 0.05 mm | Minimizes TIM thickness and thermal resistance. |
Surface Finish | Ra 1.6 - Ra 3.2 | Ensures proper spread of thermal grease. |
Screw Torque | Pre-drilled / Tapped | Prevents baseplate distortion during assembly. |
The material used in a die cast heat sink for a servo motor heavily influences both thermal conductivity and structural integrity.
ADC12 (A383) and A380 are the industry standards for structural die casting. While pure aluminum offers ~210 W/m·K, die-cast alloys hover between 96 and 110 W/m·K due to silicon and copper additives required for metal flow. Balancing ADC12 vs A380 alloy selection for die cast heat sinks depends on whether the priority is better castability (ADC12) or slightly better toughness (A380).
High-pressure die casting naturally entraps small amounts of air. Controlling porosity in die cast heat sinks is critical for servo drives. Excessive porosity directly beneath the IGBT mounting area acts as an insulator, creating a thermal bottleneck. Experienced manufacturers use vacuum-assisted die casting and precise gate design to move porosity away from critical thermal zones.
Because the heat sink serves as the structural chassis for the PCBs and connectors, dimensional stability is paramount. Understanding standard die cast heat sink tolerances and dimensional accuracy ensures that mounting bosses and connector ports align perfectly with the internal electronics, preventing mechanical stress on solder joints.
To streamline the design and procurement process, engineers should evaluate these key factors before launching tooling. Ensuring you meet volume requirements is also vital, as calculating the die cast heat sink cost and volume breakeven determines if the high initial tooling cost is justified by the unit price reduction.
1. Calculate Thermal Load: Define steady-state and peak transient watt losses.
2. Determine Environment: Specify IP rating (e.g., IP65) and ambient temperature.
3. Draft Fin Geometry: Set minimum draft angles (1.5°) and aspect ratios (max 12:1).
4. Identify Critical Surfaces: Mark IGBT mounting zones for secondary CNC machining.
5. Select Alloy: Specify ADC12 for optimal flow in complex housing geometries.
6. Define Fastening: Plan for tapped holes, threaded inserts, and sealing grooves.
Specifying a servo drive die cast heat sink requires balancing thermal fluid dynamics, mechanical enclosure constraints, and mass-production realities. By integrating the housing, EMI shield, and cooling fins into a single die-cast component, engineers can significantly reduce costs while improving system reliability. Ensure that critical surfaces are post-machined for IP sealing and TIM application, and strictly adhere to drafting guidelines to prevent tooling failures.
When you are ready to transition from CAD to production, use our custom die cast heat sink RFQ checklist to prepare your files. Kingka is a premier servo drive heat sink manufacturer with over 16 years of experience, ISO 9001:2015 certification, and a facility equipped with over 50 CNC machines. We provide free DFM and thermal analysis within 24 hours, alongside rigorous 4-round inspections and 100% leak testing for critical components. Contact Kingka's engineering team today to optimize your servo drive thermal management strategy.
What is the ideal fin spacing for a fan-cooled servo drive heat sink?
For forced convection, fin spacing typically ranges from 2mm to 5mm. Tighter spacing maximizes surface area, provided the cooling fan has enough static pressure to overcome the air resistance.
Can a die-cast heat sink act as the main EMI shield?
Yes. Aluminum is inherently conductive and provides excellent EMI attenuation. Ensuring an unpainted, machined mating perimeter with a conductive gasket creates a reliable Faraday cage.
Why is CNC machining necessary on a die-cast heat sink?
While die casting produces near-net shapes, it cannot achieve the strict flatness (< 0.05 mm) required for IGBT mounting or the precise tolerances needed for IP-rated O-ring grooves.
How does porosity affect thermal performance?
Air trapped inside the aluminum has a very low thermal conductivity. If porosity concentrates under the heat source, it creates a thermal barrier that increases the junction temperature of the electronics.
What is the standard alloy used for servo drive heat sinks?
ADC12 (equivalent to A383) is the most common choice due to its excellent fluidity, allowing it to fill complex housing shapes and thin fins without forming cold shuts.
How thick should the base of the heat sink be?
Base thickness depends on the required thermal spreading and transient absorption. Typically, a base of 5mm to 10mm is used for servo drives to absorb short bursts of heat during motor acceleration.
