Designing a manufacturable die casting heat sink requires balancing thermal dissipation targets with strict metallurgical constraints. Ignoring these limits leads to tooling damage, cold shuts, and internal defects that ruin thermal transfer. Following proven die cast heat sink design rules upfront ensures a smooth transition from CAD to mass production. This guide details the essential parameters for draft angles, wall thickness, and fin geometries so engineers can eliminate high thermal resistance paths and design parts that cast reliably at scale.
Table of Contents
Engineers often attempt to port an extruded or machined heat sink design directly into a die-casting mold. This is a costly mistake. High-pressure die casting involves injecting molten aluminum into steel dies at high velocities; the metal cools rapidly, shrinking as it solidifies.
To prevent the part from galling against the steel tool during ejection, the geometry must accommodate physical tapers. This is especially true for highly integrated components, such as die-cast aluminum heat sinks for servo, LED and automotive applications, where the heat sink doubles as an IP-rated enclosure. For servo-drive-specific thermal loads and enclosure specs, see our die cast heat sinks for servo drives guide. Evaluating these geometric limits early directly dictates the die cast heat sink cost and volume breakeven, as poor designs require frequent tooling repairs and cause high scrap rates.

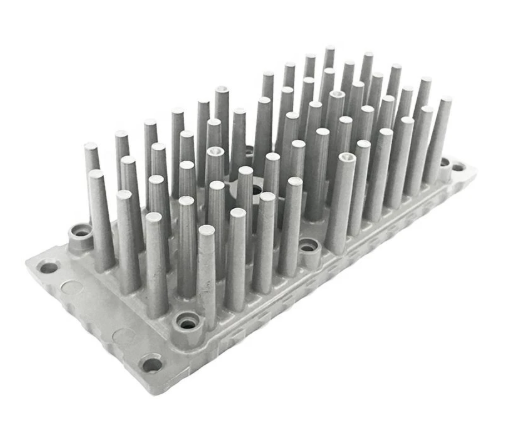

A draft angle is the slight taper applied to the vertical walls of a cast part. Because aluminum shrinks as it cools, it tightly grips the core pins and cavity walls of the steel mold. Without sufficient draft, ejecting the part will score the aluminum surface, bend the fins, or break the ejector pins.
A minimum 1-degree draft angle per side is mandatory for standard fins, though 1.5 to 2 degrees is strongly recommended for depths exceeding 25mm.
A 1-degree draft is suitable for short, thick fins; a 2-degree draft is better when fin depth is extreme, as it significantly reduces ejection friction and extends tooling life. Furthermore, internal walls (which the shrinking aluminum compresses against) require higher draft angles than external walls (which shrink away from the cavity).
Feature Type | Minimum Draft Angle | Recommended Draft Angle |
External Fins | 1.0° | 1.5° - 2.0° |
Internal Cavities | 1.5° | 2.0° - 3.0° |
Short Bosses | 1.0° | 1.5° |
Deep Enclosures | 2.0° | 3.0° |
When designing a custom draft angle heat sink, always measure the fin gap at the base (root) rather than just the tip. The taper will naturally reduce the airflow channel width at the root, which must be factored into your fluid dynamics (CFD) simulations.
The base plate of a heat sink spreads the thermal load from a concentrated heat source (like an IGBT or CPU) out to the fins. However, in die casting, you cannot make the base arbitrarily thick without consequences.
The absolute minimum heat sink wall thickness for aluminum die casting is typically 1.5mm to 2.0mm. If the base or fins are thinner than this, the molten metal will freeze before filling the cavity, causing a defect known as a cold shut.
Conversely, overly thick walls (greater than 6mm) cool too slowly. This slow cooling causes sink marks on the surface and induces internal voids. If high thermal mass is required for spreading transient heat spikes, evaluating ADC12 vs A380 alloy selection for die cast heat sinks is necessary, as different alloys have slightly different flow characteristics and shrinkage rates in thick sections.
For heavy-duty applications requiring substantial heat spreading, such as die cast heat sinks for solar inverters, localized thickening (pads) should be used under the heat source rather than thickening the entire baseplate.
Fin geometry defines the convective surface area of the heat sink, but die casting imposes strict limits on how tall and close together fins can be.
The fin aspect ratio die casting limit—defined as fin height divided by the distance between fins (the gap)—should generally not exceed 10:1 or 12:1.
Die casting is recommended when the required fin aspect ratio is under 12:1 and the part includes complex housing features; skiving is better when thermal loads strictly demand ultra-thin fins with aspect ratios exceeding 15:1. If your thermal simulation requires a 20:1 ratio to meet the junction temperature target, you must compare die cast vs skived fin heat sinks to select the correct manufacturing process.
The gap between fins at their root must be wide enough to accommodate the steel tooling blade. Tooling blades thinner than 2mm are highly prone to thermal fatigue and snapping under the extreme pressure of molten aluminum injection. Therefore, a minimum fin gap of 2.5mm to 3.0mm at the base is standard best practice.
Die-cast heat sinks often serve double duty as structural chassis. Adding mounting bosses and structural ribs is simple, but they must be designed to avoid disrupting the thermal path or causing cosmetic defects.
Bosses designed for threaded fasteners should have a wall thickness that is less than or equal to the primary base wall thickness. If a boss is too massive, it will create a hot spot in the mold, leading to localized shrinkage and sink marks on the mating surface opposite the boss. If strict flatness is required for a thermal interface pad, die casting vs CNC machining heat sinks must be considered, as secondary CNC milling is mandatory to achieve flatness below 0.05mm.
Always use generous fillets (radii) where fins and bosses meet the base. Sharp 90-degree internal corners concentrate stress and inhibit smooth metal flow, causing premature die failure. Radii of 1.0mm to 1.5mm at the fin roots significantly improve tool life and part integrity. Managing these features carefully ensures that die cast heat sink tolerances and dimensional accuracy remain stable across production batches.
Every geometric choice in a die cast heat sink design impacts the likelihood of trapped air and shrinkage voids. Molten aluminum must flow smoothly from thick sections into thinner ones. If a thin section feeds a thick section, the thin area will freeze first, cutting off the supply of liquid metal to the thick area as it shrinks, guaranteeing a void.
Minimizing porosity in die cast heat sinks requires uniform wall thicknesses and gradual transitions. Porosity acting as a thermal insulator directly underneath a high-power chip will cause unexpected overheating, even if the CFD model predicts adequate cooling based on perfect solid aluminum.
Design Feature | Good Practice | Bad Practice (Avoid) |
Wall Transitions | Gradual taper (fillets) | Sharp 90-degree steps |
Base Thickness | Uniform, 2mm - 5mm | Massive >8mm blocks |
Fin Roots | Radiused (1.5mm) | Sharp internal corners |
Boss Placement | Over structural ribs | Isolated in thin flat walls |
Designing a die-cast heat sink requires a pragmatic compromise between maximum surface area and fluid metallurgical constraints. By adhering to a minimum 1.5-degree draft angle, keeping wall thicknesses consistent, and respecting the 12:1 fin aspect ratio limit, engineers can design thermal management solutions that are highly effective and reliably manufacturable. Always prioritize gradual geometric transitions and adequate fin spacing to ensure long tooling life and predictable thermal performance.
Before finalizing your CAD for tooling, download and fill out our custom die cast heat sink RFQ checklist. Kingka is a specialized thermal management manufacturer with over 16 years of engineering experience and ISO 9001:2015 certification. Equipped with 50+ advanced CNC machines, we offer a complete end-to-end solution—from free DFM and thermal analysis within 24 hours, to 4-round quality inspections and 100% leak testing for liquid-cooled parts. Contact our engineering team today to review your heat sink design for mass production viability.
What happens if I design a die-cast heat sink with zero draft angle?
The aluminum will shrink tightly onto the mold cavity as it solidifies. Without a taper to release it, the ejector pins will punch into the soft aluminum, destroying the part and potentially breaking the steel mold.
Can I achieve a 20:1 fin aspect ratio with high-pressure die casting?
No. High-pressure die casting is generally limited to a 10:1 or 12:1 aspect ratio. For ratios up to 20:1 or higher, you must use alternative processes like skiving, cold forging, or bonded fin assemblies.
Why is a uniform wall thickness so important for heat sinks?
Uneven walls cool at different rates. If a thick base is fed by a thin wall, the thin section freezes first. The thick section continues to shrink without a supply of liquid metal, creating internal porosity (voids) that severely bottleneck heat transfer.
Do mounting holes on a die-cast heat sink need CNC machining?
If the holes require tight tolerances for alignment or fine threads for secure fastening, secondary CNC tapping and machining are required. Die casting can cast the pilot holes, but CNC ensures thread precision and location accuracy.
What is the minimum fin gap required in die casting?
The absolute minimum gap is usually 2.0mm to 2.5mm at the base of the fins. Gaps smaller than this require tooling steel that is too thin, which will warp or snap off during the high-pressure injection process.
How do fillets (radii) improve thermal performance?
While fillets slightly increase the mass at the base of the fin, their primary benefit is manufacturing consistency. They prevent turbulence in the molten aluminum flow, reducing trapped air and ensuring a solid, defect-free thermal path from the base plate up into the fin.
