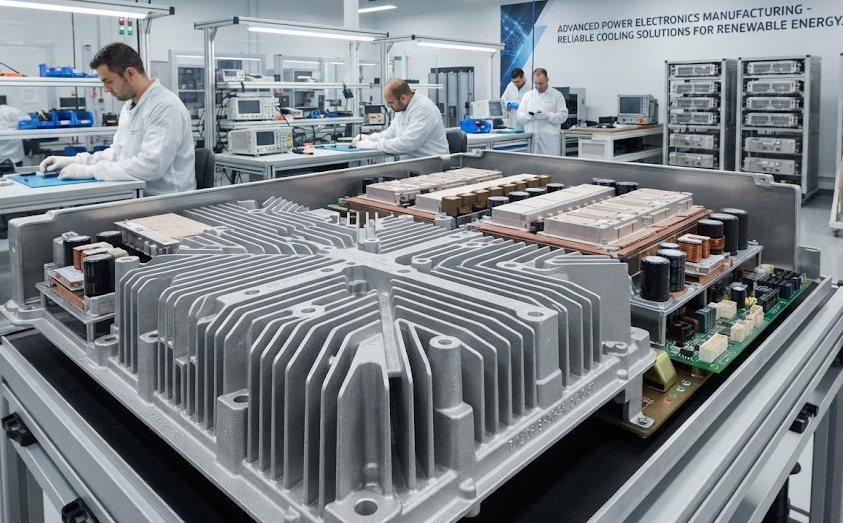

Field failures in renewable energy infrastructure carry catastrophic warranty costs. Unlike indoor factory equipment, a solar inverter must survive decades of relentless UV radiation, salt mist, thermal cycling, and steady-state high-power dissipation. A properly designed die casting heat sink is not just a cooling fin array; it serves as the heavily sealed, structural backbone of the entire inverter. This guide details how engineers must specify a die cast heat sink solar inverter solution to guarantee both uncompromising thermal performance and severe-environment durability.
Table of Contents
Solar inverter thermal management operates under profoundly different constraints than indoor industrial electronics. While a servo drive might experience short, dynamic power spikes during motor acceleration, a photovoltaic (PV) string inverter processes massive, steady-state power (often 50kW to 250kW+) for 10 to 14 hours a day under direct solar loading.
If the internal Silicon Carbide (SiC) MOSFETs or IGBT modules exceed their junction temperature limits, the inverter must derate its power output, directly reducing the energy yield of the solar farm. Die cast photovoltaic inverter cooling is the industry standard because it provides the massive thermal mass required to absorb these loads while simultaneously acting as the external protective chassis.
Operating Factor | Indoor Industrial (e.g., Servo) | Outdoor Solar Inverter | Engineering Requirement |
Thermal Load | Dynamic, intermittent spikes | Steady-state, continuous | Massive baseplate for heat spreading |
Ambient Environment | Controlled (20°C - 40°C) | Uncontrolled (-25°C to 60°C) + Solar Load | High-surface-area natural convection fins |
Contamination | Factory dust, oil mist | Rain, snow, salt fog, UV | IP65/IP67 rated sealing, corrosion coatings |
Lifespan Target | 5 - 10 years | 15 - 25 years | Fatigue-resistant structural alloy |
A renewable energy heat sink must protect the sensitive internal electronics from water and dust ingress. Die casting excels here because engineers can mold the entire rear half of the inverter enclosure—complete with continuous O-ring grooves and connector ports—into a single piece of aluminum.
However, an as-cast surface is rarely smooth enough to achieve a high-pressure IP65 or IP67 seal. Comparing die casting vs CNC machining heat sinks highlights that while casting forms the macroscopic groove, secondary CNC milling is absolutely mandatory to achieve the Ra 1.6 to Ra 3.2 surface finish required for the gasket to compress flawlessly. Adhering to standard die cast heat sink tolerances and dimensional accuracy ensures the cast part aligns perfectly with the CNC fixtures, preventing machining deviations that would compromise the weather seal.
Bare aluminum oxidizes quickly. In coastal solar farms or harsh industrial environments, outdoor heat sink corrosion will aggressively degrade the fins, reducing convective efficiency and eventually compromising the enclosure's structural integrity.
To survive a 20-year field life, die-cast solar inverter housings require a strict multi-layer surface treatment protocol:
1. Conversion Coating: The raw aluminum is treated with a chromate-free conversion coating (like SurTec 650). This passivates the metal, providing extreme corrosion resistance while maintaining electrical conductivity for EMI shielding on the internal mating surfaces.
2. Outdoor-Grade Powder Coating: The external surfaces and cooling fins are coated with a UV-resistant polyester powder coat. This physically blocks salt mist and moisture.
Standard anodizing is actively discouraged for die-cast alloys. Because alloys like ADC12 contain high silicon, anodizing results in a porous, cosmetically poor, and highly inconsistent protective layer.
A solar inverter heat sink is heavily structural. It must support the immense weight of copper-wound chokes, transformers, and large capacitor banks without bowing or warping over time.
Evaluating ADC12 vs A380 alloy selection for die cast heat sinks is critical here. While ADC12 offers exceptional fluidity for casting tall, thin fins, A380 is often specified for heavier solar inverters due to its slightly higher copper content, which yields superior structural toughness and resistance to mechanical fatigue.
Unlike die-cast aluminum heat sinks for servo, LED and automotive applications, which are generally smaller and lighter, renewable energy enclosures demand thicker structural ribs and heavily radiused corners to distribute the mechanical load of the internal magnetics across the chassis.
The most critical thermal interface in the inverter is the mating surface between the SiC power module and the heat sink baseplate. To guarantee optimal heat transfer, this surface must be CNC machined to a flatness of less than 0.05mm.
However, achieving this flatness is irrelevant if there are hidden defects beneath the surface. Uncontrolled porosity in die cast heat sinks acts as a severe thermal insulator. If a shrinkage void forms directly under the SiC module, heat cannot spread, and the module will fail. Engineers must follow strict die cast heat sink design rules—such as maintaining uniform wall thicknesses and avoiding massive, isolated blocks of aluminum—to prevent these shrinkage voids during solidification.
If the thermal density of a next-generation central inverter surpasses the cooling capacity of cast alloys (~100 W/m·K), design teams must compare die cast vs skived fin heat sinks. Skived heat sinks offer higher thermal conductivity (up to 200 W/m·K) and extreme fin densities, but they cannot incorporate the 3D enclosure features of a casting, forcing the OEM to design a separate, multi-part sheet metal housing.
The solar industry operates under relentless cost-down pressure. While a fully CNC-machined enclosure might be viable for early prototypes, it is financially impossible for mass production.
Determining the exact die cast heat sink cost and volume breakeven is essential for solar OEMs. Because these heat sinks are massive—often weighing 10kg to 30kg—the tooling (die) requires enormous casting machines (often 1,500 to 3,000 tons of locking force) and significant capital investment. However, integrating the cooling fins, EMI shield, and environmental enclosure into a single die-cast part eliminates dozens of fasteners, gaskets, and assembly hours, ensuring that the tooling investment pays off rapidly once production scales past a few thousand units.
Designing die cast heat sinks for solar inverters requires a holistic engineering approach that balances thermal fluid dynamics with severe outdoor environmental protection. By specifying appropriate structural alloys, demanding secondary CNC finishing for O-ring grooves and module mounting zones, and mandating robust UV-resistant powder coatings, OEMs can guarantee decades of reliable power generation in the harshest climates.
When your renewable energy project is ready to move from prototyping to mass production, utilize our custom die cast heat sink RFQ checklist to structure your procurement data. Kingka is a premier B2B precision manufacturer with over 16 years of expertise, maintaining ISO 9001:2015 certification. Operating over 50 advanced CNC machines, we bridge the gap between heavy casting and micro-precision. We offer free DFM and thermal analysis within 24 hours, alongside a rigorous 4-round inspection protocol and 100% leak testing for advanced liquid cold plates. Contact the Kingka engineering team today to build a thermal solution that survives the field.
Why are solar inverter heat sinks powder-coated instead of anodized?
Die-cast aluminum alloys contain high levels of silicon to improve metal flow. Silicon does not anodize well, resulting in a porous and cosmetically ugly finish that provides poor corrosion protection. A conversion coating followed by a UV-resistant outdoor powder coat provides vastly superior protection against salt mist and rain.
Can a die-cast heat sink support the weight of heavy solar inductors?
Yes. Alloys like A380 offer excellent mechanical toughness. By designing structural ribs and reinforced mounting bosses directly into the casting, the heat sink can safely act as the primary load-bearing chassis for heavy magnetic components.
What IP rating can a die-cast enclosure achieve?
A well-designed die-cast enclosure can easily achieve IP65, IP66, or IP67 ratings. However, the O-ring or gasket grooves must be post-machined with a CNC mill to achieve the precise surface finish required for a watertight seal; raw cast surfaces are generally too rough.
How do you prevent thermal failure caused by casting porosity in inverters?
Manufacturers use vacuum-assisted die casting, optimized gating systems, and rigorous design rules (uniform wall thickness) to push porosity away from the power modules. X-ray inspection is often used on first-article production to verify that the critical thermal zones are dense and defect-free.
Is die casting more cost-effective than extrusion for solar inverters?
Extrusion is recommended when the inverter design is simple and does not require integrated, sealed end-caps or complex 3D routing. Die casting is highly recommended for modern string inverters because it integrates the sealed enclosure and the cooling fins into one piece, significantly reducing the assembly Bill of Materials (BOM).
What is the maximum fin height for a die-cast solar heat sink?
Fin heights in die casting are governed by aspect ratios (fin height divided by the gap between fins), which generally should not exceed 10:1 or 12:1. Furthermore, every fin must have a draft angle of 1 to 2 degrees to allow ejection from the steel mold.
