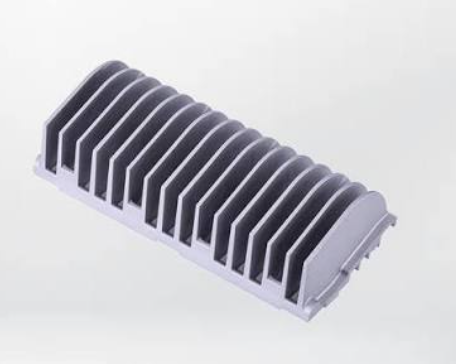

Porosity is the invisible enemy of a die casting heat sink. When thermal engineers run fluid dynamics (CFD) simulations, they typically assign a uniform thermal conductivity value to the aluminum baseplate. However, high-pressure die casting is a violent process that naturally traps microscopic air bubbles and shrinkage voids inside the metal. If these voids form directly beneath a high-power semiconductor, they act as localized thermal insulators, causing catastrophic junction temperature spikes. This guide explains the root causes of internal voids, how to quantify their thermal impact, and the engineering strategies required to control and eliminate them in mass production.
Table of Contents
Before you can control porosity in die cast heat sinks, you must diagnose its origin. Porosity is not a single defect; it generally falls into two distinct categories based on how the metal behaves inside the steel mold.
Gas porosity occurs when air inside the mold cavity, or gases generated by die lubricants, are trapped by the rapidly advancing front of molten aluminum. Because the metal is injected at extreme velocities (often exceeding 30 meters per second), the air simply cannot escape through the vents fast enough. These voids appear as smooth, spherical bubbles under an X-ray.
Shrinkage porosity occurs during the solidification phase. Aluminum shrinks by several percent as it turns from a liquid to a solid. If a thick section of the heat sink base cools slower than the surrounding thin fins, the thin areas freeze first. This cuts off the supply of liquid metal to the thicker, still-molten core. As that core finally cools and shrinks, it tears itself apart internally, leaving jagged, irregular voids.
Porosity Type | Root Cause | Visual Appearance | Mitigation Strategy |
Gas Porosity | Trapped air during injection | Spherical, smooth bubbles | Vacuum casting, better venting |
Shrinkage Porosity | Uneven cooling and solidification | Jagged, irregular cavities | Uniform wall thickness |
Understanding ADC12 vs A380 alloy selection for die cast heat sinks is helpful here, as high-silicon alloys like ADC12 offer better fluidity, which slightly reduces the risk of shrinkage voids in complex fin sections.
The physical mechanism behind die casting porosity thermal resistance is straightforward but devastating. Solid die-cast aluminum (like ADC12) conducts heat at roughly 96 to 100 W/m·K. Air, however, has a thermal conductivity of approximately 0.026 W/m·K.
Trapped air is effectively a perfect insulator. If a 2mm gas void forms directly under the mounting point of an IGBT module, the heat cannot travel vertically down into the fins. Instead, it is forced to travel horizontally around the void. This bottlenecks the thermal path, creating a localized hotspot that causes the servo driver or power inverter to thermally throttle or fail prematurely.
For high-reliability applications, such as die cast heat sinks for solar inverters, this thermal barrier is unacceptable. The heat sink baseplate must be dense and defect-free directly under the heat source to ensure immediate transient heat absorption.

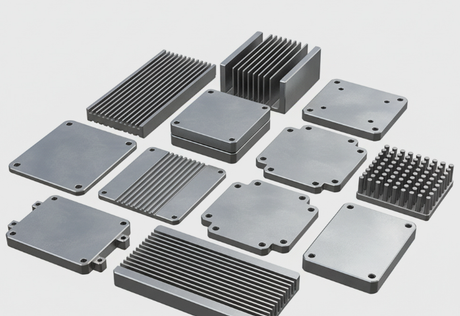

Manufacturers employ several advanced die-casting techniques to ensure the integrity of the thermal path.
Standard high-pressure die casting relies on passive vents to push air out. Vacuum die casting heat sink manufacturing uses an active vacuum pump to evacuate the air from the steel mold mere milliseconds before the molten aluminum is injected.
· Vacuum-assisted die casting is recommended when the heat sink requires extreme structural density and minimal trapped gas for high-power thermal spreading.
· Standard atmospheric casting is better when the thermal loads are low, and cost reduction is the absolute highest priority.
The "gate" is the entry point where liquid metal enters the part, and "overflows" are auxiliary cavities outside the final part geometry. Skilled tooling engineers design the gates to direct the first shot of metal (which collects the most trapped air and oxidized lubricant) straight through the part and into the overflows. These porous overflows are then sheared off during post-processing, leaving only dense, solid metal in the final heat sink structure.
Procurement managers and designers cannot rely entirely on the foundry to fix porosity; the part geometry itself dictates how the metal flows.

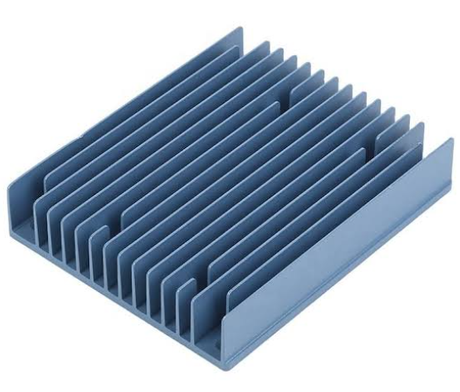

Following strict die cast heat sink design rules is the first line of defense against shrinkage porosity. Engineers must avoid designing massive, thick baseplates adjacent to ultra-thin fins. Gradual transitions and uniform wall thicknesses ensure that the metal cools evenly.
If your thermal calculations demand a massive baseplate combined with extremely high-density, thin fins, die casting will likely fail due to internal voids. In these extreme cases, you must compare die casting vs CNC machining heat sinks or evaluate die cast vs skived fin heat sinks, as both CNC and skiving utilize solid extruded billet aluminum with zero internal porosity.
Even with perfect gating and vacuum assistance, some micro-porosity is inherent to the casting process. The goal is to move that porosity to non-critical areas.

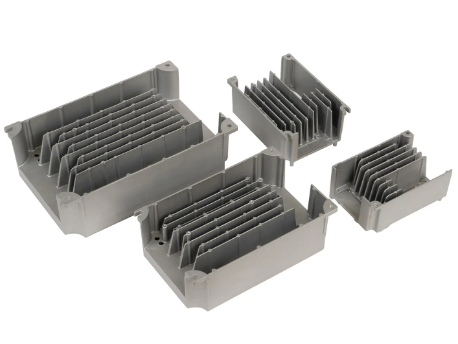

For critical components like die-cast aluminum heat sinks for servo, LED and automotive applications, manufacturers use industrial X-ray equipment to inspect the baseplate. The inspection validates that the crucial thermal zones under the power electronics are free of macroscopic voids.
Porosity becomes highly visible—and problematic—during secondary CNC machining. When face-milling the mounting pedestal for an IGBT, the cutting tool may slice into a hidden gas bubble, leaving a pit on the surface. This pit prevents the thermal interface material (TIM) from spreading evenly, degrading thermal performance.
This is why understanding die cast heat sink tolerances and dimensional accuracy is critical; if you machine too deep into a casting, you bypass the dense outer "skin" and expose the porous internal core. Furthermore, if the heat sink features liquid cooling channels, exposed porosity will cause coolant leaks, making 100% leak testing mandatory for cold plates.
Porosity is the most critical quality metric in die-cast thermal management. Gas bubbles and shrinkage voids act as thermal insulators that bottleneck heat transfer, leading to unpredictable device failures. By specifying vacuum-assisted casting, adhering to uniform wall thickness design rules, and requiring X-ray verification of critical mounting zones, engineers can eliminate thermal resistance spikes and ensure reliable component cooling.
To determine if tooling up for a high-quality casting makes economic sense for your project, review our guide on die cast heat sink cost and volume breakeven. When you are ready to proceed, download our custom die cast heat sink RFQ checklist to prepare your files for manufacturing.
Kingka is a premier precision manufacturer with over 16 years of expertise and ISO 9001:2015 certification. Equipped with more than 50 CNC machines, we offer free DFM and thermal analysis within 24 hours to help you design porosity-free components. We ensure flawless mass production through a strict 4-round inspection protocol and 100% leak testing for all liquid-cooled parts. Contact Kingka’s engineering team today to secure reliable, high-performance thermal solutions.
Can porosity in a die-cast heat sink be completely eliminated?
No. Due to the high-velocity physics of the injection process, zero-porosity die casting is practically impossible. However, advanced methods like vacuum-assisted casting and optimal gate design can reduce porosity to negligible levels and direct it away from critical thermal zones.
Why is porosity worse in thicker sections of the heat sink?
Thicker sections take longer to cool and solidify than thin fins. As the thin fins freeze, they block the flow of liquid metal to the thick base. When the base finally cools, it shrinks without additional metal to fill the volume, creating internal tears known as shrinkage porosity.
How does porosity affect CNC machining?
If a casting has severe internal porosity, a CNC cutting tool will expose those voids as it mills away the surface layer. This leaves craters on the mating surfaces, which ruins the flatness required for effective thermal grease (TIM) application and compromises O-ring seals.
What is vacuum-assisted die casting?
It is a process where a vacuum pump removes the air from the steel mold cavity just before the molten aluminum is injected. This drastically reduces the amount of air that can be trapped inside the metal, minimizing gas porosity.
Does porosity affect the structural strength of the heat sink?
Yes. Large internal voids reduce the cross-sectional density of the aluminum, lowering its tensile strength and making it more prone to cracking under heavy mechanical loads or high torque from mounting bolts.
If I cannot tolerate any porosity, what manufacturing method should I use?
If your application requires an absolutely dense, void-free thermal path, you should use CNC machining, cold forging, or skiving. These processes use solid, pre-extruded aluminum billets that have no internal air pockets.
