How to Source a Custom Die Cast Heat Sink: RFQ Checklist & DFM Questions

Sending a vague Request for Quote (RFQ) to a thermal management manufacturer guarantees two outcomes: highly inflated pricing to cover unknown risks, or a lowball bid that results in tooling delays and catastrophic thermal failures. Sourcing a reliable die casting heat sink requires bridging the gap between your engineering team's thermal requirements and the factory's metallurgical constraints. This guide provides procurement managers and hardware engineers with a definitive die cast heat sink RFQ checklist, alongside the critical Design for Manufacturability (DFM) questions you must ask to evaluate a supplier's true capability.

1. Defining the Core Thermal and Mechanical Envelope

Before you ask how to order custom heat sink components, your internal team must establish rigid boundaries regarding power dissipation and physical space. A manufacturer cannot optimize a mold if the operating environment is undefined.

First, determine if tooling is actually justified. Comparing die casting vs CNC machining heat sinks is mandatory at the RFQ stage. CNC machining is recommended when your annual volume is under 1,000 units or you require rapid prototypes. Die casting is better when your volume exceeds 3,000 units and you need to integrate structural housings.

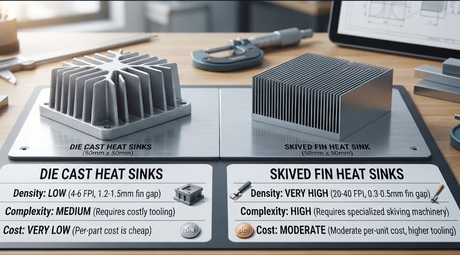

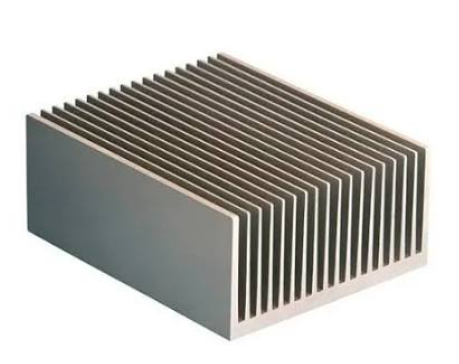

If your thermal load is massive but your enclosure space is extremely tight (like a 1U server), you must also evaluate die cast vs skived fin heat sinks. Skiving is recommended when extreme fin density is required; casting is recommended when you need complex 3D features and a lower unit cost at mass volumes.

2. The Comprehensive Die Cast Heat Sink RFQ Checklist

To receive an accurate die casting heat sink quote, copy and paste this data checklist into your procurement package. Providing this exact information eliminates guesswork and accelerates the supplier's DFM analysis.

To select the correct material for your RFQ, refer to our guide on ADC12 vs A380 alloy selection for die cast heat sinks. Specifying ADC12 is generally preferred for high-density fins due to its excellent fluidity during injection.

Additionally, you must clearly define your volume expectations so the supplier can calculate the exact die cast heat sink cost and volume breakeven, helping you choose between a single-cavity mold for lower upfront cost or a multi-cavity mold for the lowest piece price.

3. Crucial DFM Review Questions for Your Supplier

A DFM review heat sink consultation is the most important step before cutting tooling steel. Do not accept a quote from a supplier who does not challenge your CAD model. Ask your prospective manufacturer these specific die cast heat sink supplier questions:

"How will you manage internal porosity beneath our critical thermal zones?"

Trapped air destroys thermal conductivity. Uncontrolled porosity in die cast heat sinks will cause your power components to overheat. A premium supplier will propose vacuum-assisted die casting or specify exact gating and overflow locations to pull gas away from your IGBT mounting pedestals.

"What are the specific violations of design rules in our current CAD?"

Suppliers should actively highlight walls that are too thick or fins that lack taper. Ensure they adhere to established die cast heat sink design rules, such as maintaining a minimum wall thickness of 1.5mm to 2.0mm and keeping fin aspect ratios under 12:1 to prevent cold shuts.

4. Evaluating Secondary Machining and Surface Treatments

Die casting produces a near-net shape, but it rarely produces a finished part ready for assembly.

When requesting a quote for components like die-cast aluminum heat sinks for servo, LED and automotive applications, you must define the required surface finish. Do you need an IP65 O-ring groove? The as-cast surface is too rough for a proper seal. You must ask the supplier to include CNC machining for the groove.

To prevent miscommunication regarding geometric precision, clearly reference standard die cast heat sink tolerances and dimensional accuracy. Specify a machining allowance (typically 0.5mm) on surfaces that require face-milling, ensuring the CNC tool can cut beneath the cast skin to achieve flatness below 0.05mm.

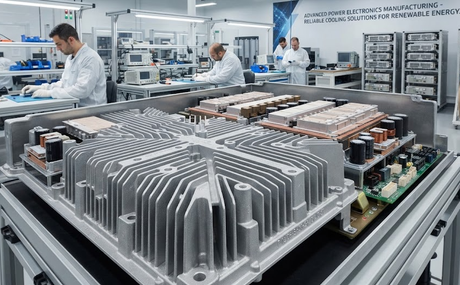

For outdoor infrastructure, such as die cast heat sinks for solar inverters, ask the supplier about their conversion coating and powder coating capabilities. Severe environments demand strict salt-spray testing, and anodizing die-cast alloys is strictly prohibited due to their high silicon content.

5. Validating Supplier Quality and Inspection Protocols

The final stage of evaluating a custom die cast heat sink supplier is verifying their quality assurance infrastructure. A low tooling quote is useless if the factory ships warped parts with internal voids.

Look for a manufacturer that operates the complete production chain in-house. Relying on a foundry that subcontracts its CNC machining introduces massive dimensional risks and finger-pointing when parts fail.

6. Conclusion

Sourcing a custom thermal enclosure requires meticulous preparation. By compiling a strict RFQ package that defines your thermal loads, alloy preferences, and annual volumes, you force suppliers to quote accurately. Furthermore, by demanding a rigorous DFM review focusing on draft angles, porosity control, and secondary CNC tolerances, you protect your tooling investment from costly revisions. Always partner with a manufacturer that possesses both heavy casting capability and precision machining expertise under one roof.

To streamline your next procurement cycle, utilize our comprehensive custom die cast heat sink RFQ checklist. Kingka is a premier B2B precision manufacturer with over 16 years of thermal engineering expertise and ISO 9001:2015 certification. Operating over 50 advanced CNC machines alongside our die-casting cells, we offer free DFM and thermal analysis within 24 hours. Kingka protects your supply chain with a stringent 4-round inspection protocol and 100% leak testing for all liquid-cooled solutions. Contact our engineering team today to receive a precise, mass-production-ready quote.

FAQ

What is DFM, and why is it free with premium suppliers?

DFM stands for Design for Manufacturability. Premium suppliers offer this review for free during the quoting phase because adjusting the CAD model to include proper draft angles and uniform wall thicknesses prevents the factory from damaging their steel tools and reduces overall scrap rates.

How long does it take to get a custom die cast heat sink quote?

If you provide a complete RFQ package (3D CAD, 2D drawings with tolerances, alloy, and EAU), a professional manufacturer can typically return an accurate quote and preliminary DFM report within 24 to 48 hours.

Should I request anodizing on my die cast heat sink RFQ?

No. Die casting alloys like ADC12 and A380 contain high levels of silicon, which does not anodize properly. It results in a blotchy, dark gray, porous finish. Request a chromate-free conversion coating followed by powder coating for environmental protection.

What is the minimum order quantity (MOQ) for a custom die casting?

While MOQs vary by factory, die casting generally requires a minimum batch size of 1,000 to 2,000 units to justify the lengthy setup time of installing the heavy steel mold into the casting machine and calibrating the thermal cycle.

Why does the supplier need to know my heat sink's power dissipation?

Knowing the wattage allows the supplier's thermal engineers to verify if your proposed fin density and base thickness are actually capable of cooling the component. This prevents you from paying for tooling on a design that is fundamentally flawed.

Do I own the die cast tooling after I pay for it?

Yes, standard industry practice dictates that the OEM buyer owns the steel tooling once the NRE invoice is paid. However, the mold typically remains at the supplier's facility for maintenance and ongoing production runs.
