When thermal loads escalate within confined electronic footprints, standard extrusion fails. Engineers are then forced into a critical process decision: prioritizing extreme thermal surface area or prioritizing structural enclosure integration. A die casting heat sink offers unparalleled 3D shape freedom and mass-production economy, but metallurgical physics restrict its fin density. Skiving, conversely, slices solid metal into ultra-dense fin arrays, maximizing heat dissipation but sacrificing structural complexity. This guide compares both technologies to help B2B buyers precisely match their thermal constraints, enclosure needs, and production volumes with the correct manufacturing process.
Table of Contents

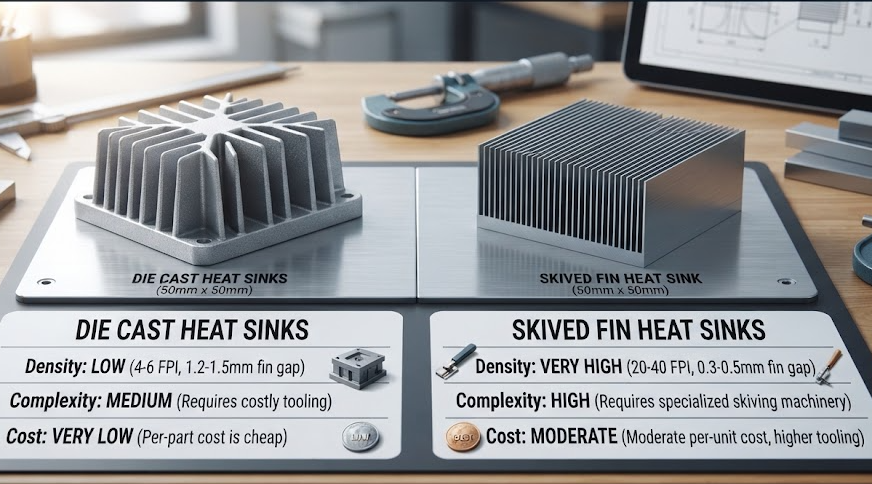

To evaluate a die cast vs skived fin heat sink properly, you must understand how the metal is formed.
Die casting injects molten aluminum into a highly complex, two-part steel mold under immense pressure. The metal takes the exact shape of the cavity, allowing for integrated housings, ribs, and mounting points. However, the steel tool requires draft angles and minimum thicknesses to survive the casting process without breaking.
Skiving is a subtractive mechanical process. A specialized CNC cutting tool slices into a solid block of extruded aluminum or copper at a shallow angle. Instead of removing the metal as chips, the blade peels the metal up, curling it into a perfectly vertical fin. Because the fins are carved directly from the base material, there is no joint interface, yielding excellent structural and thermal continuity.
The primary reason engineers seek out skived solutions is to maximize convective surface area in space-constrained environments, such as 1U telecommunications servers or compact power inverters.
Adhering to standard die cast heat sink design rules introduces a strict die casting fin density limit. Due to the viscosity of molten metal and the fragility of the steel mold inserts, die-cast fins require a minimum gap of 2.5mm to 3.0mm at the root, a draft angle of 1 to 2 degrees, and a maximum aspect ratio (height to gap) of approximately 10:1 or 12:1. Attempting to cast denser fins results in premature freezing (cold shuts) and tool breakage.
In stark contrast, skived fin heat sink density is extraordinary. Skiving can achieve fin thicknesses as thin as 0.2mm, gaps as narrow as 0.5mm, and aspect ratios exceeding 40:1 or 50:1. When you use skived fin technology, you can pack up to three times more cooling surface area into the exact same spatial footprint compared to a die casting.
A die cast heat sink vs skived comparison strongly favors skiving when examining raw material thermal conductivity.
Because skiving uses solid extruded blocks, it utilizes pure, highly conductive alloys like Aluminum 1060 (approx 230 W/m·K) or even pure Copper (approx 400 W/m·K). Die casting, however, requires silicon additives to make the metal flow. As detailed in our guide on ADC12 vs A380 alloy selection for die cast heat sinks, die-cast alloys generally peak around 96 to 120 W/m·K.
Furthermore, skiving guarantees a solid, uniform thermal path. Die casting naturally traps microscopic air bubbles during high-velocity injection. Severe porosity in die cast heat sinks can act as an internal thermal barrier right beneath your power component. Skived fins, cut from solid billet, have zero internal porosity, ensuring flawless heat spreading.
While skiving dominates thermal performance, it entirely lacks geometric freedom. Skiving only creates straight fins on a flat plate.
If your component is a die-cast aluminum heat sinks for servo, LED and automotive applications, you likely need an integrated housing. Die casting can form the cooling fins, the PCB mounting standoffs, EMI shielding walls, and an IP65-rated O-ring groove all in one single piece of metal. This drastically reduces your Bill of Materials (BOM) and assembly labor.
If you choose a skived heat sink for these applications, you must design and manufacture a separate external housing, increasing total system complexity. This is why heavy-duty outdoor equipment, such as die cast heat sinks for solar inverters, relies on the robust, multi-functional nature of casting. Even though die casting requires flat mating surfaces to be faced on a mill—a requirement explored in die casting vs CNC machining heat sinks—the overall reduction in parts heavily favors casting for integrated enclosures.
Knowing when to use skived fin technology also depends heavily on your procurement budget and annual production volume.
Skiving requires no expensive custom molds. Setup involves programming the CNC skiving machine and securing the raw material block. This makes it exceptional for prototyping or low-to-medium volume production. However, skiving is slow; the machine cuts one fin at a time. The per-piece machine cost remains high, regardless of volume.
Die casting requires a massive upfront investment in H13 steel tooling, often exceeding $20,000 to $40,000. Yet, once the mold is running, a part is produced every 45 seconds. By calculating the die cast heat sink cost and volume breakeven, buyers generally find that casting becomes undeniably cheaper after 5,000 to 10,000 units.
Additionally, buyers must enforce strict die cast heat sink tolerances and dimensional accuracy protocols. Because skived fins are very thin and delicate, they are easily damaged in transit, whereas cast fins are robust and structurally rigid.
To simplify the skived vs cast heat sink procurement process, use the following framework to align your thermal and mechanical constraints.
Factor | Skived Fin Heat Sink | Die Cast Heat Sink | Recommendation |
Fin Density / Aspect Ratio | Extreme (up to 50:1) | Limited (up to 12:1) | Skived for space-constrained, high-power cooling. |
Tooling Investment | Very Low | Very High | Skived for low volumes; Cast for mass scale. |
Material Conductivity | Excellent (Al1060 / Copper) | Moderate (ADC12 / A380) | Skived for extreme junction temperature limits. |
Geometric Freedom | Poor (2D fins on flat base) | Excellent (3D housings) | Cast for integrated IP-rated enclosures. |
Decision Rules:
· Skived fins are recommended when your thermal load is massive, the spatial footprint is strictly limited (e.g., a 1U server chassis), and you need raw thermal conductivity without complex housing features.
· Die casting is better when your annual production volume is high (>10,000 units) and the heat sink must act as an integrated structural enclosure, reducing the overall assembly BOM.
Choosing between a die cast vs skived fin heat sink forces a compromise between absolute thermal dissipation and structural manufacturing economy. Skiving shatters the density limits of traditional casting, offering ultra-thin fins and pure material conductivity for the most demanding electronic thermal loads. However, die casting remains the undisputed champion for high-volume, highly integrated 3D enclosures that eliminate secondary assembly parts. By clearly defining your volume targets and space constraints, you can specify the exact manufacturing process that protects both your junction temperatures and your profit margins.
When you are ready to evaluate your thermal management design for manufacturability, utilize our custom die cast heat sink RFQ checklist to structure your data. Kingka is a premier thermal solutions manufacturer with over 16 years of engineering expertise and ISO 9001:2015 certification. Operating over 50 advanced CNC machines alongside our high-pressure casting facilities, we provide objective, technology-agnostic recommendations. We offer free DFM and thermal analysis within 24 hours, supported by a rigorous 4-round inspection protocol and 100% leak testing for liquid applications. Contact Kingka’s engineering team today to optimize your cooling strategy.
Can a skived heat sink be made of copper?
Yes. Skiving is one of the few high-density fin processes that works exceptionally well with pure copper, delivering unparalleled thermal conductivity (approx 400 W/m·K) for extreme heat-flux applications like CPU and GPU cooling.
Are skived fins stronger than die-cast fins?
No, they are generally much weaker. Because skived fins can be as thin as 0.2mm, they are easily bent or crushed if handled improperly or dropped. Die-cast fins are thicker, feature draft angles, and are highly rigid.
Does a skived heat sink have interface resistance?
No. Unlike bonded fin or swaged fin heat sinks where individual fins are glued or mechanically pressed into a baseplate, skived fins are peeled directly from the solid base block. The base and the fins are a single continuous piece of metal, resulting in zero thermal interface resistance.
Can I anodize a skived heat sink?
Yes. Because skived aluminum heat sinks are typically made from pure extruded alloys like 1060 or 6061, they take standard cosmetic and hard anodizing perfectly. Die-cast alloys (like ADC12) turn gray or black and look highly inconsistent when anodized.
Is it possible to add O-ring grooves to a skived heat sink?
You can CNC machine an O-ring groove into the base of a skived heat sink, provided the base plate is thick enough. However, you cannot integrate complex, deep vertical walls or connector ports like you can with a die casting.
Why is there a limit to fin density in die casting?
In die casting, the space between the fins in the product is formed by a blade of steel in the mold. If the fins are too close together, that steel blade becomes too thin and will snap off under the extreme pressure of the molten aluminum injection.
