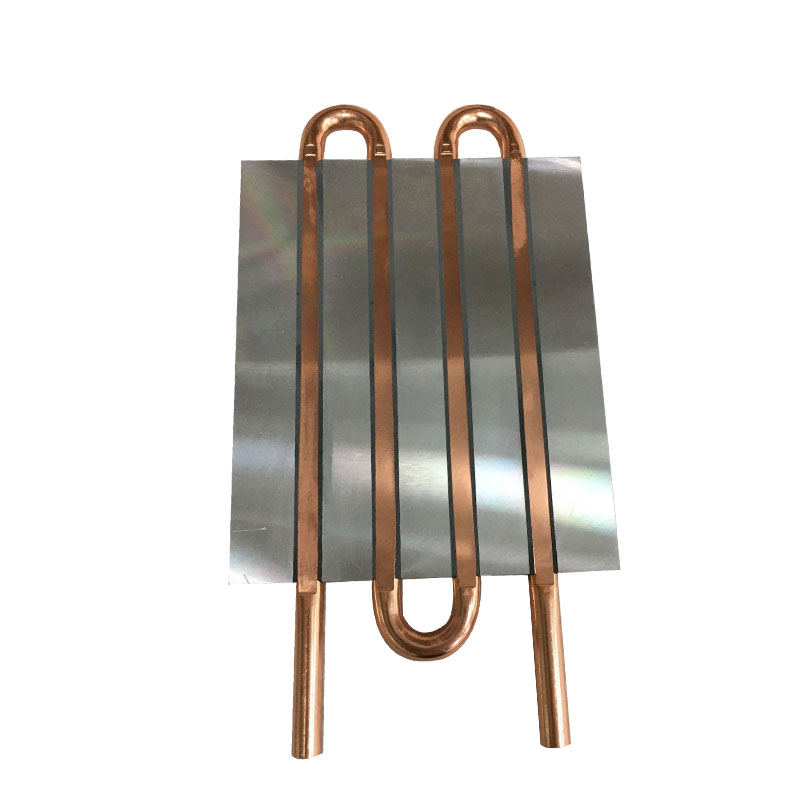

4 Pass Copper Tube FSW Liquid Cold Plate

The 4 Pass Copper Tube FSW Liquid Cold Plate is engineered for advanced thermal management in high-performance applications. Utilizing a unique four-pass design, this cold plate maximizes heat transfer efficiency by optimizing the flow of coolant through a network of copper tubes. Ideal for cooling demanding electronic components such as CPUs, GPUs, and power electronics, this liquid cold plate ensures reliable performance and longevity in critical environments.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Key Features:

  • Efficient Heat Transfer: The copper construction provides excellent thermal conductivity, facilitating rapid heat dissipation from components.

  • Four-Pass Design: The innovative four-pass configuration enhances coolant flow and maximizes surface contact area, leading to superior cooling performance.

  • Compact and Lightweight: Designed to fit into space-constrained environments without sacrificing cooling efficiency.

  • Customizable Options: Available in various sizes and configurations to meet specific application requirements.

  • Durable Construction: Built to withstand harsh conditions, ensuring long-lasting performance in demanding applications.

4-pass-copper-tube-cold-plate-24-pass-copper-tube-cold-plate-1

Specifications:

Parameter

Value

Material

Copper (C11000)

Maximum Operating Pressure

150 psi

Maximum Operating Temperature

80°C (176°F)

Dimensions

Customizable (Contact for details)

Inlet/Outlet Size

1/4" NPT or customizable

Flow Rate

Optimized for high flow

Applications:

The 4 Pass Copper Tube FSW Liquid Cold Plate is suitable for a variety of applications, including:

  • High-Performance Computing: Ideal for cooling CPUs and GPUs in servers and workstations.

  • Power Electronics: Effective in managing heat in power supplies and converters.

  • Telecommunications Equipment: Ensures reliable operation of communication devices under heavy loads.

  • Industrial Machinery: Provides efficient thermal management for industrial equipment and automation systems.

  • Renewable Energy Systems: Used in cooling solutions for solar inverters and battery management systems.

Benefits:

  • Enhanced Cooling Efficiency: The four-pass design significantly improves heat transfer rates, ensuring optimal performance of critical components.

  • Space-Saving Design: Compact size allows for integration into tight spaces without compromising thermal performance.

  • Custom Solutions Available: Tailored designs can be created to meet specific thermal management needs across various industries.

Conclusion:

The 4 Pass Copper Tube FSW Liquid Cold Plate is the ideal solution for those seeking reliable and efficient cooling in high-performance applications. With its superior design and customizable options, it provides exceptional thermal management to protect your valuable electronic components. For inquiries or custom orders, please contact us today!
