Cooling For 900W IGBT

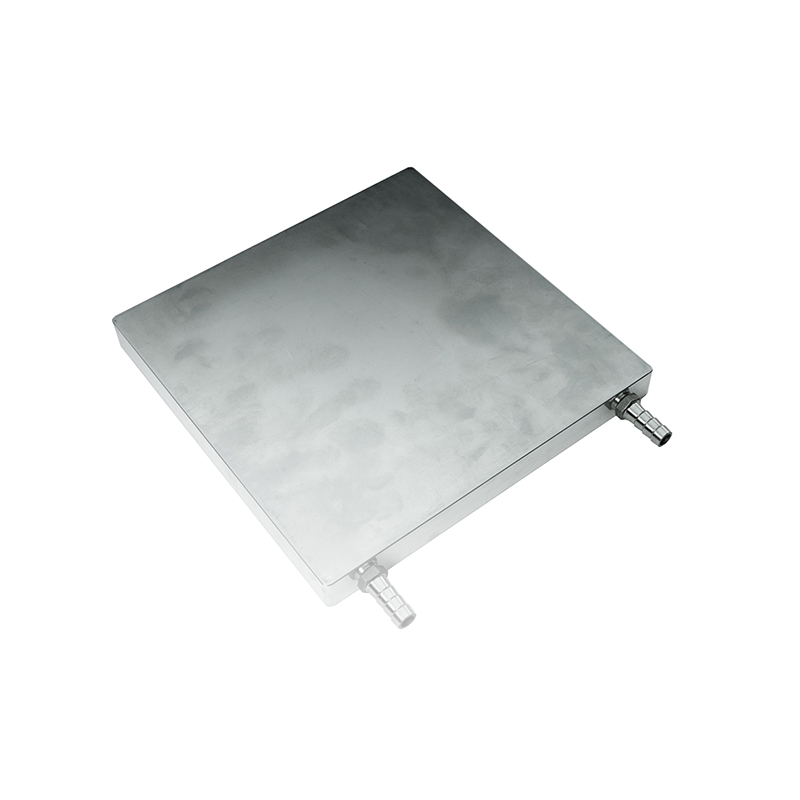

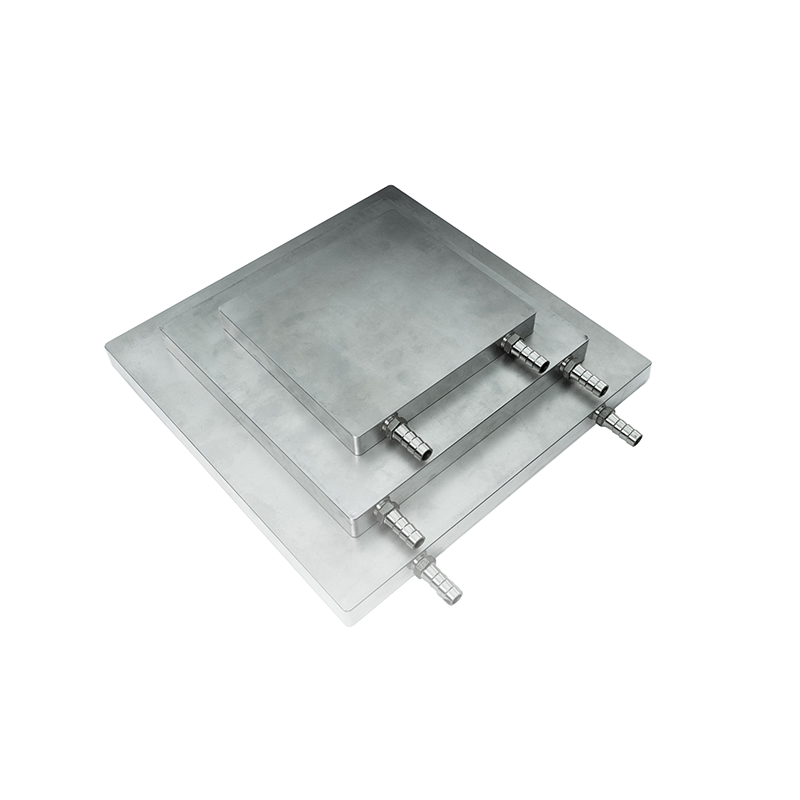

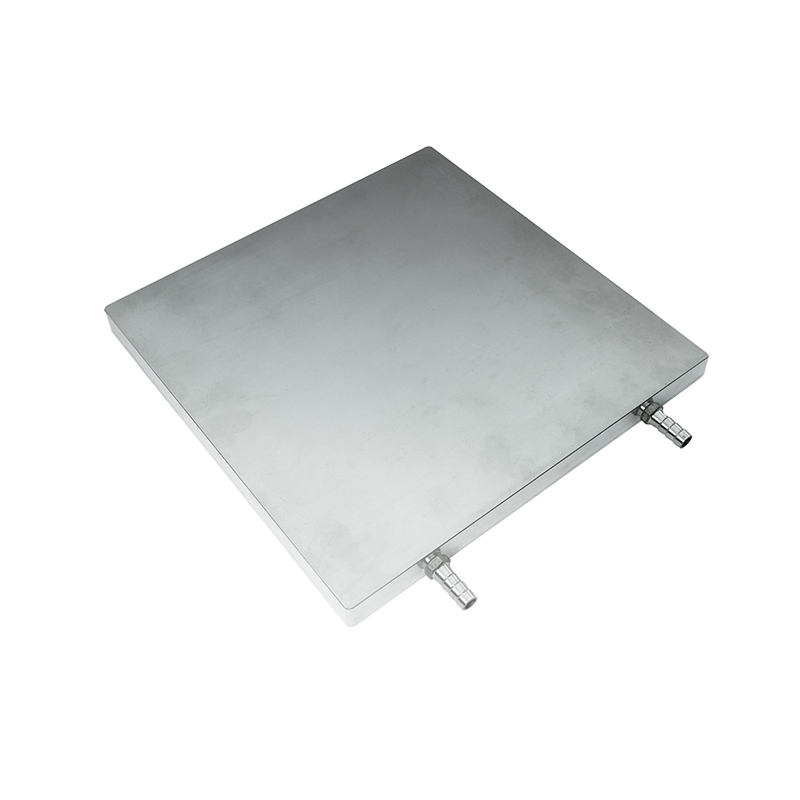

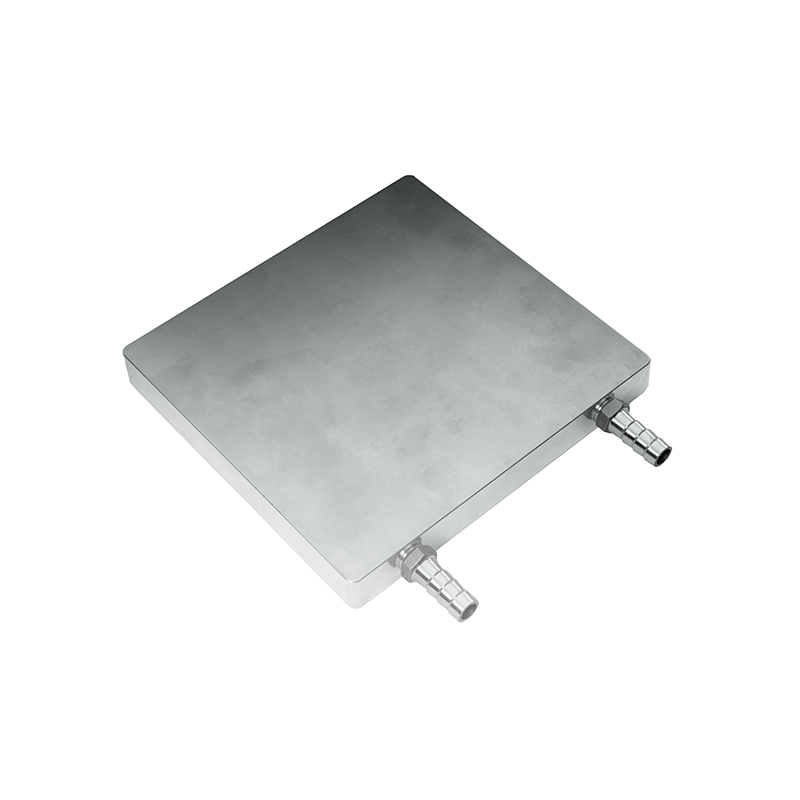

KingKa's FSW Cold Plates for 900W IGBT Modules provide the high-capacity liquid cooling these demanding power devices require. High-flow channel designs pull the elevated heat load away from the module baseplate, while friction stir welding seals the plate for leak-free service at high pressure and continuous duty.

For high-power inverters, traction drives and renewable converters running 900W-class IGBTs, these plates deliver the thermal margin and reliability that keep power electronics within their junction-temperature limits.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Cooling For 900W IGBT (3)Cooling For 900W IGBT (4)

Construction and Materials

The aluminum or copper base is machined with a high-flow channel network sized to the 900W IGBT heat load and footprint, then sealed with a solid-state FSW cover. The design balances heat extraction with pressure drop so the module runs cool without overloading the coolant circuit. The FSW joint is flux-free and robust against the pressure and thermal cycling of high-power service.

Key Characteristics

High-power 900W capacity

Channel design sized for elevated IGBT heat loads.

High-flow network

Balanced heat extraction and pressure drop.

FSW leak-free seal

Solid-state joint for continuous high-pressure duty.

Thermal margin

Headroom to hold junction temperatures in range.

100% leak & flow tested

Validated before shipment.

Technical Specifications

Base Plate Material Aluminum / Copper (to drawing)
Cooling Circuit CNC-machined channels, solid-state FSW-sealed
Joining Technology Solid-state Friction Stir Welding (FSW) - no flux, no filler metal
CNC Machining Tolerance As tight as +/-0.005 mm (high-speed milling / turning)
Dimensional Inspection Hexagon CMM +/-0.001 mm; 2.5D optical projector
Leak Testing 100% airtightness leak detection (4 x LCP leakage testers)
Flow Validation Two-stage flow-resistance test
Surface Control Fly-cut / ground mounting face; Kett film-thickness & roughness testers
Quality System ISO 9001:2015; IATF 16949:2016
Coolant Handling Airtight-cleaned, residue-free channels; coolant matched to your system
Lead Time Typical samples 7-15 days; production scheduled to volume

Note: the table lists KingKa's verified build options and capabilities. Final geometry, passes, ports and finish are confirmed against your drawing.

Manufacturing and Quality Control

KingKa controls every step of the build in-house, from incoming-material inspection to final flow testing. The workflow below reflects the FSW construction used for this liquid cold plate.

Process flow

  • Thermal design & DFM. 3D Pro/E layout and CFD review of the internal channels before any metal is cut, so the flow path matches your heat map and pressure-drop budget.

  • CNC channel machining. Channels, fins and port features are milled in the aluminum or copper base on 50+ CNC centers (3-/4-/5-axis), then the cover plate is positioned for welding.

  • Friction Stir Welding. A rotating tool forges the cover to the base below the melting point on two China-Aerospace FSW machines - a flux-free, solid-state seal with no porosity path.

  • Finish & validation. The welded plate is fly-cut flat, then every assembly passes 100% airtightness leak detection and a two-stage flow-resistance test before CMM dimensional sign-off.

What we verify on every plate

  • 100% airtightness leak detection - four dedicated LCP leakage testers confirm every assembly.

  • Two-stage flow-resistance test - channels are clear and pressure-stable.

  • Hexagon CMM & 2.5D projector - dimensional verification to +/-0.001 mm against your drawing.

  • Airtight internal cleaning - residue-free channels ready for your coolant.

  • Salt-spray & Kett film/roughness - corrosion and surface-finish validation per batch.

Application Scenarios

900W IGBT cooling plates are built for the top of the power range:

  • 900W IGBT modules

  • High-power inverters

  • Traction and propulsion drives

  • Renewable energy converters

  • Heavy industrial power systems

Customization and OEM Service

Share your 900W IGBT module footprint, heat load and coolant conditions. KingKa designs the high-flow channel network and FSW-seals the plate to your interface and acceptance criteria.

Procurement Advantages

For buyers, KingKa is a direct manufacturer with 16+ years of thermal-production experience, 50+ CNC centers (3-/4-/5-axis) and a stated 60,000+ parts per year, certified to ISO 9001:2015 and IATF 16949:2016. Engineering support includes in-house CFD thermal simulation and 3D design before tooling.

  • From drawing to volume. Send your STEP/CAD file and thermal budget for a CFD-backed proposal.

  • Flexible supply. Prototypes typically 7-15 days; production scheduled to your forecast.

  • One quality system. Prototype, pilot and production all carry 100% leak and CMM inspection.

  • R&D backing. Dongguan Nancheng R&D center supports design, validation and scale-up.
