CNC Custom Liquid Cold Plate

KingKa's CNC Custom Liquid Cold Plates are machined to your exact envelope and heat map, then sealed by solid-state Friction Stir Welding (FSW). When an off-the-shelf plate cannot match your channel layout, mounting pattern or port positions, a CNC custom build is the direct route to a leak-free, high-power-density cooling module.

Built by a direct manufacturer with 50+ CNC centers and in-house FSW, these plates suit OEMs in power electronics, medical, laser and industrial equipment who need one design executed precisely and scaled reliably - with CFD review before tooling.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

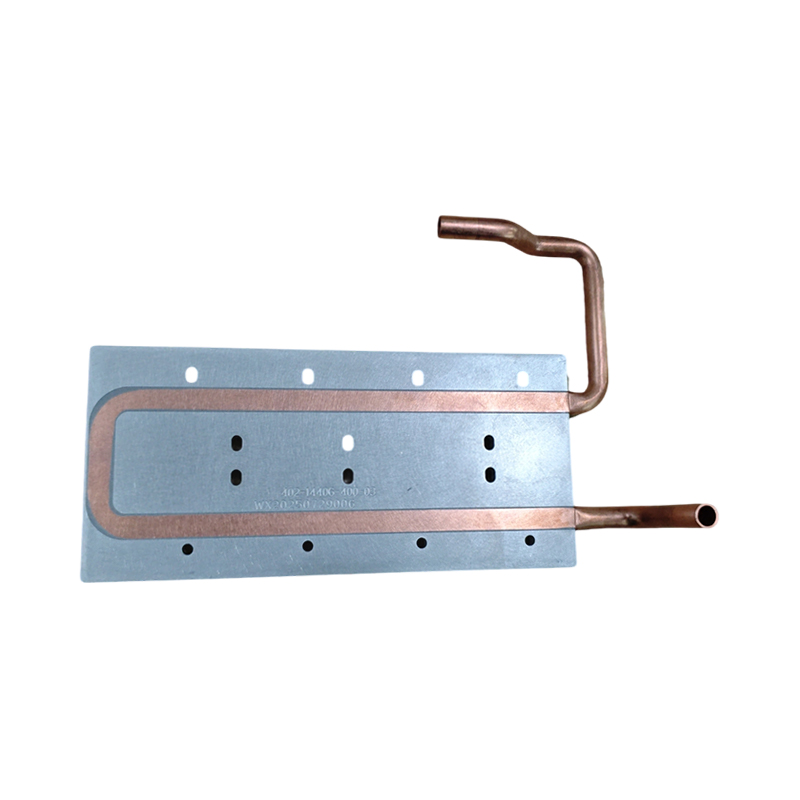

Liquid Cold Plate (6).jpg

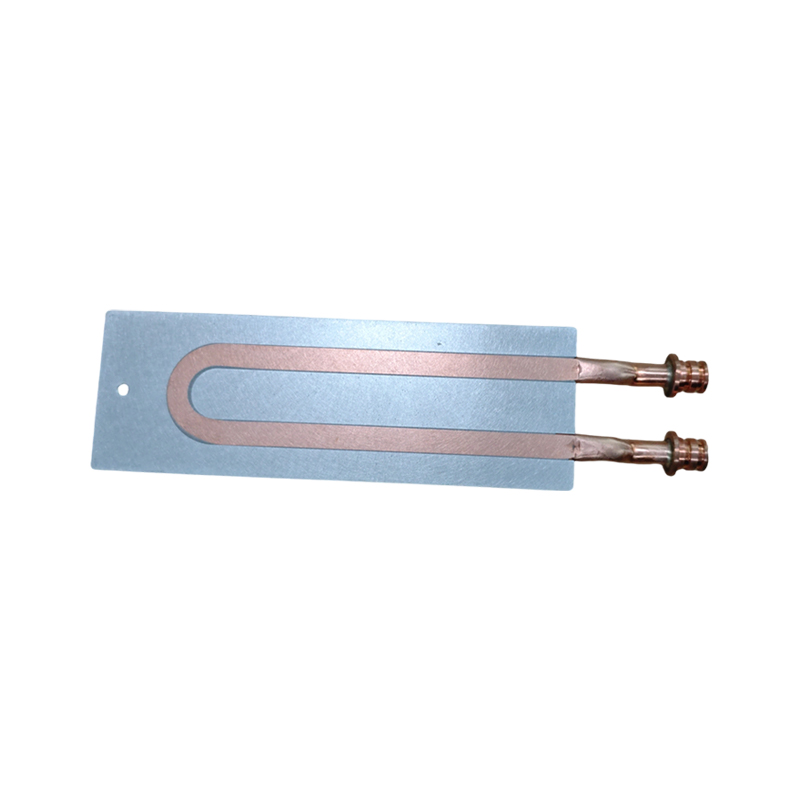

Liquid Cold Plate (8).jpg

Construction and Materials

Channels, fins and manifold features are precision-milled in an Aluminum 6061/6063 or Copper 1100 base to your drawing, then sealed with an FSW cover plate. Because the passages are machined rather than formed by bent tube, the internal route is free to follow irregular heat maps, dense screw-hole patterns and tight mounting constraints. Ports, threads and mounting holes are finished to your interface.

Key Characteristics

Fully custom geometry

Channel route, ports and mounting match your CAD and heat map.

FSW leak-free seal

Solid-state welded cover - no flux, no filler, no porosity path.

Precision CNC

Machined as tight as +/-0.005 mm on high-speed centers.

CFD-backed design

3D Pro/E and CFD review before any metal is cut.

100% leak tested

Every plate passes airtightness and flow validation.

Technical Specifications

Base Plate Material

Aluminum / Copper (to drawing)

Cooling Circuit

CNC-machined channels, solid-state FSW-sealed

Joining Technology

Solid-state Friction Stir Welding (FSW) - no flux, no filler metal

CNC Machining Tolerance

As tight as +/-0.005 mm (high-speed milling / turning)

Dimensional Inspection

Hexagon CMM +/-0.001 mm; 2.5D optical projector

Leak Testing

100% airtightness leak detection (4 x LCP leakage testers)

Flow Validation

Two-stage flow-resistance test

Surface Control

Fly-cut / ground mounting face; Kett film-thickness & roughness testers

Quality System

ISO 9001:2015; IATF 16949:2016

Coolant Handling

Airtight-cleaned, residue-free channels; coolant matched to your system

Lead Time

Typical samples 7-15 days; production scheduled to volume

Note: the table lists KingKa's verified build options and capabilities. Final geometry, passes, ports and finish are confirmed against your drawing.

Manufacturing and Quality Control

KingKa controls every step of the build in-house, from incoming-material inspection to final flow testing. The workflow below reflects the FSW construction used for this liquid cold plate.

Process flow

  • Thermal design & DFM. 3D Pro/E layout and CFD review of the internal channels before any metal is cut, so the flow path matches your heat map and pressure-drop budget.

  • CNC channel machining. Channels, fins and port features are milled in the aluminum or copper base on 50+ CNC centers (3-/4-/5-axis), then the cover plate is positioned for welding.

  • Friction Stir Welding. A rotating tool forges the cover to the base below the melting point on two China-Aerospace FSW machines - a flux-free, solid-state seal with no porosity path.

  • Finish & validation. The welded plate is fly-cut flat, then every assembly passes 100% airtightness leak detection and a two-stage flow-resistance test before CMM dimensional sign-off.

What we verify on every plate

  • 100% airtightness leak detection - four dedicated LCP leakage testers confirm every assembly.

  • Two-stage flow-resistance test - channels are clear and pressure-stable.

  • Hexagon CMM & 2.5D projector - dimensional verification to +/-0.001 mm against your drawing.

  • Airtight internal cleaning - residue-free channels ready for your coolant.

  • Salt-spray & Kett film/roughness - corrosion and surface-finish validation per batch.

Application Scenarios

CNC custom FSW cold plates are specified wherever an air-cooled sink runs out of margin or the geometry will not accept a standard plate:

  • Power electronics and motor drives

  • Medical and diagnostic equipment

  • Industrial lasers and optics

  • Test & measurement and laboratory systems

  • Custom OEM thermal modules

Customization and OEM Service

Send your STEP/IGS model, heat map and interface requirements. KingKa returns a DFM and channel-design proposal covering material (aluminum or copper), port positions, finish and inspection plan - then manufactures from prototype to volume.

Procurement Advantages

For buyers, KingKa is a direct manufacturer with 16+ years of thermal-production experience, 50+ CNC centers (3-/4-/5-axis) and a stated 60,000+ parts per year, certified to ISO 9001:2015 and IATF 16949:2016. Engineering support includes in-house CFD thermal simulation and 3D design before tooling.

  • From drawing to volume. Send your STEP/CAD file and thermal budget for a CFD-backed proposal.

  • Flexible supply. Prototypes typically 7-15 days; production scheduled to your forecast.

  • One quality system. Prototype, pilot and production all carry 100% leak and CMM inspection.

  • R&D backing. Dongguan Nancheng R&D center supports design, validation and scale-up.
