CNC Machined Water Cold Plate for Thermal Management

KingKa's CNC Machined Water Cold Plates are a dependable liquid-cooling route when air cooling no longer keeps pace with your heat load. Internal water channels are precision-milled and sealed by Friction Stir Welding, delivering a compact, leak-free plate that mounts directly to your heat sources.

Manufactured on 50+ CNC centers and validated with 100% leak and flow testing, these plates serve industrial electronics, motor drives, power supplies and telecom hardware that need reliable thermal management without exotic materials.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

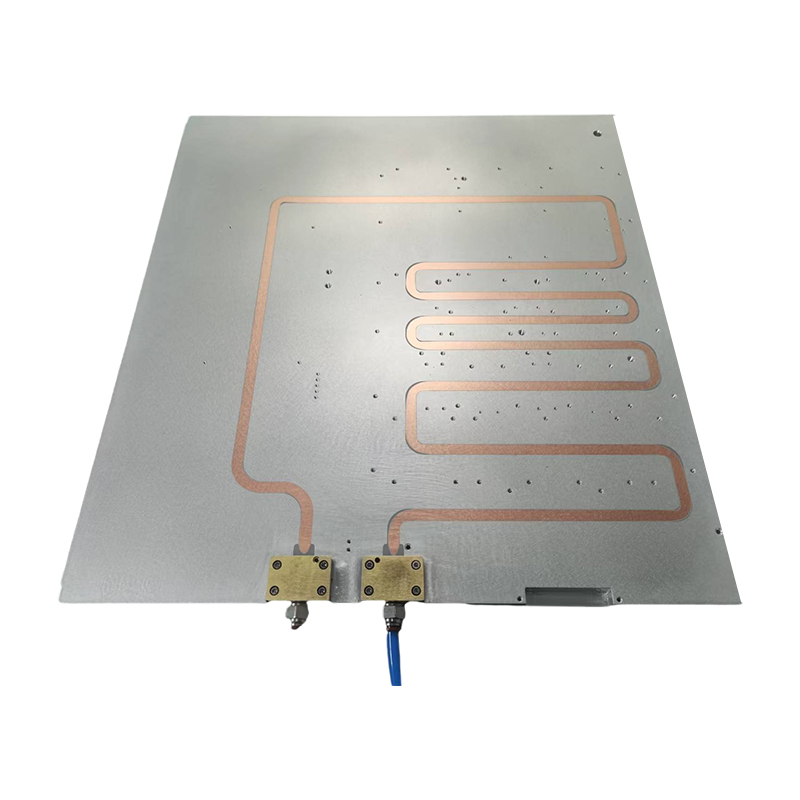

Liquid Cold Plate (5).jpg

Construction and Materials

The Aluminum 6061/6063 base is CNC-milled with coolant channels, fins and port features, then sealed with an FSW cover plate. Machining tolerances reach +/-0.005 mm on high-speed centers, so the plate, ports and mounting interface match your drawing for a straightforward system fit.

Key Characteristics

Precision CNC machining

Tight tolerances on channels, ports and mounting features.

FSW solid-state seal

Leak-free joints without flux or filler metal.

Flexible channel layout

Serpentine, parallel or pin-fin paths to suit your pressure-drop budget.

Cost-effective liquid cooling

A practical step up from air cooling for mid-range heat loads.

100% leak & flow tested

Every assembly validated before shipment.

Technical Specifications

Base Plate Material

Aluminum 6061/6063

Cooling Circuit

CNC-machined channels, solid-state FSW-sealed

Joining Technology

Solid-state Friction Stir Welding (FSW) - no flux, no filler metal

CNC Machining Tolerance

As tight as +/-0.005 mm (high-speed milling / turning)

Dimensional Inspection

Hexagon CMM +/-0.001 mm; 2.5D optical projector

Leak Testing

100% airtightness leak detection (4 x LCP leakage testers)

Flow Validation

Two-stage flow-resistance test

Surface Control

Fly-cut / ground mounting face; Kett film-thickness & roughness testers

Quality System

ISO 9001:2015; IATF 16949:2016

Coolant Handling

Airtight-cleaned, residue-free channels; coolant matched to your system

Lead Time

Typical samples 7-15 days; production scheduled to volume

Note: the table lists KingKa's verified build options and capabilities. Final geometry, passes, ports and finish are confirmed against your drawing.

Manufacturing and Quality Control

KingKa controls every step of the build in-house, from incoming-material inspection to final flow testing. The workflow below reflects the FSW construction used for this liquid cold plate.

Process flow

  • Thermal design & DFM. 3D Pro/E layout and CFD review of the internal channels before any metal is cut, so the flow path matches your heat map and pressure-drop budget.

  • CNC channel machining. Channels, fins and port features are milled in the aluminum or copper base on 50+ CNC centers (3-/4-/5-axis), then the cover plate is positioned for welding.

  • Friction Stir Welding. A rotating tool forges the cover to the base below the melting point on two China-Aerospace FSW machines - a flux-free, solid-state seal with no porosity path.

  • Finish & validation. The welded plate is fly-cut flat, then every assembly passes 100% airtightness leak detection and a two-stage flow-resistance test before CMM dimensional sign-off.

What we verify on every plate

  • 100% airtightness leak detection - four dedicated LCP leakage testers confirm every assembly.

  • Two-stage flow-resistance test - channels are clear and pressure-stable.

  • Hexagon CMM & 2.5D projector - dimensional verification to +/-0.001 mm against your drawing.

  • Airtight internal cleaning - residue-free channels ready for your coolant.

  • Salt-spray & Kett film/roughness - corrosion and surface-finish validation per batch.

Application Scenarios

These machined water cold plates fit a wide range of mid-power thermal-management duties:

  • Industrial electronics and drives

  • Motor controllers and inverters

  • Power supplies and chargers

  • Telecom and networking hardware

  • Test benches and general thermal management

Customization and OEM Service

Provide your drawing or envelope and KingKa machines the channels, ports and mounting features to match - with CFD review available when the flow path needs optimizing.

Procurement Advantages

For buyers, KingKa is a direct manufacturer with 16+ years of thermal-production experience, 50+ CNC centers (3-/4-/5-axis) and a stated 60,000+ parts per year, certified to ISO 9001:2015 and IATF 16949:2016. Engineering support includes in-house CFD thermal simulation and 3D design before tooling.

  • From drawing to volume. Send your STEP/CAD file and thermal budget for a CFD-backed proposal.

  • Flexible supply. Prototypes typically 7-15 days; production scheduled to your forecast.

  • One quality system. Prototype, pilot and production all carry 100% leak and CMM inspection.

  • R&D backing. Dongguan Nancheng R&D center supports design, validation and scale-up.
