Custom Liquid Cold Plate

KingKa's Custom Liquid Cold Plates are engineered and built to your exact specification - any envelope, channel layout, port configuration and finish. Rather than forcing your design around a catalog part, we machine and FSW-seal the cold plate around your heat map and mechanical interface.

As a direct manufacturer with in-house CFD, 50+ CNC centers and FSW, KingKa supports OEMs from first prototype through volume production, with 100% leak and dimensional inspection on every unit.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

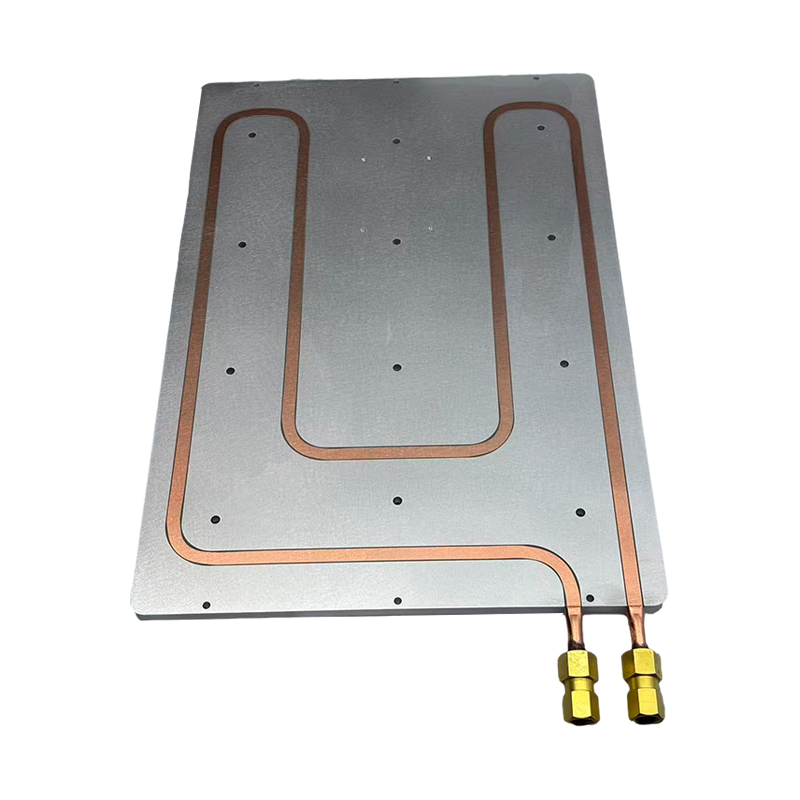

Liquid Cold Plate (1).jpg

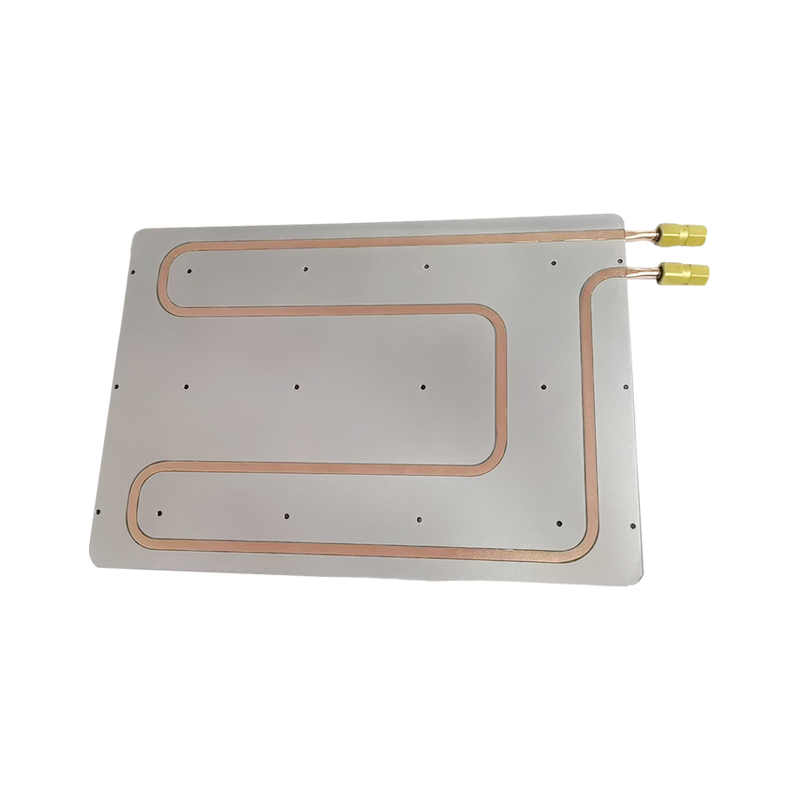

Liquid Cold Plate (2).jpg

Construction and Materials

Custom plates are CNC-milled in Aluminum 6061/6063 or Copper 1100 to your drawing, with channels, fins, ports and mounting features machined to match. The cover is sealed by solid-state Friction Stir Welding for a leak-free joint. Because the design is fully custom, material, channel geometry and finish are selected against your thermal, pressure and weight targets.

Key Characteristics

Full custom build

Any envelope, channel route, port and finish.

Aluminum or copper

Material chosen for your conductivity and weight needs.

FSW leak-free seal

Solid-state welded channels with no flux contamination.

CFD-backed design

Thermal and flow review before tooling.

Prototype to volume

One process from first samples to full production.

Technical Specifications

Base Plate Material

Aluminum / Copper (to drawing)

Cooling Circuit

CNC-machined channels, solid-state FSW-sealed

Joining Technology

Solid-state Friction Stir Welding (FSW) - no flux, no filler metal

CNC Machining Tolerance

As tight as +/-0.005 mm (high-speed milling / turning)

Dimensional Inspection

Hexagon CMM +/-0.001 mm; 2.5D optical projector

Leak Testing

100% airtightness leak detection (4 x LCP leakage testers)

Flow Validation

Two-stage flow-resistance test

Surface Control

Fly-cut / ground mounting face; Kett film-thickness & roughness testers

Quality System

ISO 9001:2015; IATF 16949:2016

Coolant Handling

Airtight-cleaned, residue-free channels; coolant matched to your system

Lead Time

Typical samples 7-15 days; production scheduled to volume

Note: the table lists KingKa's verified build options and capabilities. Final geometry, passes, ports and finish are confirmed against your drawing.

Manufacturing and Quality Control

KingKa controls every step of the build in-house, from incoming-material inspection to final flow testing. The workflow below reflects the FSW construction used for this liquid cold plate.

Process flow

  • Thermal design & DFM. 3D Pro/E layout and CFD review of the internal channels before any metal is cut, so the flow path matches your heat map and pressure-drop budget.

  • CNC channel machining. Channels, fins and port features are milled in the aluminum or copper base on 50+ CNC centers (3-/4-/5-axis), then the cover plate is positioned for welding.

  • Friction Stir Welding. A rotating tool forges the cover to the base below the melting point on two China-Aerospace FSW machines - a flux-free, solid-state seal with no porosity path.

  • Finish & validation. The welded plate is fly-cut flat, then every assembly passes 100% airtightness leak detection and a two-stage flow-resistance test before CMM dimensional sign-off.

What we verify on every plate

  • 100% airtightness leak detection - four dedicated LCP leakage testers confirm every assembly.

  • Two-stage flow-resistance test - channels are clear and pressure-stable.

  • Hexagon CMM & 2.5D projector - dimensional verification to +/-0.001 mm against your drawing.

  • Airtight internal cleaning - residue-free channels ready for your coolant.

  • Salt-spray & Kett film/roughness - corrosion and surface-finish validation per batch.

Application Scenarios

A custom liquid cold plate is the answer when your thermal and mechanical requirements will not fit a standard part:

  • OEM power electronics

  • Automotive and EV modules

  • Medical and laboratory equipment

  • Industrial automation

  • Any high-power application needing a tailored cold plate

Customization and OEM Service

Send your drawing or a full requirement set - heat load, envelope, coolant, mounting, volume. KingKa proposes the channel design and material, manufactures, and validates to your acceptance criteria.

Procurement Advantages

For buyers, KingKa is a direct manufacturer with 16+ years of thermal-production experience, 50+ CNC centers (3-/4-/5-axis) and a stated 60,000+ parts per year, certified to ISO 9001:2015 and IATF 16949:2016. Engineering support includes in-house CFD thermal simulation and 3D design before tooling.

  • From drawing to volume. Send your STEP/CAD file and thermal budget for a CFD-backed proposal.

  • Flexible supply. Prototypes typically 7-15 days; production scheduled to your forecast.

  • One quality system. Prototype, pilot and production all carry 100% leak and CMM inspection.

  • R&D backing. Dongguan Nancheng R&D center supports design, validation and scale-up.
