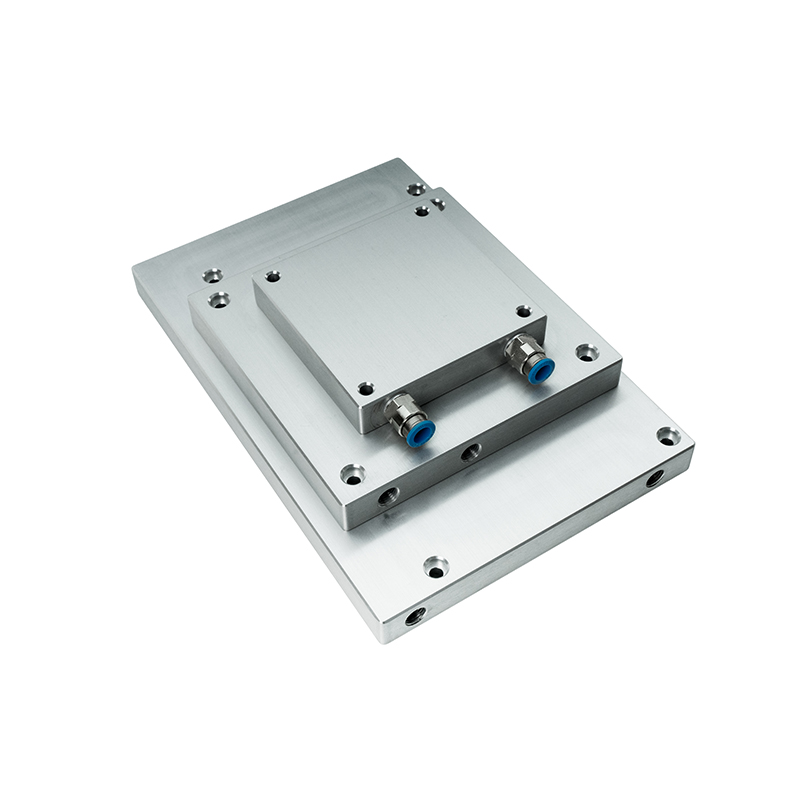

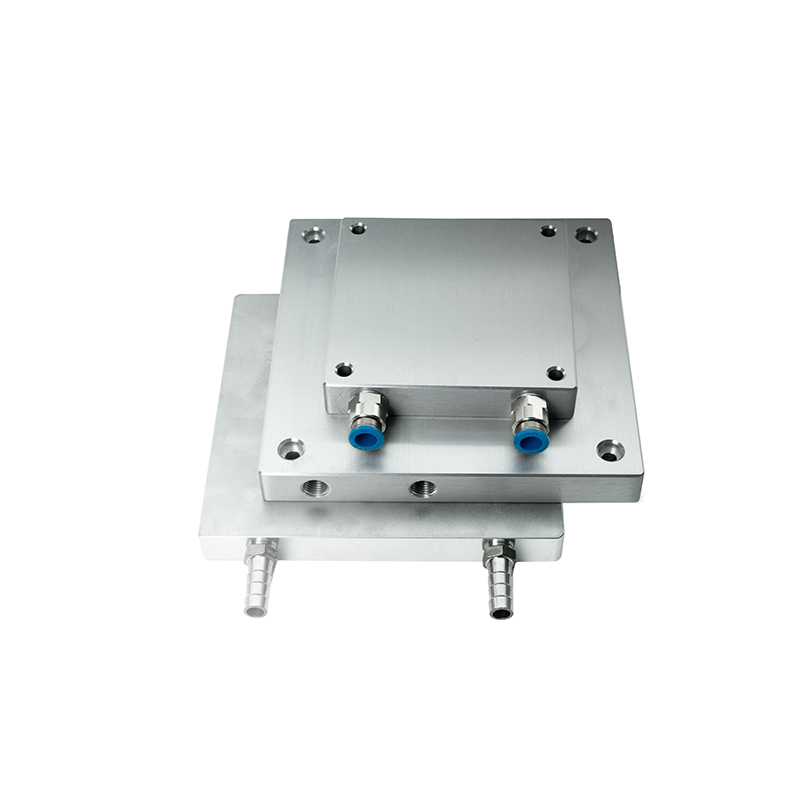

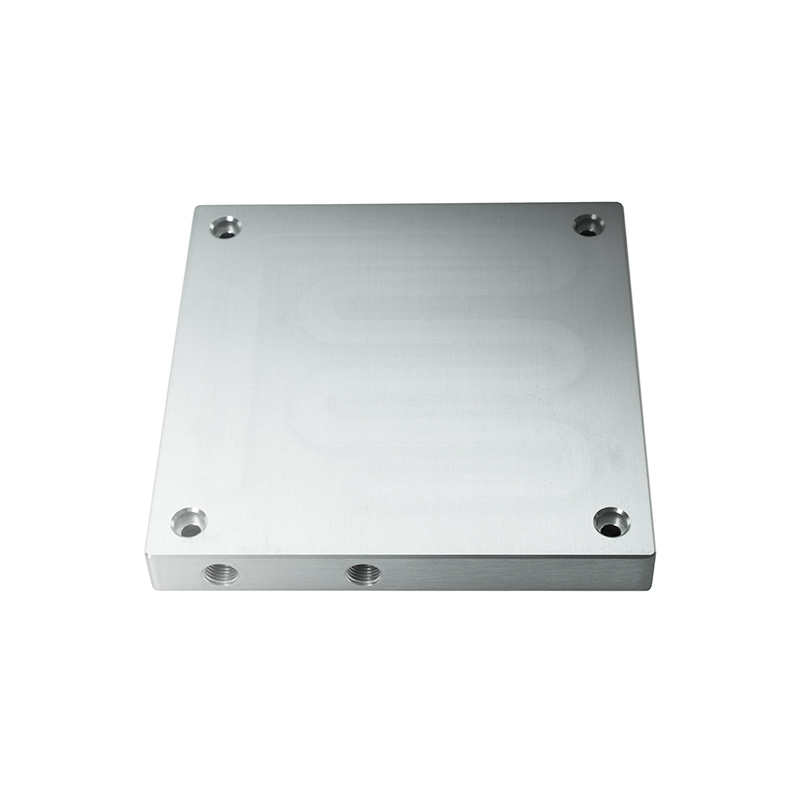

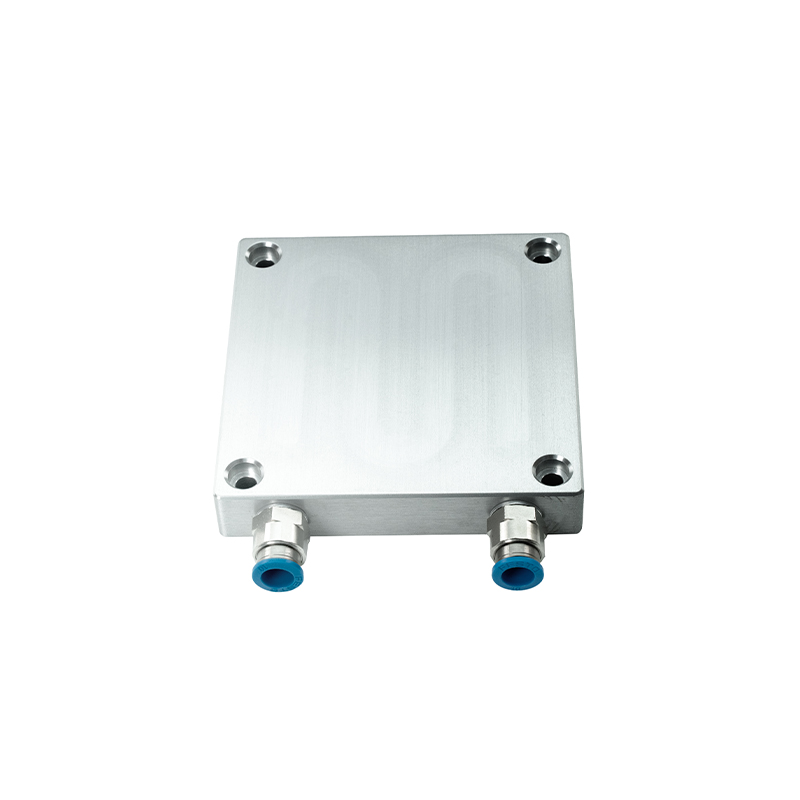

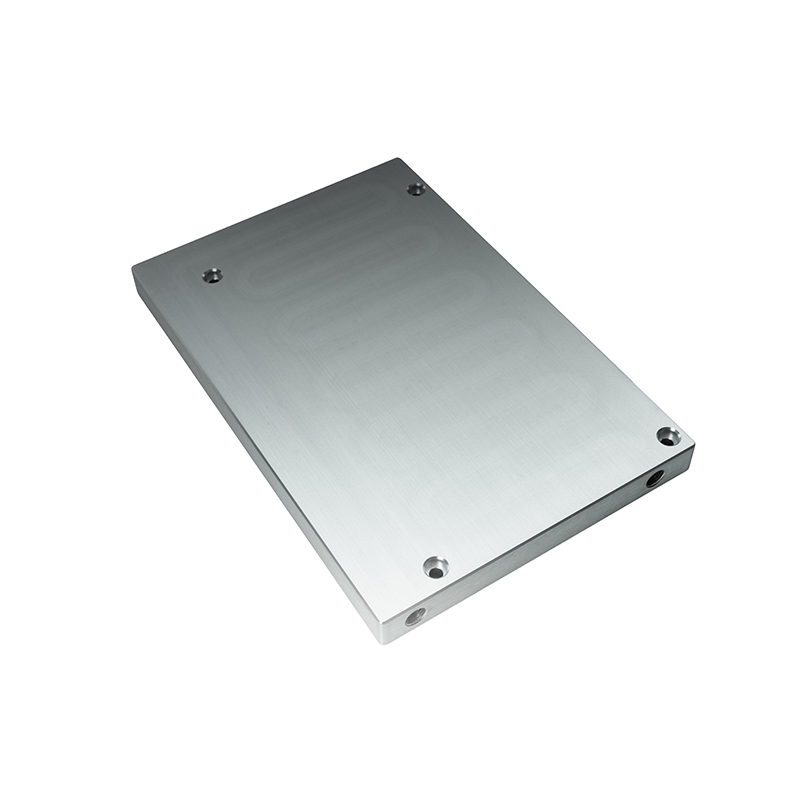

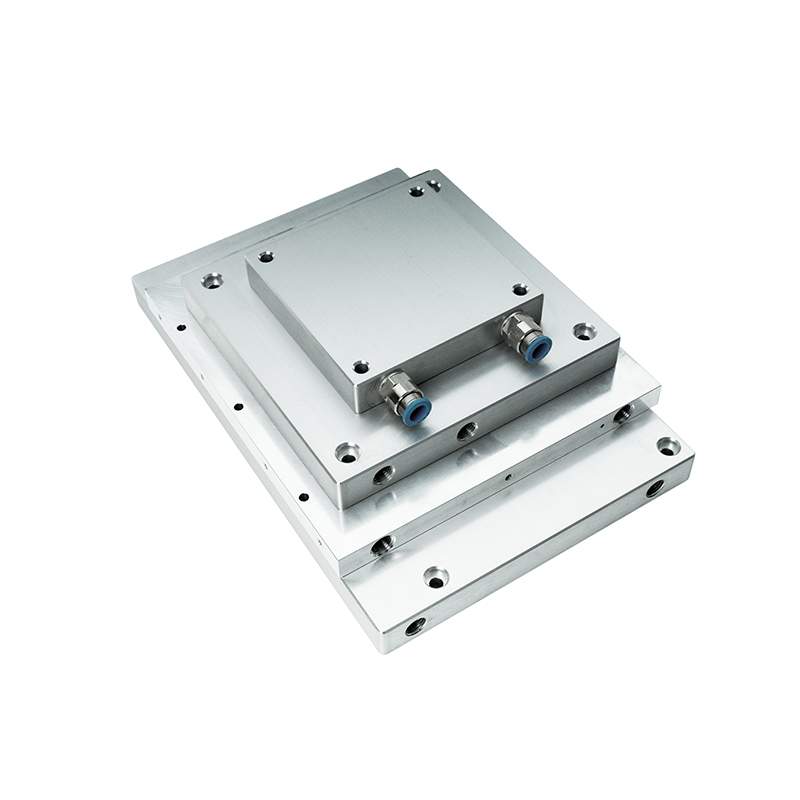

Custom Size FSW Liquid Cold Plate

KingKa manufactures FSW Liquid Cold Plates in custom sizes - from compact module-level plates to large-format assemblies. Whatever your envelope, the coolant channels are CNC-machined and sealed by solid-state Friction Stir Welding for a leak-free, high-power-density result.

With 50+ CNC centers and multi-axis FSW, KingKa supports the size range that standard catalogs rarely cover, for data-center racks, battery systems, large converters and industrial equipment.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Custom Size FSW Liquid Cold Plate (2)Custom Size FSW Liquid Cold Plate (5)

Construction and Materials

Plates are produced to your specified size in Aluminum 6061/6063 or Copper 1100. Channels and ports are CNC-milled across the full envelope, and the cover is FSW-sealed along the weld path. Size does not compromise the process - the same solid-state seal, machining tolerances and validation apply from small to large plates.

Key Characteristics

Any size envelope

Compact modules through large-format plates.

FSW solid-state seal

Leak-free welding across the full size range.

CNC channels & ports

Machined features to your drawing at any scale.

Material flexibility

Aluminum or copper for your thermal and weight targets.

100% leak tested

Validated regardless of plate size.

Technical Specifications

Base Plate Material Aluminum / Copper (to drawing)
Cooling Circuit CNC-machined channels, solid-state FSW-sealed
Joining Technology Solid-state Friction Stir Welding (FSW) - no flux, no filler metal
CNC Machining Tolerance As tight as +/-0.005 mm (high-speed milling / turning)
Dimensional Inspection Hexagon CMM +/-0.001 mm; 2.5D optical projector
Leak Testing 100% airtightness leak detection (4 x LCP leakage testers)
Flow Validation Two-stage flow-resistance test
Surface Control Fly-cut / ground mounting face; Kett film-thickness & roughness testers
Quality System ISO 9001:2015; IATF 16949:2016
Coolant Handling Airtight-cleaned, residue-free channels; coolant matched to your system
Lead Time Typical samples 7-15 days; production scheduled to volume

Note: the table lists KingKa's verified build options and capabilities. Final geometry, passes, ports and finish are confirmed against your drawing.

Manufacturing and Quality Control

KingKa controls every step of the build in-house, from incoming-material inspection to final flow testing. The workflow below reflects the FSW construction used for this liquid cold plate.

Process flow

  • Thermal design & DFM. 3D Pro/E layout and CFD review of the internal channels before any metal is cut, so the flow path matches your heat map and pressure-drop budget.

  • CNC channel machining. Channels, fins and port features are milled in the aluminum or copper base on 50+ CNC centers (3-/4-/5-axis), then the cover plate is positioned for welding.

  • Friction Stir Welding. A rotating tool forges the cover to the base below the melting point on two China-Aerospace FSW machines - a flux-free, solid-state seal with no porosity path.

  • Finish & validation. The welded plate is fly-cut flat, then every assembly passes 100% airtightness leak detection and a two-stage flow-resistance test before CMM dimensional sign-off.

What we verify on every plate

  • 100% airtightness leak detection - four dedicated LCP leakage testers confirm every assembly.

  • Two-stage flow-resistance test - channels are clear and pressure-stable.

  • Hexagon CMM & 2.5D projector - dimensional verification to +/-0.001 mm against your drawing.

  • Airtight internal cleaning - residue-free channels ready for your coolant.

  • Salt-spray & Kett film/roughness - corrosion and surface-finish validation per batch.

Application Scenarios

Custom-size FSW plates cover the envelopes standard products cannot:

  • Data-center racks and large servers

  • Battery packs and energy storage

  • Large power converters

  • Industrial machinery

  • Any application needing a non-standard envelope

Customization and OEM Service

Send your envelope, heat map and coolant conditions. KingKa confirms manufacturing feasibility for the size, designs the channel network and FSW-seals the plate to your drawing.

Procurement Advantages

For buyers, KingKa is a direct manufacturer with 16+ years of thermal-production experience, 50+ CNC centers (3-/4-/5-axis) and a stated 60,000+ parts per year, certified to ISO 9001:2015 and IATF 16949:2016. Engineering support includes in-house CFD thermal simulation and 3D design before tooling.

  • From drawing to volume. Send your STEP/CAD file and thermal budget for a CFD-backed proposal.

  • Flexible supply. Prototypes typically 7-15 days; production scheduled to your forecast.

  • One quality system. Prototype, pilot and production all carry 100% leak and CMM inspection.

  • R&D backing. Dongguan Nancheng R&D center supports design, validation and scale-up.
