High Efficiency Liquid Cooling Plate

KingKa's High Efficiency Liquid Cooling Plates target high heat-flux hotspots where standard flow paths fall short. Internal channel geometry - pin fins, turbulators and optimized passes - is shaped by CFD to pull heat from concentrated sources while keeping pressure drop in check.

Sealed by friction stir welding and machined to tight tolerances, these plates give CPU/GPU, IGBT and laser designers a high-performance cold plate that holds junction temperatures down at full load.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

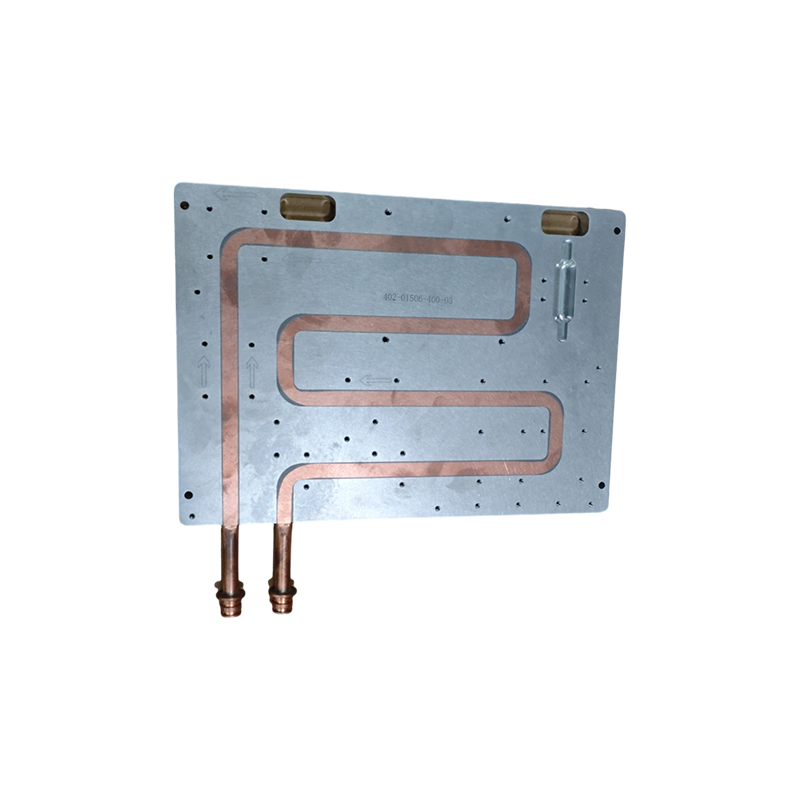

Liquid Cold Plate (9).jpg

Construction and Materials

Channels in an Aluminum 6061/6063 or Copper 1100 base are CFD-optimized for heat transfer and flow distribution, then sealed by a solid-state FSW cover. Pin-fin and turbulator features are machined directly where the hotspots sit, so cooling concentrates on the devices that need it. The result is a low-resistance thermal path from device to coolant.

Key Characteristics

Optimized channel geometry

CFD-shaped paths for high heat-flux hotspots.

Targeted cooling

Pin fins and turbulators placed at concentrated heat sources.

FSW leak-free seal

Solid-state joints for reliable high-pressure service.

Low thermal resistance

Direct, efficient path from device to coolant.

100% leak & flow tested

Performance and sealing validated per assembly.

Technical Specifications

Base Plate Material

Aluminum / Copper (to drawing)

Cooling Circuit

CNC-machined channels, solid-state FSW-sealed

Joining Technology

Solid-state Friction Stir Welding (FSW) - no flux, no filler metal

CNC Machining Tolerance

As tight as +/-0.005 mm (high-speed milling / turning)

Dimensional Inspection

Hexagon CMM +/-0.001 mm; 2.5D optical projector

Leak Testing

100% airtightness leak detection (4 x LCP leakage testers)

Flow Validation

Two-stage flow-resistance test

Surface Control

Fly-cut / ground mounting face; Kett film-thickness & roughness testers

Quality System

ISO 9001:2015; IATF 16949:2016

Coolant Handling

Airtight-cleaned, residue-free channels; coolant matched to your system

Lead Time

Typical samples 7-15 days; production scheduled to volume

Note: the table lists KingKa's verified build options and capabilities. Final geometry, passes, ports and finish are confirmed against your drawing.

Manufacturing and Quality Control

KingKa controls every step of the build in-house, from incoming-material inspection to final flow testing. The workflow below reflects the FSW construction used for this liquid cold plate.

Process flow

  • Thermal design & DFM. 3D Pro/E layout and CFD review of the internal channels before any metal is cut, so the flow path matches your heat map and pressure-drop budget.

  • CNC channel machining. Channels, fins and port features are milled in the aluminum or copper base on 50+ CNC centers (3-/4-/5-axis), then the cover plate is positioned for welding.

  • Friction Stir Welding. A rotating tool forges the cover to the base below the melting point on two China-Aerospace FSW machines - a flux-free, solid-state seal with no porosity path.

  • Finish & validation. The welded plate is fly-cut flat, then every assembly passes 100% airtightness leak detection and a two-stage flow-resistance test before CMM dimensional sign-off.

What we verify on every plate

  • 100% airtightness leak detection - four dedicated LCP leakage testers confirm every assembly.

  • Two-stage flow-resistance test - channels are clear and pressure-stable.

  • Hexagon CMM & 2.5D projector - dimensional verification to +/-0.001 mm against your drawing.

  • Airtight internal cleaning - residue-free channels ready for your coolant.

  • Salt-spray & Kett film/roughness - corrosion and surface-finish validation per batch.

Application Scenarios

High-efficiency cooling plates are specified when heat flux, not just total heat, drives the design:

  • CPU/GPU/ASIC and processor cooling

  • IGBT and power-semiconductor modules

  • High-power laser systems

  • RF and microwave power

  • Concentrated photovoltaics and optics

Customization and OEM Service

Share your heat map, device footprint and coolant conditions. KingKa runs CFD on the channel layout, then machines and FSW-seals the plate to hit your temperature and pressure-drop targets.

Procurement Advantages

For buyers, KingKa is a direct manufacturer with 16+ years of thermal-production experience, 50+ CNC centers (3-/4-/5-axis) and a stated 60,000+ parts per year, certified to ISO 9001:2015 and IATF 16949:2016. Engineering support includes in-house CFD thermal simulation and 3D design before tooling.

  • From drawing to volume. Send your STEP/CAD file and thermal budget for a CFD-backed proposal.

  • Flexible supply. Prototypes typically 7-15 days; production scheduled to your forecast.

  • One quality system. Prototype, pilot and production all carry 100% leak and CMM inspection.

  • R&D backing. Dongguan Nancheng R&D center supports design, validation and scale-up.
