Liquid Water Cooling Plate for Battery & Semiconductor Heat Sink

KingKa's Liquid Water Cooling Plates keep EV battery modules and semiconductor heat sinks within a tight temperature band. The FSW-sealed channel network spreads coolant evenly under the cells or dies, holding cell-to-cell and junction temperatures stable during fast charge, discharge and peak load.

Built from thermally conductive aluminum and sealed by friction stir welding, these plates give battery and semiconductor OEMs a flat, leak-free mounting surface that scales from single modules to full packs and arrays.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

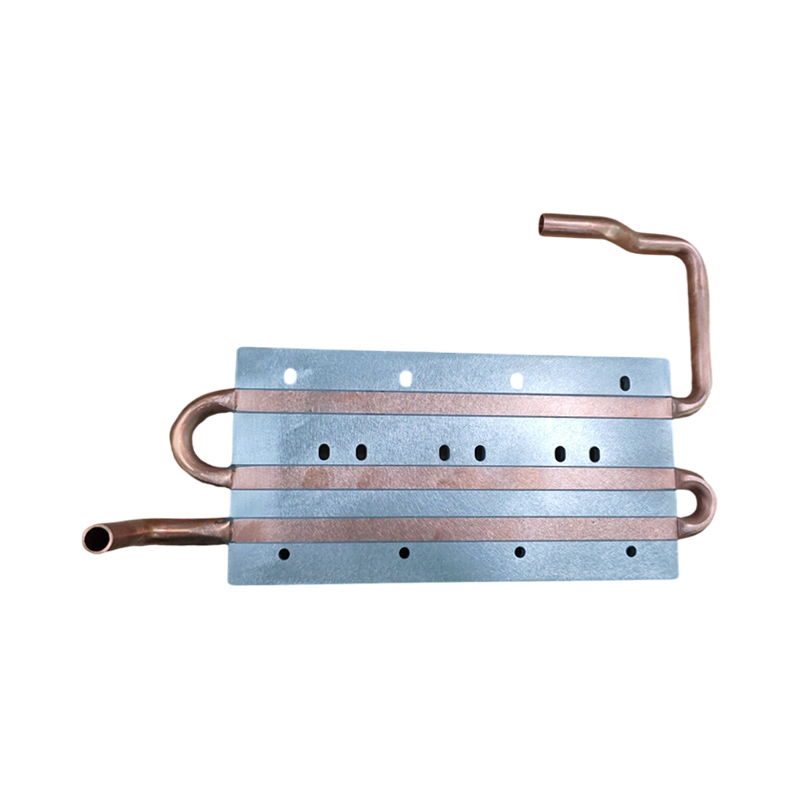

Liquid Cold Plate (7).jpg

Construction and Materials

An Aluminum 6061/6063 base carries serpentine or parallel coolant channels sized to your cell or die layout, sealed by a solid-state FSW cover. The mounting face is fly-cut flat so the battery cells or semiconductor packages sit in uniform contact, minimizing hot spots and thermal gradient across the module.

Key Characteristics

Uniform temperature

Even coolant distribution keeps cell-to-cell and junction spread low.

Flat mounting face

Fly-cut/ground surface for reliable thermal contact.

FSW leak-free seal

Solid-state weld stands up to pressure and thermal cycling.

Scalable layout

From single modules to full battery packs and arrays.

100% leak tested

Airtightness and flow validation on every plate.

Technical Specifications

Base Plate Material

Aluminum 6061/6063

Cooling Circuit

CNC-machined channels, solid-state FSW-sealed

Joining Technology

Solid-state Friction Stir Welding (FSW) - no flux, no filler metal

CNC Machining Tolerance

As tight as +/-0.005 mm (high-speed milling / turning)

Dimensional Inspection

Hexagon CMM +/-0.001 mm; 2.5D optical projector

Leak Testing

100% airtightness leak detection (4 x LCP leakage testers)

Flow Validation

Two-stage flow-resistance test

Surface Control

Fly-cut / ground mounting face; Kett film-thickness & roughness testers

Quality System

ISO 9001:2015; IATF 16949:2016

Coolant Handling

Airtight-cleaned, residue-free channels; coolant matched to your system

Lead Time

Typical samples 7-15 days; production scheduled to volume

Note: the table lists KingKa's verified build options and capabilities. Final geometry, passes, ports and finish are confirmed against your drawing.

Manufacturing and Quality Control

KingKa controls every step of the build in-house, from incoming-material inspection to final flow testing. The workflow below reflects the FSW construction used for this liquid cold plate.

Process flow

  • Thermal design & DFM. 3D Pro/E layout and CFD review of the internal channels before any metal is cut, so the flow path matches your heat map and pressure-drop budget.

  • CNC channel machining. Channels, fins and port features are milled in the aluminum or copper base on 50+ CNC centers (3-/4-/5-axis), then the cover plate is positioned for welding.

  • Friction Stir Welding. A rotating tool forges the cover to the base below the melting point on two China-Aerospace FSW machines - a flux-free, solid-state seal with no porosity path.

  • Finish & validation. The welded plate is fly-cut flat, then every assembly passes 100% airtightness leak detection and a two-stage flow-resistance test before CMM dimensional sign-off.

What we verify on every plate

  • 100% airtightness leak detection - four dedicated LCP leakage testers confirm every assembly.

  • Two-stage flow-resistance test - channels are clear and pressure-stable.

  • Hexagon CMM & 2.5D projector - dimensional verification to +/-0.001 mm against your drawing.

  • Airtight internal cleaning - residue-free channels ready for your coolant.

  • Salt-spray & Kett film/roughness - corrosion and surface-finish validation per batch.

Application Scenarios

These water cooling plates are engineered for temperature-critical battery and semiconductor thermal management:

  • EV battery packs and modules

  • Battery energy storage systems (ESS)

  • Power semiconductors and diode arrays

  • Laser diode and photonics cooling

  • Inverter and converter modules

Customization and OEM Service

Share your cell/die layout, pack envelope, heat load and coolant conditions. KingKa designs the channel network for uniform temperature, then manufactures and leak-tests the assembly to your drawing.

Procurement Advantages

For buyers, KingKa is a direct manufacturer with 16+ years of thermal-production experience, 50+ CNC centers (3-/4-/5-axis) and a stated 60,000+ parts per year, certified to ISO 9001:2015 and IATF 16949:2016. Engineering support includes in-house CFD thermal simulation and 3D design before tooling.

  • From drawing to volume. Send your STEP/CAD file and thermal budget for a CFD-backed proposal.

  • Flexible supply. Prototypes typically 7-15 days; production scheduled to your forecast.

  • One quality system. Prototype, pilot and production all carry 100% leak and CMM inspection.

  • R&D backing. Dongguan Nancheng R&D center supports design, validation and scale-up.
