Liquid Cold Plate Cooling Solution

KingKa delivers a complete Liquid Cold Plate Cooling Solution - not just a part, but the thermal design, CFD simulation, FSW manufacturing and validation that make it work in your system. One partner owns the path from concept to volume, so the plate you spec is the plate that ships.

For teams facing high heat-flux electronics in limited space, this solution approach removes the hand-off gaps between design, machining and testing - backed by in-house CFD, 50+ CNC centers and two FSW machines.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

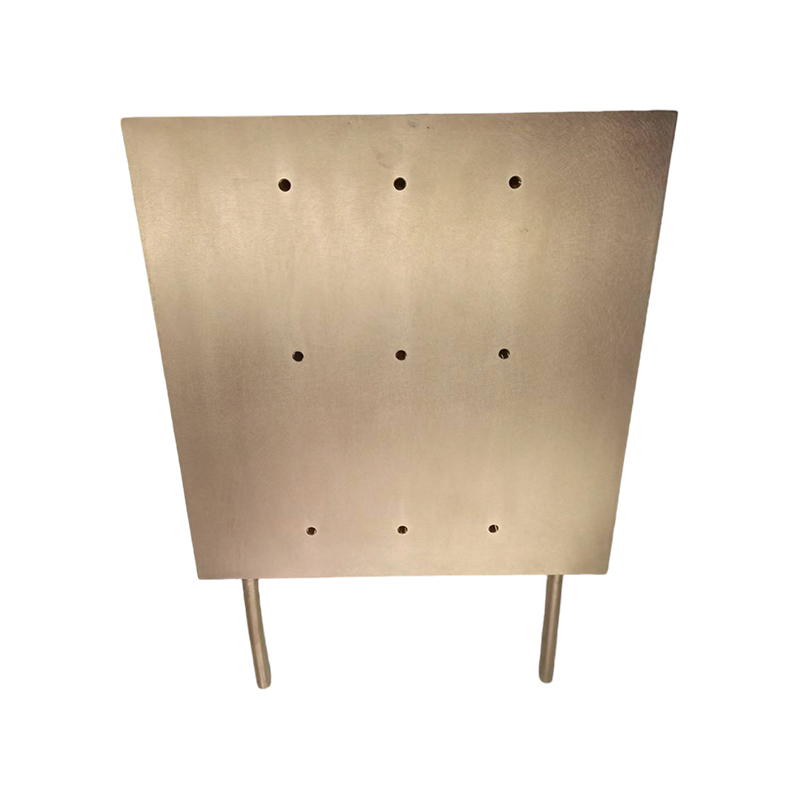

Liquid Cold Plate (4).jpg

Construction and Materials

Each solution starts from your heat map and system envelope. Channels are designed in 3D Pro/E and checked with CFD, then machined in Aluminum 6061/6063 or Copper 1100 and sealed by Friction Stir Welding. The result is a leak-free cold plate whose flow path, ports and mounting are engineered as one package against your temperature and pressure targets.

Key Characteristics

Design-led approach

CFD-optimized channels before any metal is cut.

Single-source responsibility

Design, machining, FSW and testing under one roof.

FSW leak-free build

Solid-state sealed channels for long-term reliability.

Material flexibility

Aluminum or copper selected for your thermal and weight targets.

Validated to spec

100% leak, flow and dimensional inspection before delivery.

Technical Specifications

Base Plate Material

Aluminum / Copper (to drawing)

Cooling Circuit

CNC-machined channels, solid-state FSW-sealed

Joining Technology

Solid-state Friction Stir Welding (FSW) - no flux, no filler metal

CNC Machining Tolerance

As tight as +/-0.005 mm (high-speed milling / turning)

Dimensional Inspection

Hexagon CMM +/-0.001 mm; 2.5D optical projector

Leak Testing

100% airtightness leak detection (4 x LCP leakage testers)

Flow Validation

Two-stage flow-resistance test

Surface Control

Fly-cut / ground mounting face; Kett film-thickness & roughness testers

Quality System

ISO 9001:2015; IATF 16949:2016

Coolant Handling

Airtight-cleaned, residue-free channels; coolant matched to your system

Lead Time

Typical samples 7-15 days; production scheduled to volume

Note: the table lists KingKa's verified build options and capabilities. Final geometry, passes, ports and finish are confirmed against your drawing.

Manufacturing and Quality Control

KingKa controls every step of the build in-house, from incoming-material inspection to final flow testing. The workflow below reflects the FSW construction used for this liquid cold plate.

Process flow

  • Thermal design & DFM. 3D Pro/E layout and CFD review of the internal channels before any metal is cut, so the flow path matches your heat map and pressure-drop budget.

  • CNC channel machining. Channels, fins and port features are milled in the aluminum or copper base on 50+ CNC centers (3-/4-/5-axis), then the cover plate is positioned for welding.

  • Friction Stir Welding. A rotating tool forges the cover to the base below the melting point on two China-Aerospace FSW machines - a flux-free, solid-state seal with no porosity path.

  • Finish & validation. The welded plate is fly-cut flat, then every assembly passes 100% airtightness leak detection and a two-stage flow-resistance test before CMM dimensional sign-off.

What we verify on every plate

  • 100% airtightness leak detection - four dedicated LCP leakage testers confirm every assembly.

  • Two-stage flow-resistance test - channels are clear and pressure-stable.

  • Hexagon CMM & 2.5D projector - dimensional verification to +/-0.001 mm against your drawing.

  • Airtight internal cleaning - residue-free channels ready for your coolant.

  • Salt-spray & Kett film/roughness - corrosion and surface-finish validation per batch.

Application Scenarios

A full cooling solution is the right call when thermal performance and reliability cannot be left to a catalog part:

  • High heat-flux electronics

  • Data center and server cooling

  • Medical imaging and diagnostic systems

  • Industrial power and automation

  • High-performance computing (HPC)

Customization and OEM Service

Send your heat load, envelope, coolant conditions and volume target. KingKa returns a CFD-backed channel design, material recommendation and validation plan, then manufactures the finished cold plates to that spec.

Procurement Advantages

For buyers, KingKa is a direct manufacturer with 16+ years of thermal-production experience, 50+ CNC centers (3-/4-/5-axis) and a stated 60,000+ parts per year, certified to ISO 9001:2015 and IATF 16949:2016. Engineering support includes in-house CFD thermal simulation and 3D design before tooling.

  • From drawing to volume. Send your STEP/CAD file and thermal budget for a CFD-backed proposal.

  • Flexible supply. Prototypes typically 7-15 days; production scheduled to your forecast.

  • One quality system. Prototype, pilot and production all carry 100% leak and CMM inspection.

  • R&D backing. Dongguan Nancheng R&D center supports design, validation and scale-up.
