Micro channel Cooling system | Kingka

This micro channel cooling system is chosen for the ambient, not for the wattage. A 250-400W load is modest, but it still has to be cooled when the cabinet air sits at 50 C - and at that ambient a fan-and-fin route has nothing left to give. Direct expansion through a micro channel cold plate does, because the refrigerant evaporates on the device instead of relying on air.

A miniature compressor drives R134A straight through the cold plate, which puts the phase change at the heat source and gives one of the highest transfer rates available in a package this size. A built-in control board sets the temperature and trims compressor speed to the load.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Construction and Materials

A miniature compressor, condenser and expansion path are packaged with a micro channel cold plate, and the circuit is evacuated, charged with R134A and sealed. The control board is set to the required temperature and drives compressor speed; the cold plate is machined for the device footprint and connects through a short refrigerant path.

Key Characteristics

Direct expansion

Refrigerant evaporates at the cold plate.

250-400 W capacity

Rated at 50 C ambient, not at 25 C.

High heat flux

50-100 W/cm2 at the cold plate.

Built-in setpoint

Board trims compressor speed to load.

Small cold plate

Fits the device, not the cabinet.

Technical Specifications

Base Material Miniature compressor with a micro channel cold plate; R134A refrigerant
Compressor 24V 10A or 48V 8A
Cooling Capacity 250-400 W
Refrigerant R134A, direct expansion
Heat Flux 50-100 W/cm2 at the cold plate
Ambient Works at 50 C ambient
Base CNC Tolerance Milling / drilling / tapping down to +/-0.005 mm
Dimensional Inspection Hexagon CMM +/-0.001 mm; 2.5D optical projector
Quality System ISO 9001:2015; IATF 16949:2016
Capacity 60,000+ thermal parts per year
Lead Time Samples typically 7-15 days; production scheduled to volume

Note: values above are KingKa build options and verified capability; final geometry, holes and finish are confirmed against your drawing.

Process and Quality Control

The number that matters is the ambient: capacity quoted at 25 C collapses at 50 C for any air-side system, while a direct-expansion loop keeps working because the phase change happens at the plate.

Process flow

  • Load and ambient review. Wattage, cabinet temperature and footprint define the cold plate and compressor.

  • Cold plate machining. Micro channel plate machined to the device outline.

  • Circuit assembly. Compressor, condenser and expansion path assembled and evacuated.

  • Charging. R134A charged to the specified weight and the circuit sealed.

  • Performance test. Capacity verified at 50 C ambient before packing.

What we verify on every batch

  • Capacity at 50 C - measured, not scaled from a 25 C figure.

  • Leak test - circuit pressure-checked after charging.

  • Setpoint control - stability across the operating range.

  • Power draw - compressor current at 24 V and 48 V options.

  • Cold plate flatness - checked before assembly.

Application Scenarios

Direct-expansion units are used where air cooling runs out:

  • High-density electronics

  • Chip cooling

  • Laser diode cooling

  • Medical instruments

  • Enclosed cabinets at high ambient

Customization and OEM Service

Send the heat load, the ambient inside the cabinet, the device footprint and the supply available. KingKa sizes the cold plate and the compressor, then sets the control range.

Procurement Advantages

KingKa is a direct manufacturer with 16+ years in thermal production, 50+ CNC centers, in-house skiving, FSW and vacuum brazing, certified to ISO 9001:2015 and IATF 16949:2016.

Give the cabinet ambient first - if it is over 45 C, a fan-and-fin sink cannot be sized to the load and this is the route.

  • One supplier for the whole assembly. Base, fins, pipes and hardware under one quality system.

  • CFD before tooling. Design review catches a bad layout before metal is cut.

  • Prototype to volume. Samples in 7-15 days, production scheduled to forecast.

Specifications:Compressor:24V 10A or 48V 8A

Cooling Capacity: 250-400W

Temperature setting: build-in setting

Heat Transfer Rates: 50-100W/CM2

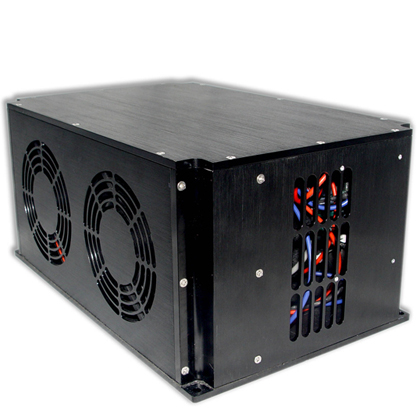

Small Size Cold Plate, Excellent Heat Transfer Rates

 Applications: High Density Heating Component, Chip Cooling, Laser Diode Cooling etc.
