Inverter Heat Sink

An inverter sink is usually a chassis part as much as a thermal part. This inverter heat sink is machined from one aluminum block: the top face carries flat pads for the power modules, the pipes run flattened between the pads, and a fin bank stands at one end where the fan or duct sits.

Because the pads are machined into the same block, module height and coplanarity are set by one set-up instead of by a stack of shims and a separate spreader.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

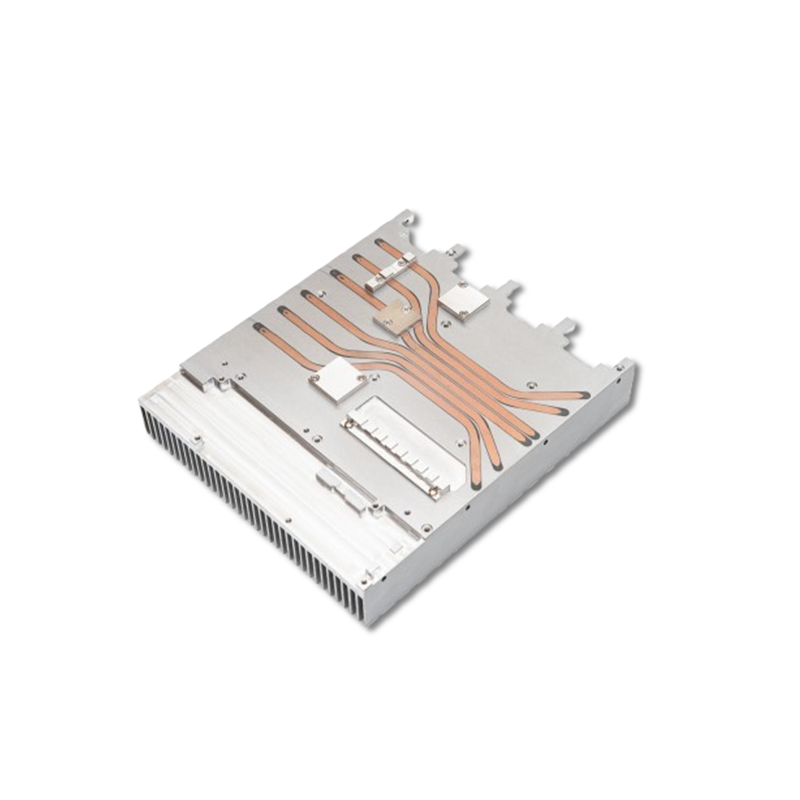

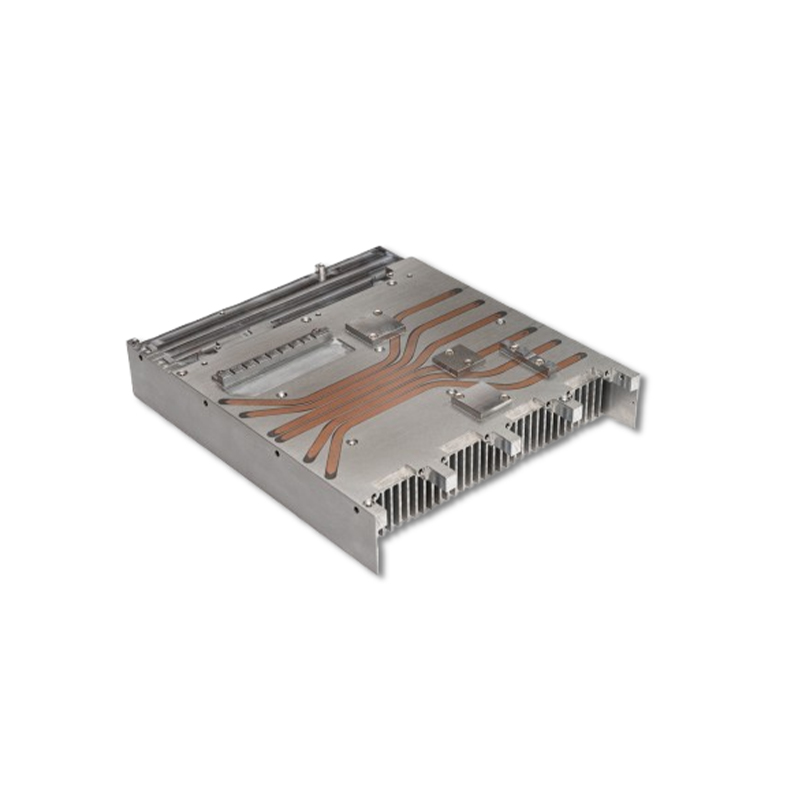

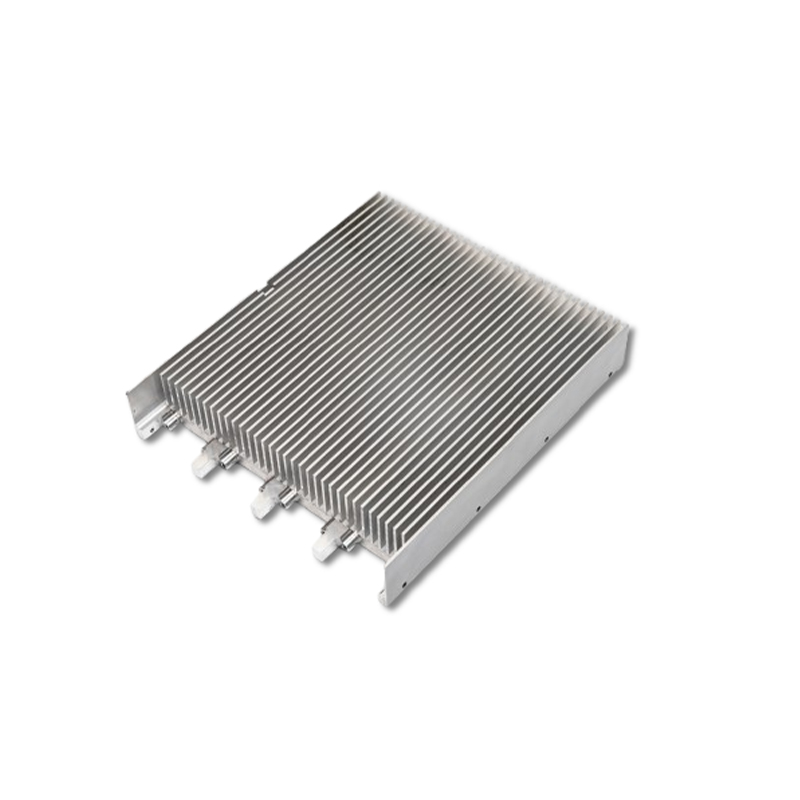

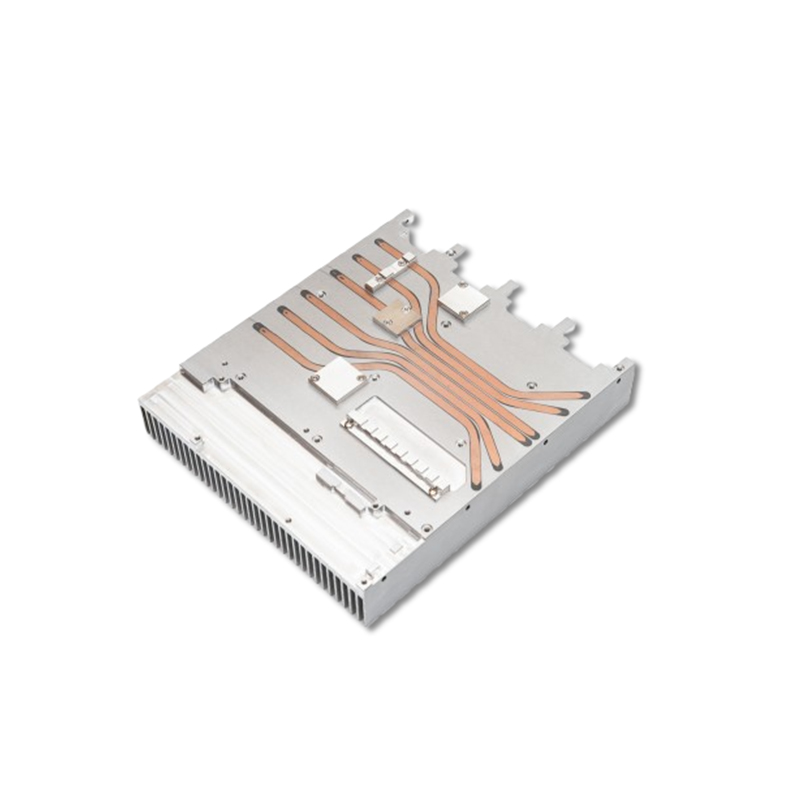

Inverter heat sink (1)Inverter heat sink (2)

Construction and Materials

An aluminum block is machined with module pads, mounting ears and pipe channels in one set-up, flattened copper pipes are pressed and soldered into the channels, and an extruded or skived fin bank is joined at one end. The pad faces are then fly-cut and checked for coplanarity.

Key Characteristics

Machined module pads

Height set in one set-up.

Flattened pipe runs

Pipes route between the pads.

Chassis-shaped base

Doubles as the mounting structure.

Fin bank at one end

Sits where the duct puts the air.

Coplanar pads

Checked after machining.

Technical Specifications

Base Material Aluminum chassis base; flattened copper heat pipes; aluminum fin bank
Base Aluminum chassis block with machined module pads
Pipes Flattened copper pipes soldered into channels
Fin Bank Extruded or skived, mounted at one end
Base CNC Tolerance Milling / drilling / tapping down to +/-0.005 mm
Dimensional Inspection Hexagon CMM +/-0.001 mm; 2.5D optical projector
Quality System ISO 9001:2015; IATF 16949:2016
Capacity 60,000+ thermal parts per year
Lead Time Samples typically 7-15 days; production scheduled to volume

Note: values above are KingKa build options and verified capability; final geometry, holes and finish are confirmed against your drawing.

Process and Quality Control

Pads and pipe channels are cut in the same set-up; machining them separately is what puts one module a few hundredths high and leaves the others carrying no load.

Process flow

  • Design & CFD. 3D layout with CFD review sizes the fin field, pipe route and base thickness to the load and airflow.

  • Base machining. Plate, pockets and pipe channels are milled on 50+ CNC centers to +/-0.005 mm.

  • Fin and pipe joining. Fins skived, stacked or extruded; pipes pressed and soldered; the stack joined to the base by the process the design calls for.

  • Face fly-cutting. Contact face machined flat after joining so the part sits true on the device.

  • Final inspection. Hexagon CMM (+/-0.001 mm) and 2.5D projector check critical features; 4-stage IQC / IPQC / FQC.

What we verify on every batch

  • Fin pitch and height - measured against the drawing before packing.

  • Base flatness - fly-cut face checked on the contact side.

  • CMM report - critical dimensions to +/-0.001 mm.

  • Joint inspection - solder or weld fillet checked along the stack feet.

  • Visual and batch audit - IQC / IPQC / FQC on every run.

Application Scenarios

Chassis-form sinks are used in inverter builds:

  • PV inverters

  • Motor drives

  • UPS modules

  • EV chargers

  • Servo amplifiers

Customization and OEM Service

Send the module outline, the pad heights, the fixing pattern and the air direction. KingKa machines the pads and channels together so coplanarity comes from one datum.

Procurement Advantages

KingKa is a direct manufacturer with 16+ years in thermal production, 50+ CNC centers, in-house skiving, FSW and vacuum brazing, certified to ISO 9001:2015 and IATF 16949:2016.

Module coplanarity and pad height decide the drawing - give both, plus the fixing holes, before the pipe route is fixed.

  • One supplier for the whole assembly. Base, fins, pipes and hardware under one quality system.

  • CFD before tooling. Design review catches a bad layout before metal is cut.

  • Prototype to volume. Samples in 7-15 days, production scheduled to forecast.
