IGBT Module Heat Sink

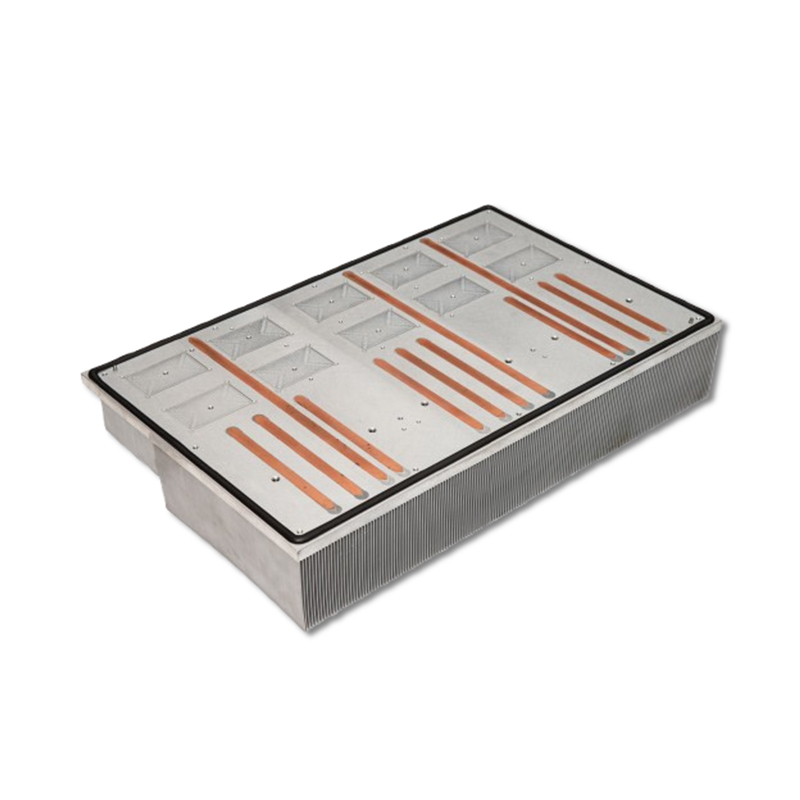

This IGBT module heat sink is built around several modules on one part: eight machined pockets locate the modules, a gasket groove runs around the perimeter for a sealed cover, and flattened pipes pass between the pockets to even out the load across the block.

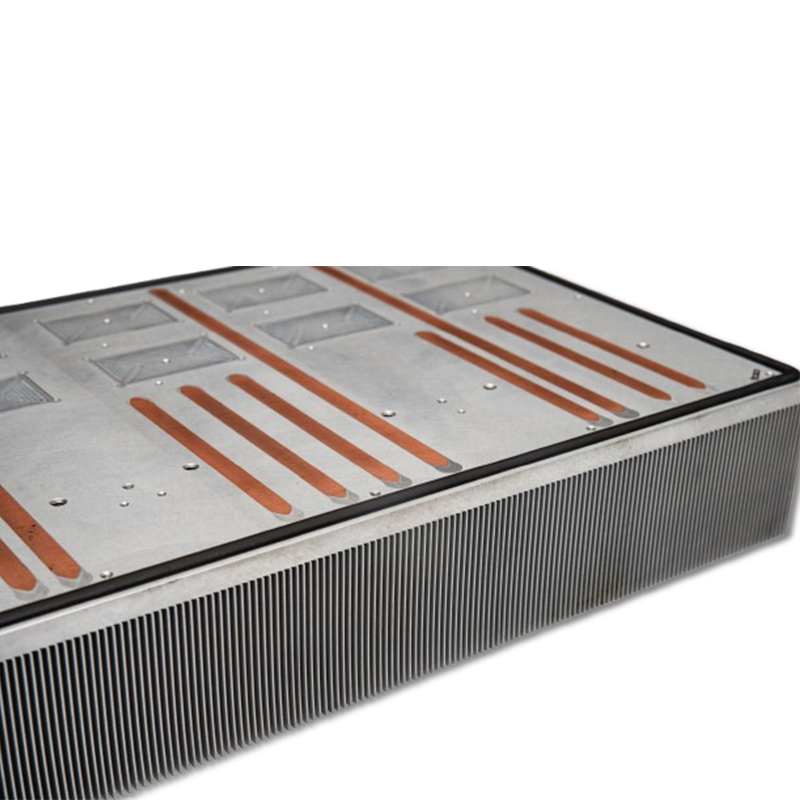

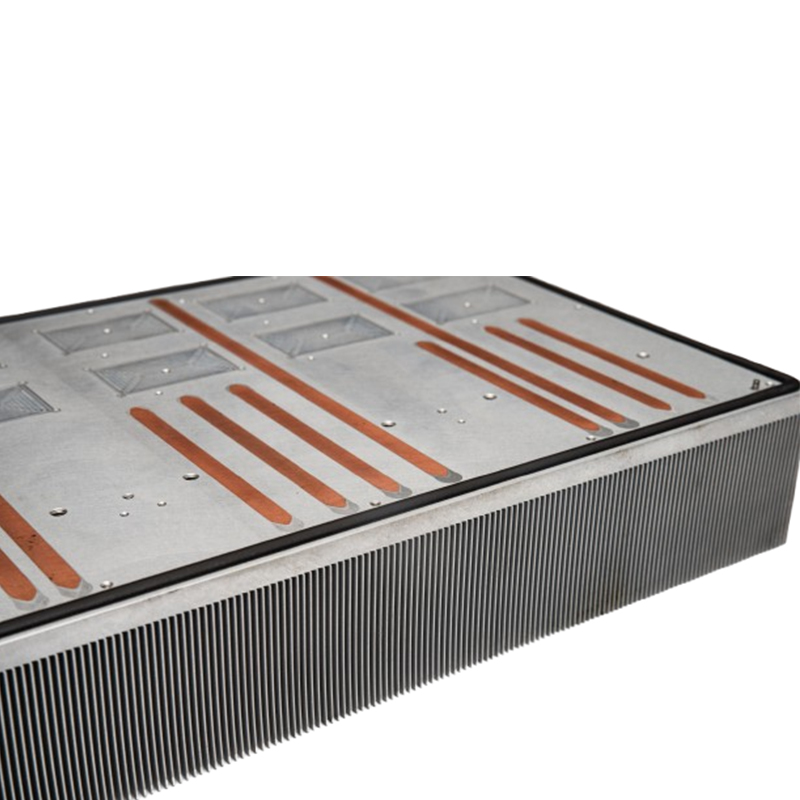

The fin field sits on the underside rather than as a tower, which keeps the assembly inside a cabinet depth and lets one duct serve the whole module bank.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

IGBT module heat sink (2)

Construction and Materials

A single aluminum block is machined with module pockets, a perimeter gasket groove, fixing holes and pipe channels; copper pipes are pressed and soldered flat into the channels; the underside is skived or milled into a dense fin field; pocket faces are then fly-cut and checked.

Key Characteristics

Eight module pockets

Locate each module in one part.

Perimeter gasket groove

Takes a sealed cover.

Pipes between pockets

Spread load across the bank.

Fins underneath

Keeps cabinet depth.

Fly-cut pockets

Coplanar module seating.

Technical Specifications

Base Material Aluminum body; embedded copper heat pipes; gasket groove
Pockets Machined module pockets (count per drawing)
Sealing Perimeter gasket groove
Pipes Flattened copper pipes between pockets
Fins Dense fin field on the underside
Base CNC Tolerance Milling / drilling / tapping down to +/-0.005 mm
Dimensional Inspection Hexagon CMM +/-0.001 mm; 2.5D optical projector
Quality System ISO 9001:2015; IATF 16949:2016
Capacity 60,000+ thermal parts per year
Lead Time Samples typically 7-15 days; production scheduled to volume

Note: values above are KingKa build options and verified capability; final geometry, holes and finish are confirmed against your drawing.

Process and Quality Control

The gasket groove and the pockets share a datum; if the groove is cut from a different face the cover no longer seals when the modules are clamped.

Process flow

  • Design & CFD. 3D layout with CFD review sizes the fin field, pipe route and base thickness to the load and airflow.

  • Base machining. Plate, pockets and pipe channels are milled on 50+ CNC centers to +/-0.005 mm.

  • Fin and pipe joining. Fins skived, stacked or extruded; pipes pressed and soldered; the stack joined to the base by the process the design calls for.

  • Face fly-cutting. Contact face machined flat after joining so the part sits true on the device.

  • Final inspection. Hexagon CMM (+/-0.001 mm) and 2.5D projector check critical features; 4-stage IQC / IPQC / FQC.

What we verify on every batch

  • Fin pitch and height - measured against the drawing before packing.

  • Base flatness - fly-cut face checked on the contact side.

  • CMM report - critical dimensions to +/-0.001 mm.

  • Joint inspection - solder or weld fillet checked along the stack feet.

  • Visual and batch audit - IQC / IPQC / FQC on every run.

Application Scenarios

Multi-module baseplates are used where several devices share one sink:

  • Traction inverters

  • Wind converters

  • Industrial drives

  • Welding power supplies

  • EV chargers

Customization and OEM Service

Send the module outlines, the pocket depths, the gasket section and the fixing pattern. KingKa machines pockets and groove in one set-up to hold coplanarity.

Procurement Advantages

KingKa is a direct manufacturer with 16+ years in thermal production, 50+ CNC centers, in-house skiving, FSW and vacuum brazing, certified to ISO 9001:2015 and IATF 16949:2016.

Give the module list with pocket depths and the gasket section - those two decide whether one set-up can hold the whole bank.

  • One supplier for the whole assembly. Base, fins, pipes and hardware under one quality system.

  • CFD before tooling. Design review catches a bad layout before metal is cut.

  • Prototype to volume. Samples in 7-15 days, production scheduled to forecast.
