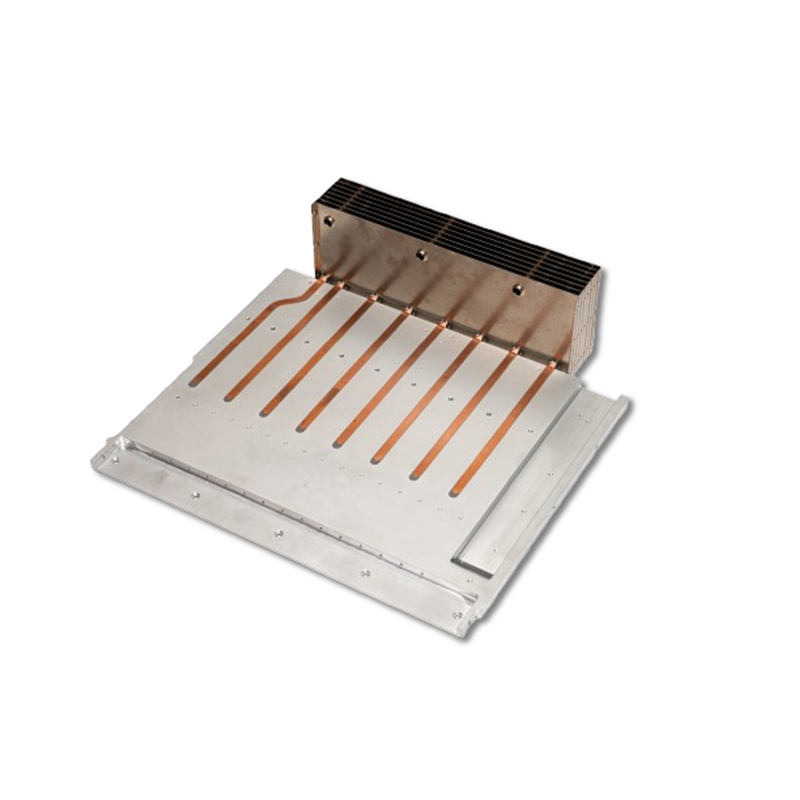

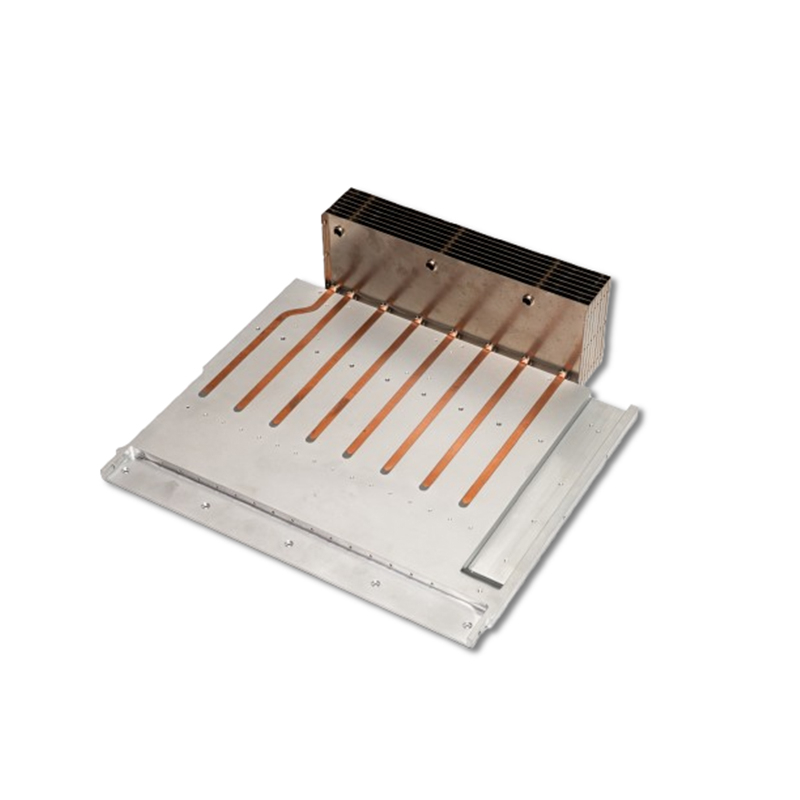

An aluminum plate is machined with a stepped edge, fixing holes and pipe channels, copper pipes are pressed and soldered flush into the channels, and a stacked-fin bank is joined along one edge. The mounting face is fly-cut flat after brazing and then inspected on the CMM.
Nothing stands under the emitter.
Spreading over a long, narrow source.
Air path kept off the optical side.
Locates the plate against the housing.

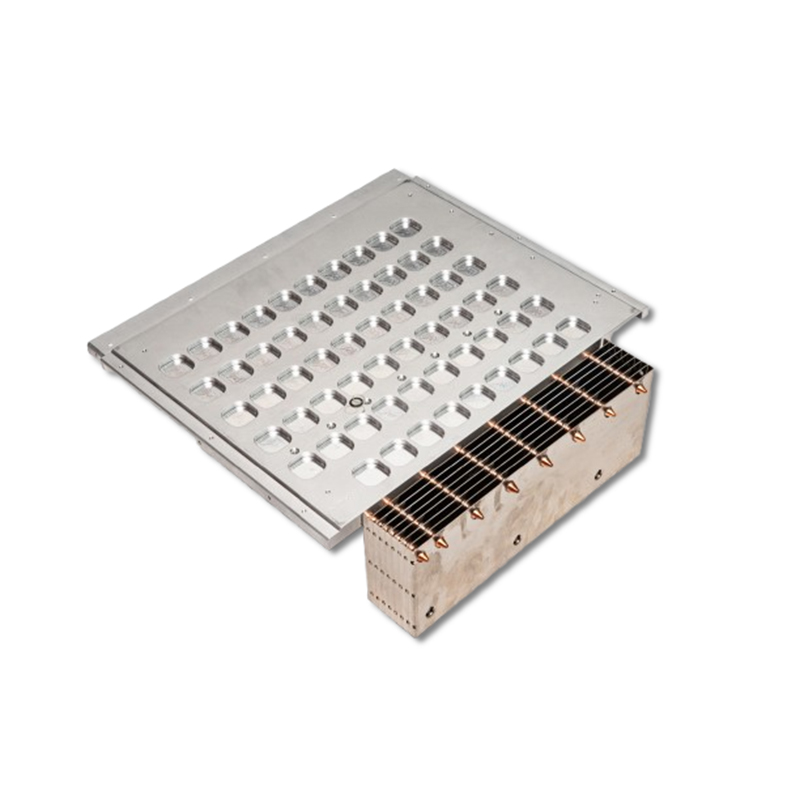

Face machined once the bank is on.
| Base Material | Aluminum plate with embedded copper heat pipes; fin bank on one edge |
|---|---|
| Build | Machined aluminum plate + flush embedded copper pipes + edge fin bank |
| Mounting Face | Flat, clear of the fin bank |
| Plate Edge | Stepped for location against the housing |
| Base CNC Tolerance | Milling / drilling / tapping down to +/-0.005 mm |
| Dimensional Inspection | Hexagon CMM +/-0.001 mm; 2.5D optical projector |
| Quality System | ISO 9001:2015; IATF 16949:2016 |
| Capacity | 60,000+ thermal parts per year |
| Lead Time | Samples typically 7-15 days; production scheduled to volume |
Note: values above are KingKa build options and verified capability; final geometry, holes and finish are confirmed against your drawing.
The pipes sit flush so the face can be fly-cut after joining; a pipe standing proud would force the cut below the plate datum and lose the flatness the optics need.
Design & CFD. 3D layout with CFD review sizes the fin field, pipe route and base thickness to the load and airflow.
Base machining. Plate, pockets and pipe channels are milled on 50+ CNC centers to +/-0.005 mm.
Fin and pipe joining. Fins skived, stacked or extruded; pipes pressed and soldered; the stack joined to the base by the process the design calls for.
Face fly-cutting. Contact face machined flat after joining so the part sits true on the device.
Final inspection. Hexagon CMM (+/-0.001 mm) and 2.5D projector check critical features; 4-stage IQC / IPQC / FQC.
Fin pitch and height - measured against the drawing before packing.
Base flatness - fly-cut face checked on the contact side.
CMM report - critical dimensions to +/-0.001 mm.
Joint inspection - solder or weld fillet checked along the stack feet.
Visual and batch audit - IQC / IPQC / FQC on every run.
Flat embedded-pipe plates are used under optical loads:
Laser diode bars
Fiber laser pump modules
Optical benches
Medical laser heads
Laser marking units
Send the emitter footprint, the plate outline and where the air can go. KingKa sets the pipe fan and the edge fin bank, then machines the plate for location and flatness.
KingKa is a direct manufacturer with 16+ years in thermal production, 50+ CNC centers, in-house skiving, FSW and vacuum brazing, certified to ISO 9001:2015 and IATF 16949:2016.
Optical alignment is the constraint, not the wattage - state the flatness and the reference edge first, then the pipe layout follows.
One supplier for the whole assembly. Base, fins, pipes and hardware under one quality system.
CFD before tooling. Design review catches a bad layout before metal is cut.
Prototype to volume. Samples in 7-15 days, production scheduled to forecast.
