Thermal Heat Pipe Heat Sinks

This thermal heat pipe heat sink carries heat from a small contact area up into a fin stack that is far larger than the source. Copper pipes are pressed and soldered into an aluminum cover plate, then bent so every U-return sits at one end, which keeps the other three sides clear of memory slots and enclosure walls.

It suits equipment where the die or module sits low and the airflow is above it: the plate works as the evaporator, the pipes move the load sideways, and the fin stack does the rejecting in the duct.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

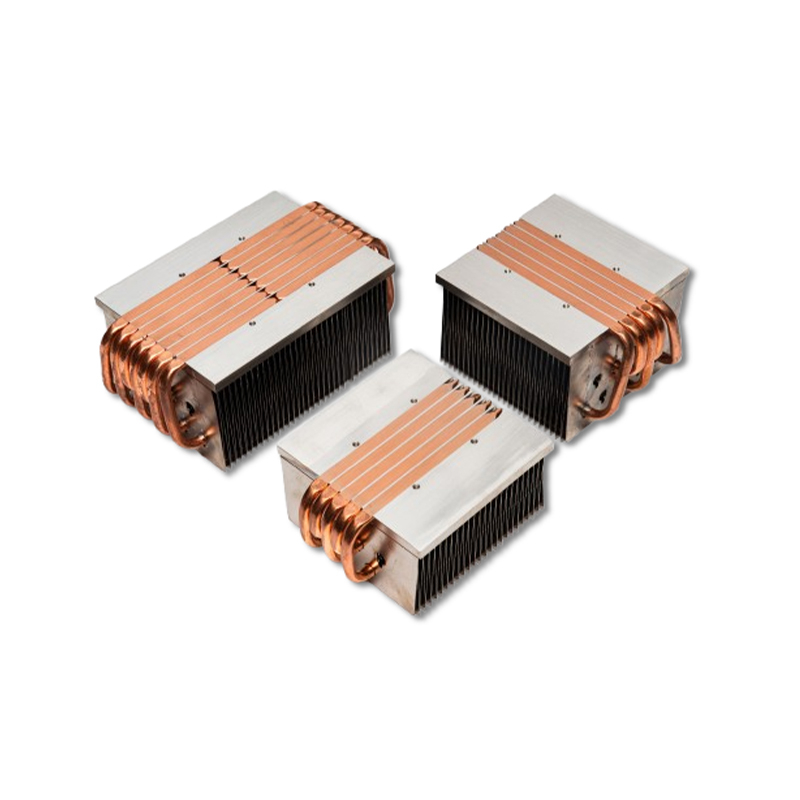

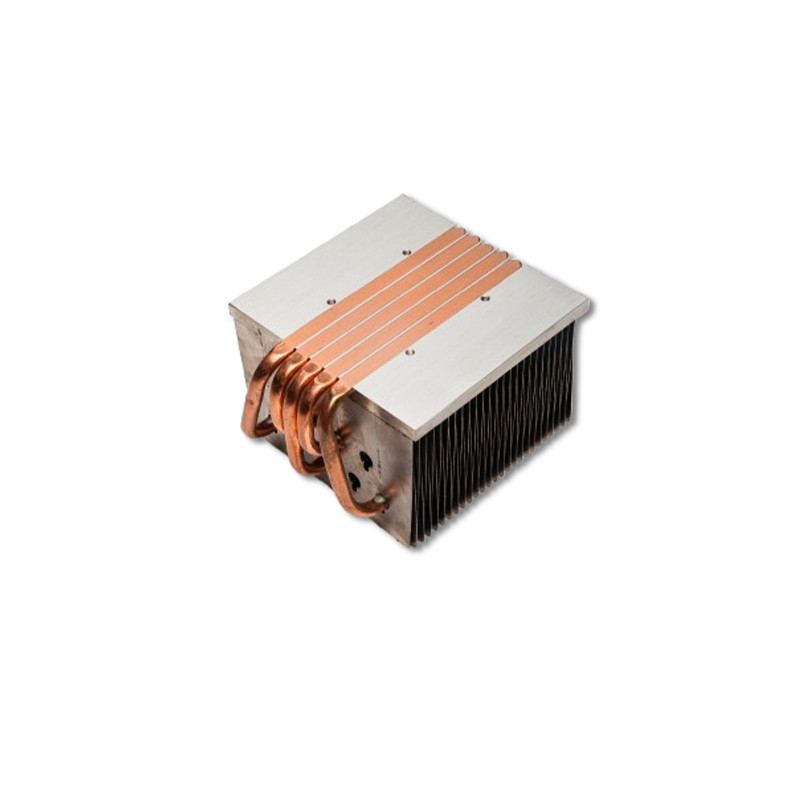

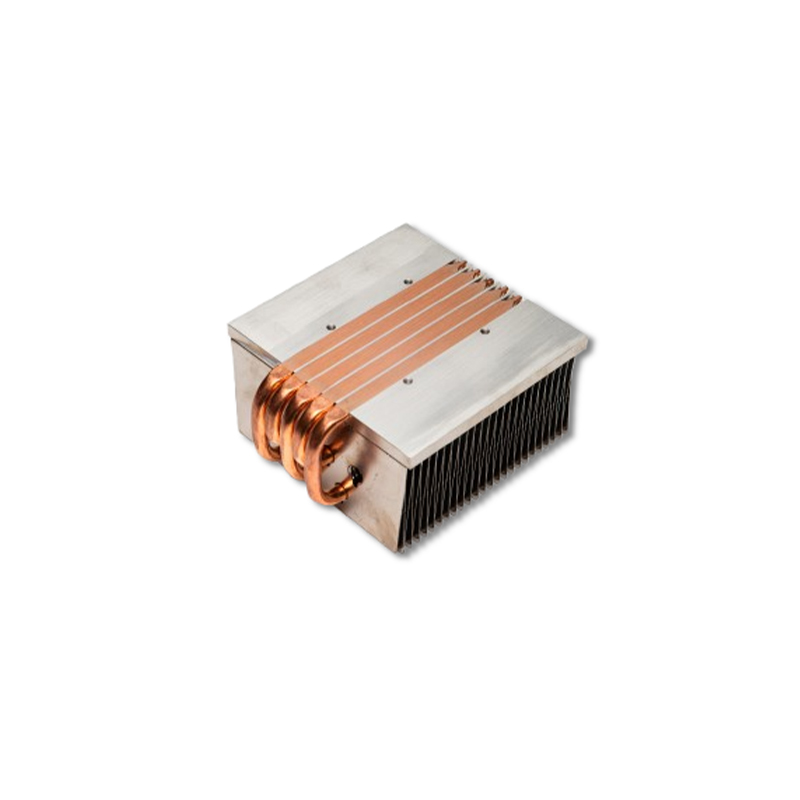

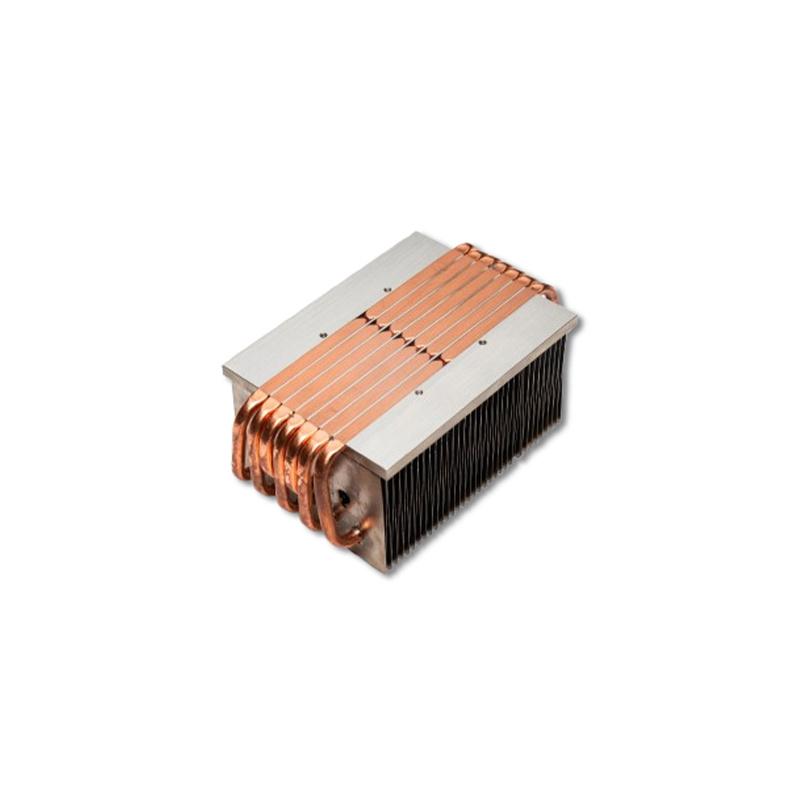

Thermal heat pipe heat sinks (2)Thermal heat pipe heat sinks (1)

Construction and Materials

A machined aluminum cover plate is grooved to the pipe layout, copper pipes are pressed in and soldered, and the assembly is joined to a stacked-fin block whose base is flat within the drawing tolerance. The whole part is then cleaned and the contact face is checked for flatness.

Key Characteristics

Pressed pipe joint

Pipes pressed and soldered into the plate.

U-bends grouped

All returns at one end, three sides clear.

Dense fin stack

High fin count in a short height.

Screw-fixed plate

Corner holes take the fixing screws.

Flat contact face

Checked after assembly.

Technical Specifications

Base Material Aluminum base plate and fin stack; copper heat pipes
Build Aluminum cover plate + pressed copper heat pipes + fin stack
Pipe Layout U-bends grouped at one end
Mounting Corner screw holes in the cover plate
Base CNC Tolerance Milling / drilling / tapping down to +/-0.005 mm
Dimensional Inspection Hexagon CMM +/-0.001 mm; 2.5D optical projector
Quality System ISO 9001:2015; IATF 16949:2016
Capacity 60,000+ thermal parts per year
Lead Time Samples typically 7-15 days; production scheduled to volume

Note: values above are KingKa build options and verified capability; final geometry, holes and finish are confirmed against your drawing.

Process and Quality Control

The pipe groove depth sets how far the pipe sits below the plate face, so grooves are cut before pressing; if the pipe stands proud the contact face cannot be fly-cut flat afterwards.

Process flow

  • Design & CFD. 3D layout with CFD review sizes the fin field, pipe route and base thickness to the load and airflow.

  • Base machining. Plate, pockets and pipe channels are milled on 50+ CNC centers to +/-0.005 mm.

  • Fin and pipe joining. Fins skived, stacked or extruded; pipes pressed and soldered; the stack joined to the base by the process the design calls for.

  • Face fly-cutting. Contact face machined flat after joining so the part sits true on the device.

  • Final inspection. Hexagon CMM (+/-0.001 mm) and 2.5D projector check critical features; 4-stage IQC / IPQC / FQC.

What we verify on every batch

  • Fin pitch and height - measured against the drawing before packing.

  • Base flatness - fly-cut face checked on the contact side.

  • CMM report - critical dimensions to +/-0.001 mm.

  • Joint inspection - solder or weld fillet checked along the stack feet.

  • Visual and batch audit - IQC / IPQC / FQC on every run.

Application Scenarios

Pressed-pipe assemblies are used where the source sits low:

  • Telecom base units

  • Industrial control boxes

  • Power modules

  • Test equipment

  • Compact servers

Customization and OEM Service

Send the source footprint, the height available above the board and the airflow direction. KingKa lays out the pipe runs, then machines the plate and bends the pipes to your envelope.

Procurement Advantages

KingKa is a direct manufacturer with 16+ years in thermal production, 50+ CNC centers, in-house skiving, FSW and vacuum brazing, certified to ISO 9001:2015 and IATF 16949:2016.

Height is the first constraint here - give the clear height under the cover and the pipe route follows from it, not the other way round.

  • One supplier for the whole assembly. Base, fins, pipes and hardware under one quality system.

  • CFD before tooling. Design review catches a bad layout before metal is cut.

  • Prototype to volume. Samples in 7-15 days, production scheduled to forecast.
