Heat Pipe Skiving Fin Heat Sink

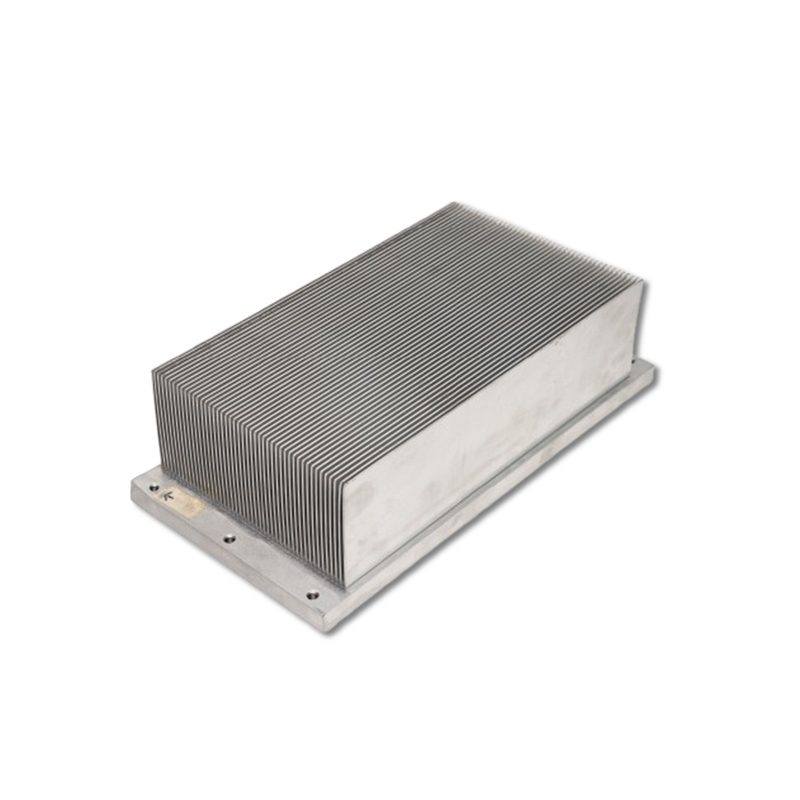

This heat pipe skiving fin heat sink combines two things that are usually separate: fins skived out of the solid so no joint sits between fin and base, and a pipe channel inside the base that moves heat out to the fin field. From outside only the flanged base and the fin block are visible.

The flange is part of the same part, so the sink bolts down through its own base instead of through a bracket - one less interface under the heat path, and the fin field stays clear for the duct.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Construction and Materials

An aluminum block is machined with the flange, fixing holes and an internal pipe channel, the pipe is installed and the block is closed and machined, then the fin field is skived out of the solid and the contact face is fly-cut flat.

Key Characteristics

Skived fin field

Fins cut from the solid, no bond line.

Pipe channel inside

Heat moved out from the base.

Integrated flange

Bolts down without a bracket.

Dense pitch

Fin pitch controlled to +/-0.05 mm.

Fly-cut face

Flat contact after skiving.

Technical Specifications

Base Material Aluminum skived fins on a flanged base; pipe channel inside the base
Fins Skived from solid block, monolithic with base
Pipe Channel inside the base (not visible in the photo)
Base Flanged with through fixing holes
Base CNC Tolerance Milling / drilling / tapping down to +/-0.005 mm
Dimensional Inspection Hexagon CMM +/-0.001 mm; 2.5D optical projector
Quality System ISO 9001:2015; IATF 16949:2016
Capacity 60,000+ thermal parts per year
Lead Time Samples typically 7-15 days; production scheduled to volume

Note: values above are KingKa build options and verified capability; final geometry, holes and finish are confirmed against your drawing.

Process and Quality Control

The fin field is skived after the base is machined, so the flange holes and the fin direction share one datum; skiving first would let the base move under the cut.

Process flow

  • Design & CFD. 3D layout with CFD review sizes the fin field, pipe route and base thickness to the load and airflow.

  • Base machining. Plate, pockets and pipe channels are milled on 50+ CNC centers to +/-0.005 mm.

  • Fin and pipe joining. Fins skived, stacked or extruded; pipes pressed and soldered; the stack joined to the base by the process the design calls for.

  • Face fly-cutting. Contact face machined flat after joining so the part sits true on the device.

  • Final inspection. Hexagon CMM (+/-0.001 mm) and 2.5D projector check critical features; 4-stage IQC / IPQC / FQC.

What we verify on every batch

  • Fin pitch and height - measured against the drawing before packing.

  • Base flatness - fly-cut face checked on the contact side.

  • CMM report - critical dimensions to +/-0.001 mm.

  • Joint inspection - solder or weld fillet checked along the stack feet.

  • Visual and batch audit - IQC / IPQC / FQC on every run.

Application Scenarios

Flanged skived sinks are used where the sink is also the mount:

  • Power modules

  • Telecom outdoor units

  • Inverters

  • Laser drivers

  • Industrial controllers

Customization and OEM Service

Send the flange outline, hole pattern, fin height and the pipe route. KingKa machines the flange and channel first, then skives the fin field.

Procurement Advantages

KingKa is a direct manufacturer with 16+ years in thermal production, 50+ CNC centers, in-house skiving, FSW and vacuum brazing, certified to ISO 9001:2015 and IATF 16949:2016.

Flange and hole pattern come first here - they decide the datum, and the fin field is cut from it.

  • One supplier for the whole assembly. Base, fins, pipes and hardware under one quality system.

  • CFD before tooling. Design review catches a bad layout before metal is cut.

  • Prototype to volume. Samples in 7-15 days, production scheduled to forecast.
