High Power Heat Pipe Heat Sink

High power is a routing problem before it is a fin problem: at a few hundred watts the load has to leave the die through a flat plate, spread across several pipes, and only then meet air. This high power heat pipe heat sink is built in that order - plate first, pipe count second, fin stack last.

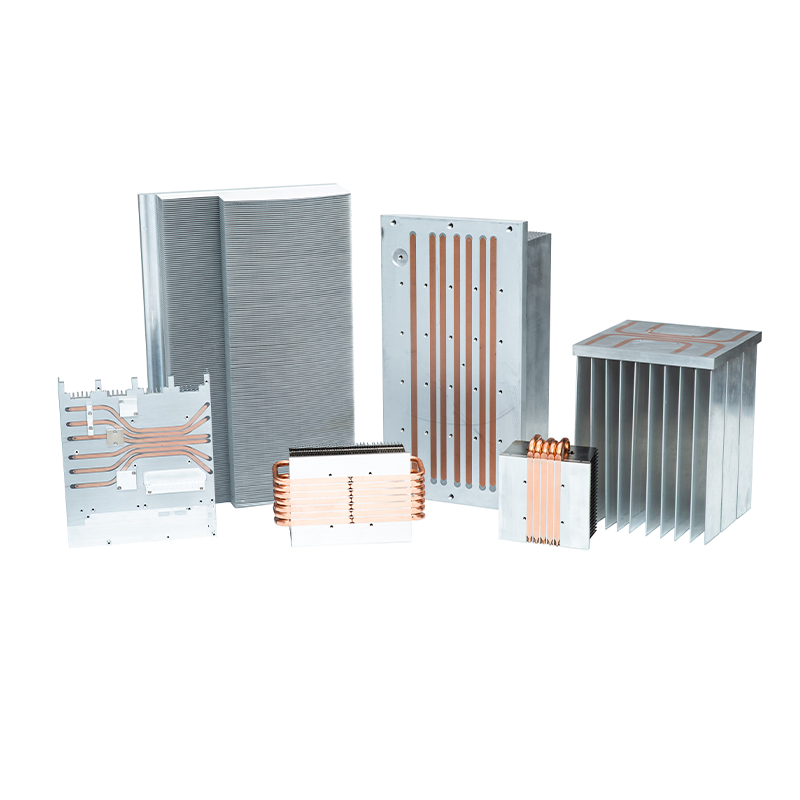

The family covers three builds for the same job: a flat plate with pipes embedded and a fin bank on one edge, a tall fin tower with pipes rising into it, and a machined block with a pipe loop pressed into the top. Which one applies depends on where the air is and how much height the enclosure allows.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Construction and Materials

An aluminum or copper plate is machined with pipe channels, copper pipes are pressed and soldered in, and the fin stack - skived, stacked or extruded - is joined to the plate or built onto it. The contact face is machined flat after assembly and the part is cleaned and inspected.

Key Characteristics

Built from the watt density

Plate, pipes, then fins.

Three build types

Flat plate, fin tower or pipe-ringed block.

Embedded pipe runs

Pipes pressed into machined channels.

Matched fin stack

Skived, stacked or extruded by height.

Flat after assembly

Contact face machined last.

Technical Specifications

Base Material Aluminum and copper; heat pipes or vapour chamber as required
Builds Embedded-pipe plate / fin tower / pipe-ringed block
Pipe Route Set by the source layout and airflow
Fin Stack Skived, stacked or extruded depending on height
Base CNC Tolerance Milling / drilling / tapping down to +/-0.005 mm
Dimensional Inspection Hexagon CMM +/-0.001 mm; 2.5D optical projector
Quality System ISO 9001:2015; IATF 16949:2016
Capacity 60,000+ thermal parts per year
Lead Time Samples typically 7-15 days; production scheduled to volume

Note: values above are KingKa build options and verified capability; final geometry, holes and finish are confirmed against your drawing.

Process and Quality Control

Pipe count is fixed by the spreading requirement, not by the fin area; adding fins to an under-piped plate raises the case temperature instead of lowering it.

Process flow

  • Design & CFD. 3D layout with CFD review sizes the fin field, pipe route and base thickness to the load and airflow.

  • Base machining. Plate, pockets and pipe channels are milled on 50+ CNC centers to +/-0.005 mm.

  • Fin and pipe joining. Fins skived, stacked or extruded; pipes pressed and soldered; the stack joined to the base by the process the design calls for.

  • Face fly-cutting. Contact face machined flat after joining so the part sits true on the device.

  • Final inspection. Hexagon CMM (+/-0.001 mm) and 2.5D projector check critical features; 4-stage IQC / IPQC / FQC.

What we verify on every batch

  • Fin pitch and height - measured against the drawing before packing.

  • Base flatness - fly-cut face checked on the contact side.

  • CMM report - critical dimensions to +/-0.001 mm.

  • Joint inspection - solder or weld fillet checked along the stack feet.

  • Visual and batch audit - IQC / IPQC / FQC on every run.

Application Scenarios

High-wattage assemblies are chosen by build type:

  • Industrial power supplies

  • Traction and inverter modules

  • Laser diode stacks

  • High-bay LED drivers

  • Rail and marine electronics

Customization and OEM Service

Send the load, the source footprint, the available height and the airflow direction. KingKa picks the build type first, then sets pipe count and fin density.

Procurement Advantages

KingKa is a direct manufacturer with 16+ years in thermal production, 50+ CNC centers, in-house skiving, FSW and vacuum brazing, certified to ISO 9001:2015 and IATF 16949:2016.

Tell us the wattage and the footprint together - one without the other cannot size the pipe count, and that is the number that decides the build.

  • One supplier for the whole assembly. Base, fins, pipes and hardware under one quality system.

  • CFD before tooling. Design review catches a bad layout before metal is cut.

  • Prototype to volume. Samples in 7-15 days, production scheduled to forecast.
