Cooling Heat Sink

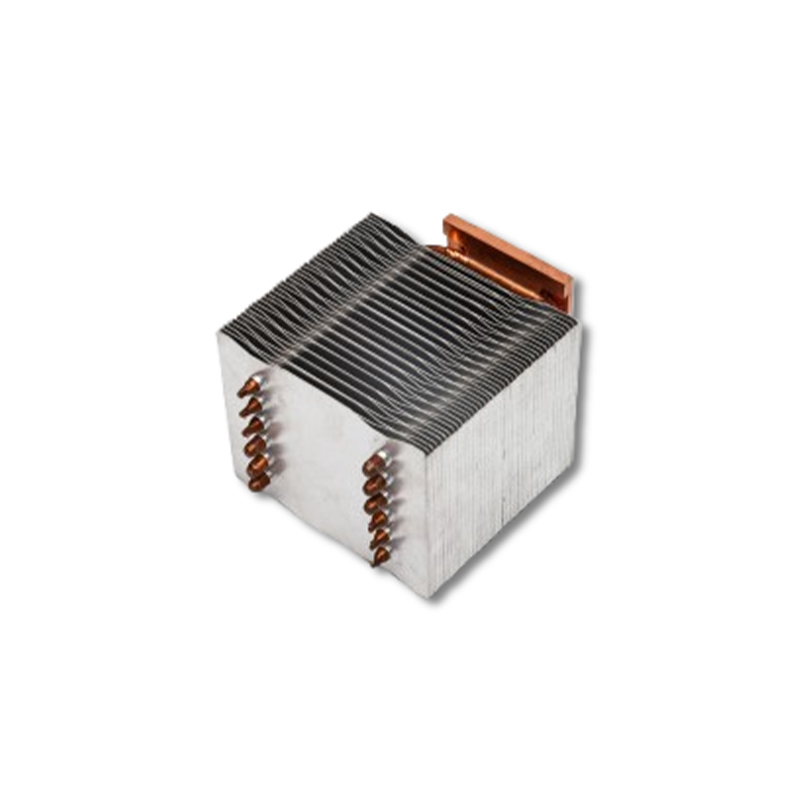

This cooling heat sink uses a copper plate as the evaporator and a stacked-fin block as the condenser: the pipes leave the plate surface, fold down, and enter the fin stack from the side, so the stack can be shorter than a tower while keeping a high fin count.

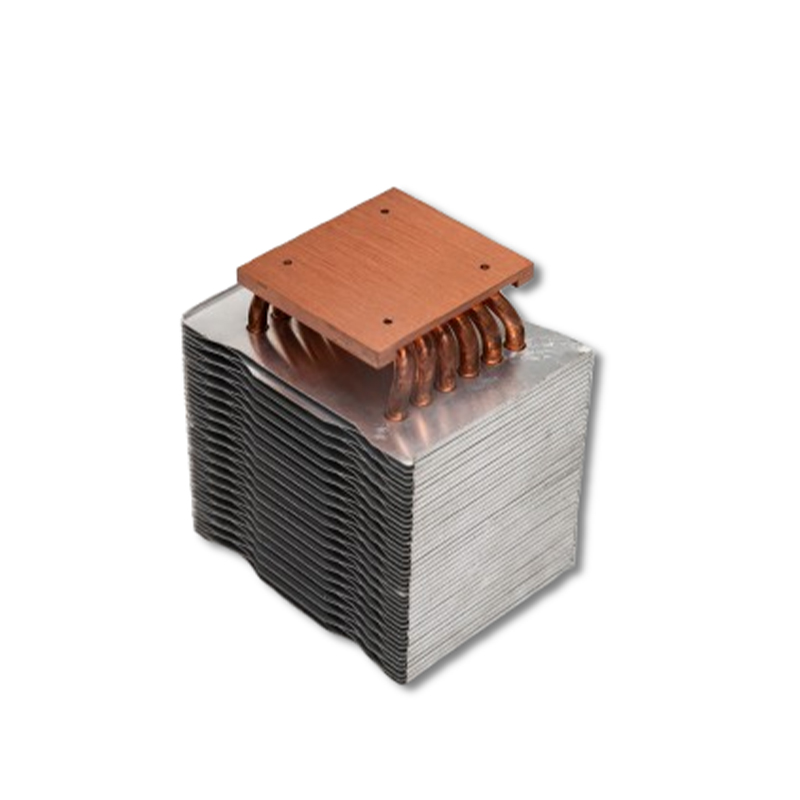

The four corner holes in the copper plate take the fixing screws directly, which means no separate clamp frame and no extra interface between the plate and the device.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Cooling heat sink (3)Cooling heat sink (1)

Construction and Materials

A copper plate is machined for the pipe pattern and drilled at the corners, copper pipes are bent to the route and soldered in, and the pipe ends are tied into a stacked-fin block bonded to a base. The plate face is then machined flat and the assembly is cleaned before packing.

Key Characteristics

Copper evaporator plate

Direct contact under the device.

Pipes enter sideways

Short stack with dense fins.

Stacked fin block

High fin count per unit height.

Four-hole fixing

Screwed through the plate itself.

No clamp frame

One less interface in the stack.

Technical Specifications

Base Material Copper base plate; aluminum stacked fins; copper heat pipes
Build Copper plate + bent copper pipes + stacked fin block
Fixing Four corner holes in the copper plate
Pipe Entry Pipes enter the fin stack from the side
Base CNC Tolerance Milling / drilling / tapping down to +/-0.005 mm
Dimensional Inspection Hexagon CMM +/-0.001 mm; 2.5D optical projector
Quality System ISO 9001:2015; IATF 16949:2016
Capacity 60,000+ thermal parts per year
Lead Time Samples typically 7-15 days; production scheduled to volume

Note: values above are KingKa build options and verified capability; final geometry, holes and finish are confirmed against your drawing.

Process and Quality Control

Pipes enter the stack from the side, so the stack is built around the pipe run - the frame is assembled after the pipes are soldered, not before.

Process flow

  • Design & CFD. 3D layout with CFD review sizes the fin field, pipe route and base thickness to the load and airflow.

  • Base machining. Plate, pockets and pipe channels are milled on 50+ CNC centers to +/-0.005 mm.

  • Fin and pipe joining. Fins skived, stacked or extruded; pipes pressed and soldered; the stack joined to the base by the process the design calls for.

  • Face fly-cutting. Contact face machined flat after joining so the part sits true on the device.

  • Final inspection. Hexagon CMM (+/-0.001 mm) and 2.5D projector check critical features; 4-stage IQC / IPQC / FQC.

What we verify on every batch

  • Fin pitch and height - measured against the drawing before packing.

  • Base flatness - fly-cut face checked on the contact side.

  • CMM report - critical dimensions to +/-0.001 mm.

  • Joint inspection - solder or weld fillet checked along the stack feet.

  • Visual and batch audit - IQC / IPQC / FQC on every run.

Application Scenarios

Short stacked assemblies suit low-profile boards:

  • Graphics cards

  • Compact power supplies

  • Network appliances

  • Medical instruments

  • Embedded PCs

Customization and OEM Service

Send the device outline, the plate thickness and the space around the stack. KingKa sets the pipe route and the fin count, then machines the plate to your drawing.

Procurement Advantages

KingKa is a direct manufacturer with 16+ years in thermal production, 50+ CNC centers, in-house skiving, FSW and vacuum brazing, certified to ISO 9001:2015 and IATF 16949:2016.

If the board is low-profile, say so first: a sideways pipe entry buys height, but it also sets where the stack can sit.

  • One supplier for the whole assembly. Base, fins, pipes and hardware under one quality system.

  • CFD before tooling. Design review catches a bad layout before metal is cut.

  • Prototype to volume. Samples in 7-15 days, production scheduled to forecast.
